AdjustingtheHeightofCut
1.Raisethedecktothetransportposition(4.5inch
(114mm)cutheight)bypushingthefootactuated
leverforward(Figure16).Thespringloaded
transportpinwillautomaticallyengageandwillclick
intoplace.

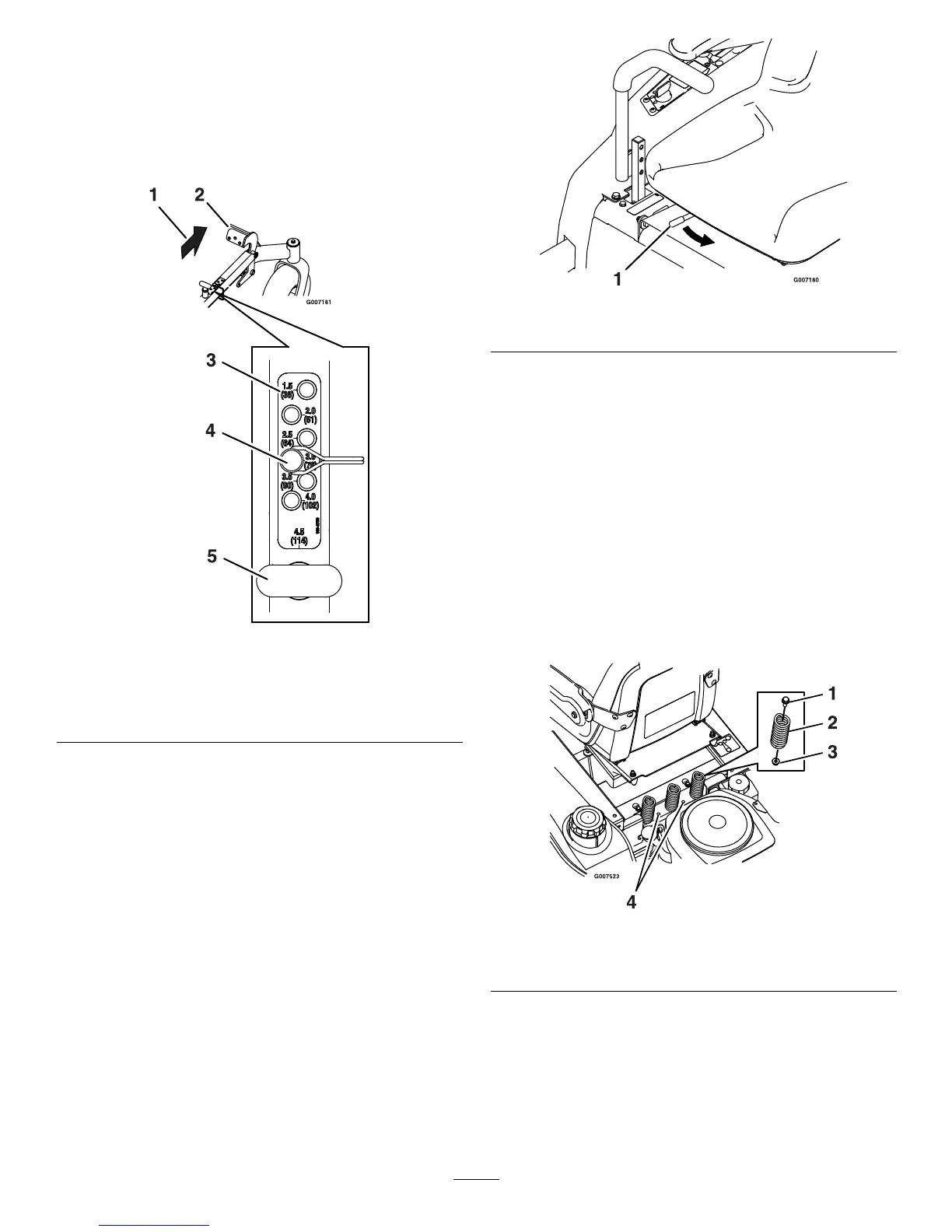

Figure16
1.Pushforward
4.Heightadjusterpin
2.Footactuated
height-of-cutlever
5.Transportreleasehandle
3.Height-of-cutpositions
2.Movethedeckheightadjusterpintothedesired
cutheight.
3.Pushthefootleverforward,pullthetransport
releasehandleupandletthedecklowerdowntothe
predeterminedcutheightbyslowlydecreasingfoot
pressureallowingthefootlevertotravelrearward.
PositioningtheSeat
Theseatcanmoveforwardandbackward.Positionthe
seatwhereyouhavethebestcontrolofthemachine
andaremostcomfortable.
1.Pushtheadjustmentlevertowardsthecenter
ofthemachinetoreleasetheseatadjustertrack
(Figure17).
Figure17
1.Adjustmentlever
2.Movetheseattothedesiredpositionandrelease
thelevertolockinthatposition.
ChangingtheSeatRide
Suspension
Thenumberofseatspringscanbechangedto
maximizeridercomfort.Morespringsshouldbeused
withheavieroperatorsandonroughterrain.Fewer
springsshouldbeusedwithlighteroperatorsandwhen
mowingsmooth,wellestablishedlawns.Alwayskeep
thenumberofspringsontheleftandrightsidethe
samewhenaddingandremovingsprings.
Figure18
1.Bolt3.Nut
2.Spring
4.Additionalmountingholes
Uptovespringscanbesecuredtotheseatboxwitha
nutandbolt,seeFigure18.
RefertoyourPartsManualforspringandhardware
partnumbers.
