CheckingandAdjustingthe

AlternatorBelt

ServiceInterval:Aftertherst50hours—Checkand

adjustthealternatorbelt.

Every250hours—Checkandadjustthe

alternatorbelt.

1.Measurethebeltdeectionbyapplying98N

(22lbf)tothebeltbetweenthefanpulleyand

alternatorpulley(Figure89).

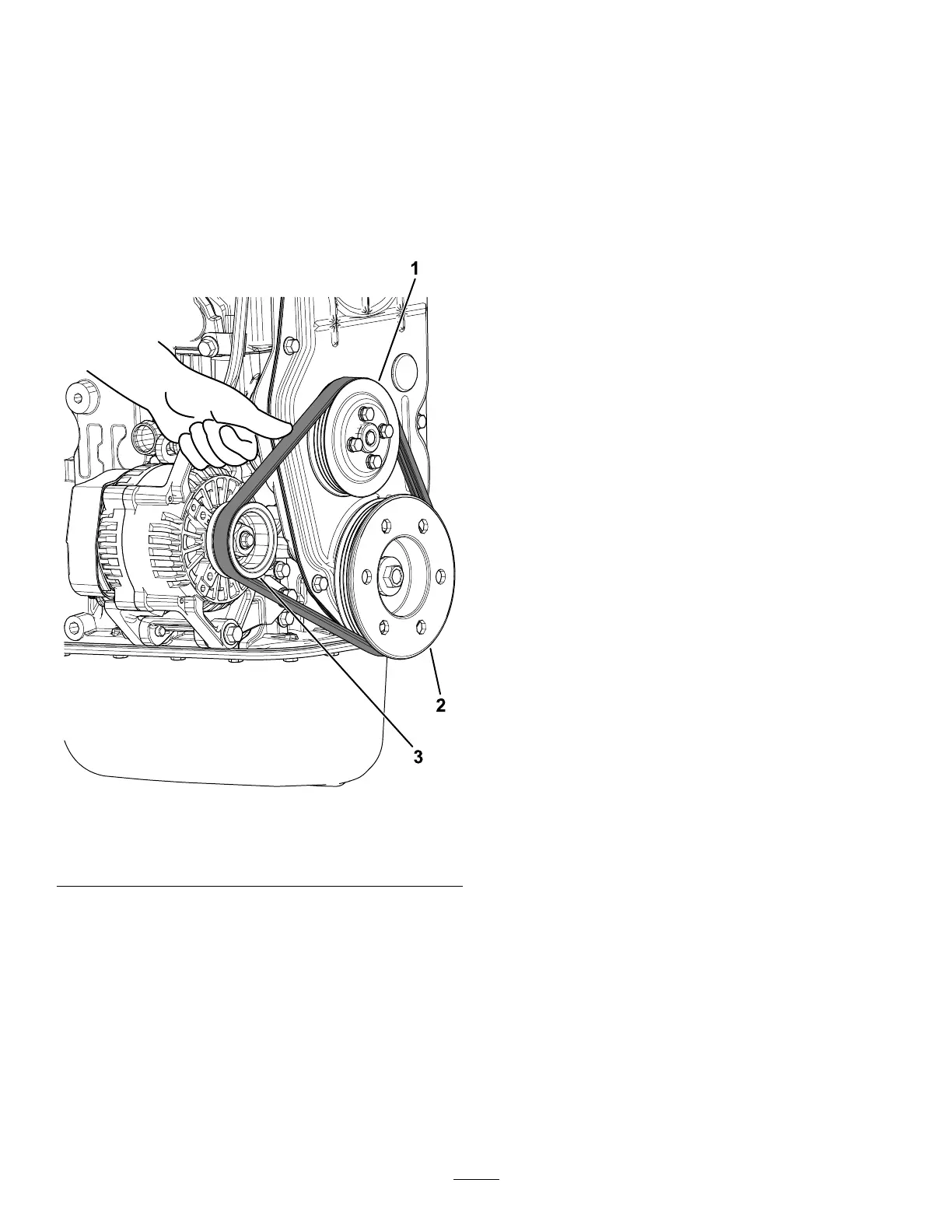

g367255

Figure89

1.Fanpulley3.Alternatorpulley

2.Crankshaftpulley

2.Ifneeded,adjustthebelttensionasfollows:

3.Loosentheupperalternatoradjustingbolt.

4.Adjustthealternatoruntilthebeltistensioned

correctly.

Youmayuseaprybartoassistinthisstep.

5.Tightentheupperalternatoradjustingbolt.

6.Measurethebeltdeectionbyapplying98N

(22lbf)tothebeltbetweenthefanpulleyand

alternatorpulley(Figure89).

7.Ifthebelttensionisnotcorrect,repeatsteps3

through6.
