Toro Workman UTX User Manual

CheckingtheFront
DifferentialOilLevel
ServiceInterval:Every500hours—Checkthefront
differentialoillevel.
FluidType:80W-90GearOil
1.Parkthemachineonalevelsurface.
2.ShiftthetransmissionlevertotheP(PARK)
position.
3.Shutofftheengineandremovethekey.
4.Removethecheckplugonthefrontdifferential
(Figure107).
Note:Theoillevelshouldbeevenwiththe
bottomofthecheckplug.
5.Iftheoillevelislow,youmayaddthespecied
oilthroughthecheckplugopening(Figure107).
6.Replacethecheckplugandtorqueitto15to
25N∙m(11to18ft-lb).

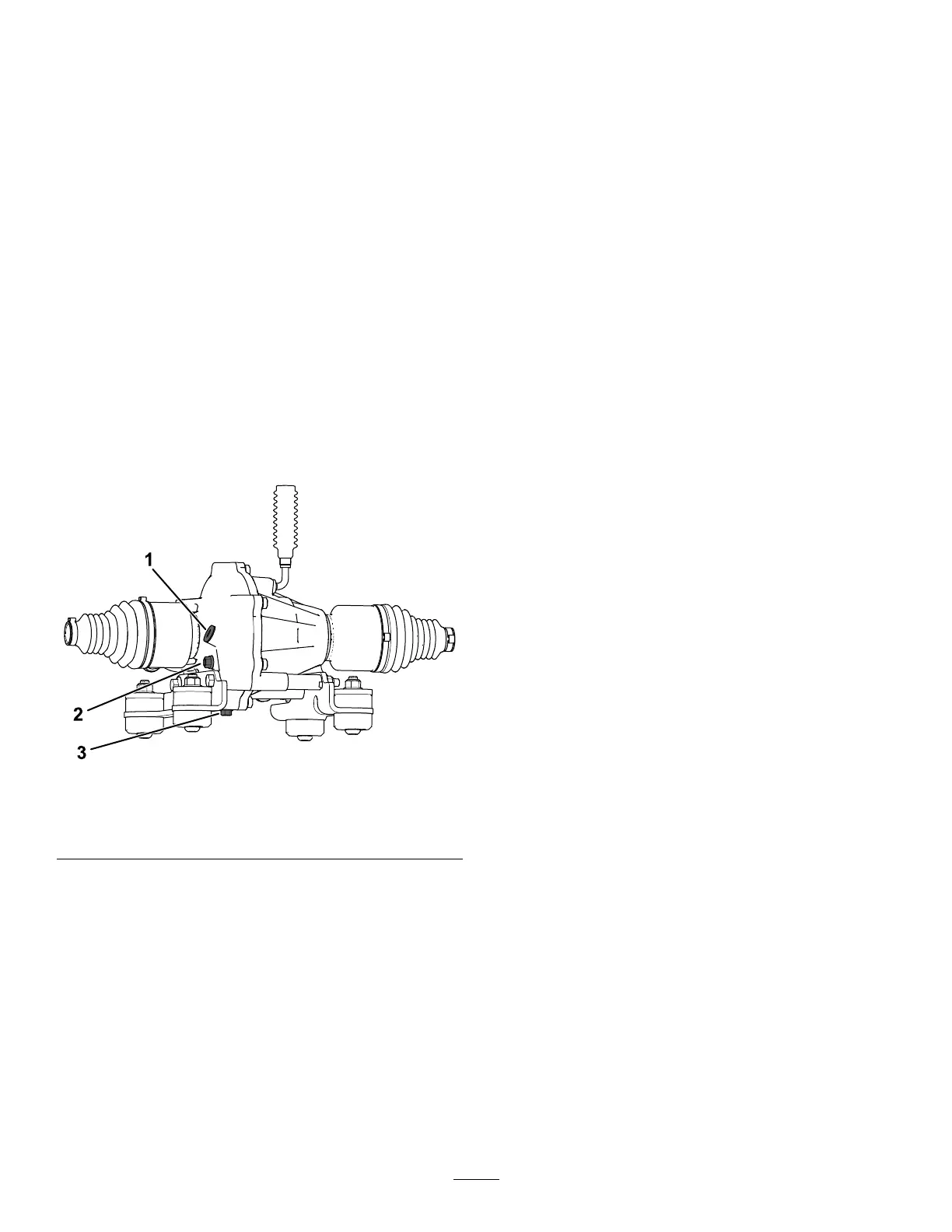

g399038
Figure107
1.Fillplug3.Drainplug
2.Checkplug
ChangingtheFront
DifferentialOil
ServiceInterval:Every1,000hours—Changethe
frontdifferentialoil.
FluidType:80W-90GearOil
FluidCapacity:0.3L(0.32USqt)
1.Parkthemachineonalevelsurface.
2.ShiftthetransmissionlevertotheP(PARK)
position.
3.Shutofftheengineandremovethekey.
4.Alignadrainpanunderthedrainplug(Figure
107).
5.Removethellplug(Figure107).
Note:Retainthellplugandsealforinstallation
instep9.
6.Removethedrainplugandallowtheuidto
draincompletely(Figure107).
Note:Retainthedrainplugforinstallationin
step7.
7.Installthedrainplugandtorqueitto15to25
N∙m(11to18ft-lb).
8.Fillthefrontdifferentialwiththespecieduid
andcapacity.
9.Installthellplugandtorqueitto15to25N∙m
(11to18ft-lb).
10.Allowtheoiltosettleforapproximately5
minutes,thencheckthelevel;Checkingthe
FrontDifferentialOilLevel(page97).
97
