Toro Workman UTX User Manual

ServicingtheFuses

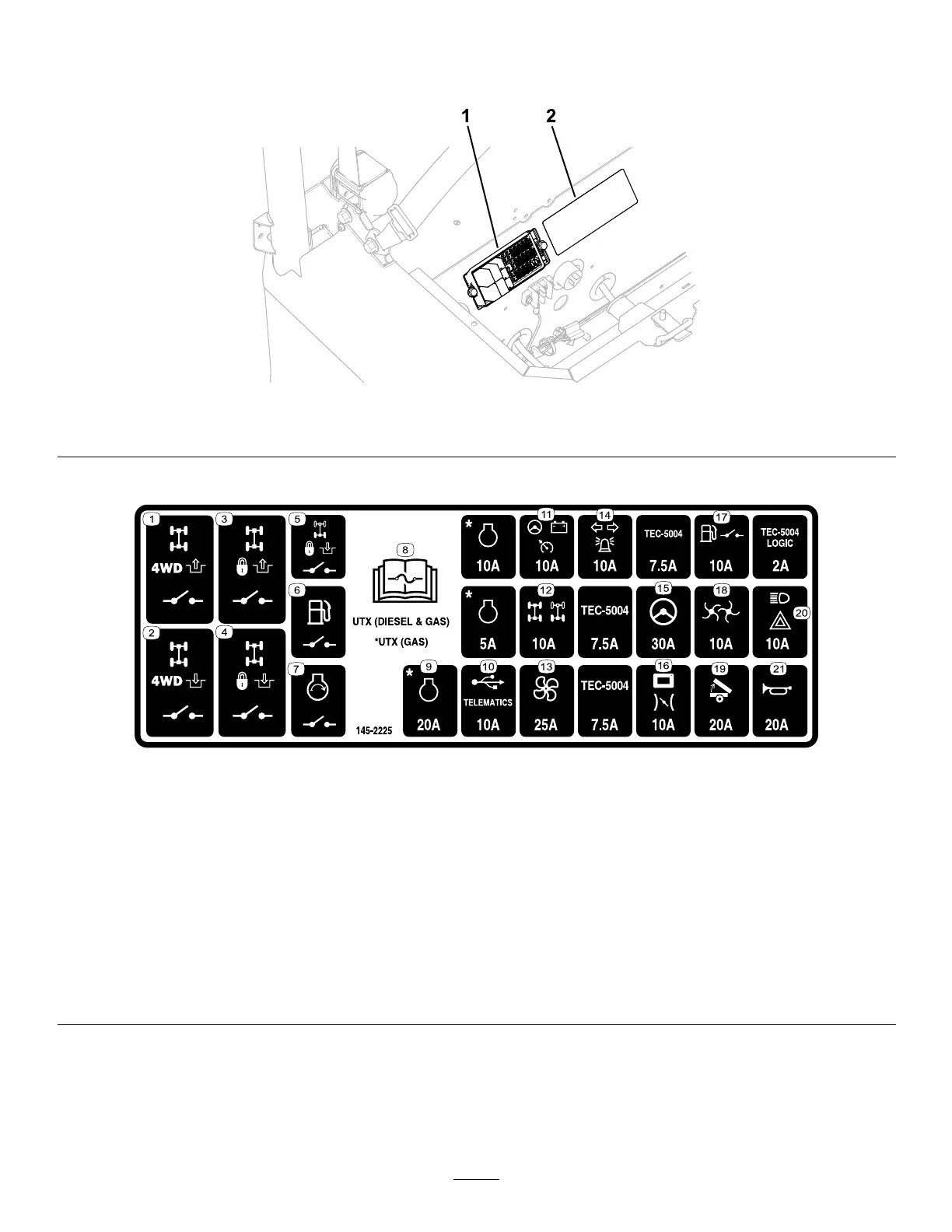

Thefusesfortheelectricalsystemarelocatedunderneaththeseat(Figure99).
g388509
Figure99
1.Fuseblock2.Fusedecal
RefertoFigure100forthefuselocations.
decal145-2225
Figure100
1.Frontdifferentiallockand
4-wheeldrivedisengage
relay
7.Starterrelay13.Coolingfan19.Bedlift
2.Frontdifferentiallockand
4-wheeldriveengagerelay
8.ReadtheOperator’s
Manualforfuseinformation.
14.Positionlightsand
turn-signallights
20.Headlightsandhazard
lights
3.Frontdifferentiallock
disengagerelay
9.Enginepower(gasoline
machinesonly)
15.Powersteering21.Horn
4.Frontdifferentiallock
engagerelay
10.USB/telematics
16.Displayandthrottle
5.Reardifferentiallock
engagerelay
11.Alternator,powersteering,
andspeedsensorenable
17.Fuelrelay
6.Fuelrelay
12.Frontandreardifferentials18.Saltspreader
