Toshiba 58L4300UC User Manual

Connecting Your TV
31
NOTE
The unauthorized recording, use, distribution, or revision of television
programs, videotapes, DVDs, and other materials is prohibited under the
Copyright Laws of the United States and other countries, and may subject
you to civil and criminal liability.
Connecting DVD to ColorStream
®
or VCR to composite video
VIDEO AUDIO
L R
COMPONENT VIDEO
P
B
P
R
Y
AUDIO
OUT
L R
R
COLOR STREAM HD / VIDEO 2 IN
R AUDIO L / MONO P
R
P
B
Y / VIDEO
G
BR
G
B
R
R W
R W
RW
RWY
Y
TV back panel
Yellow
VCR
DVD player
White Red Green Blue
Component video cable
Standard audio cable
Standard A/V cable

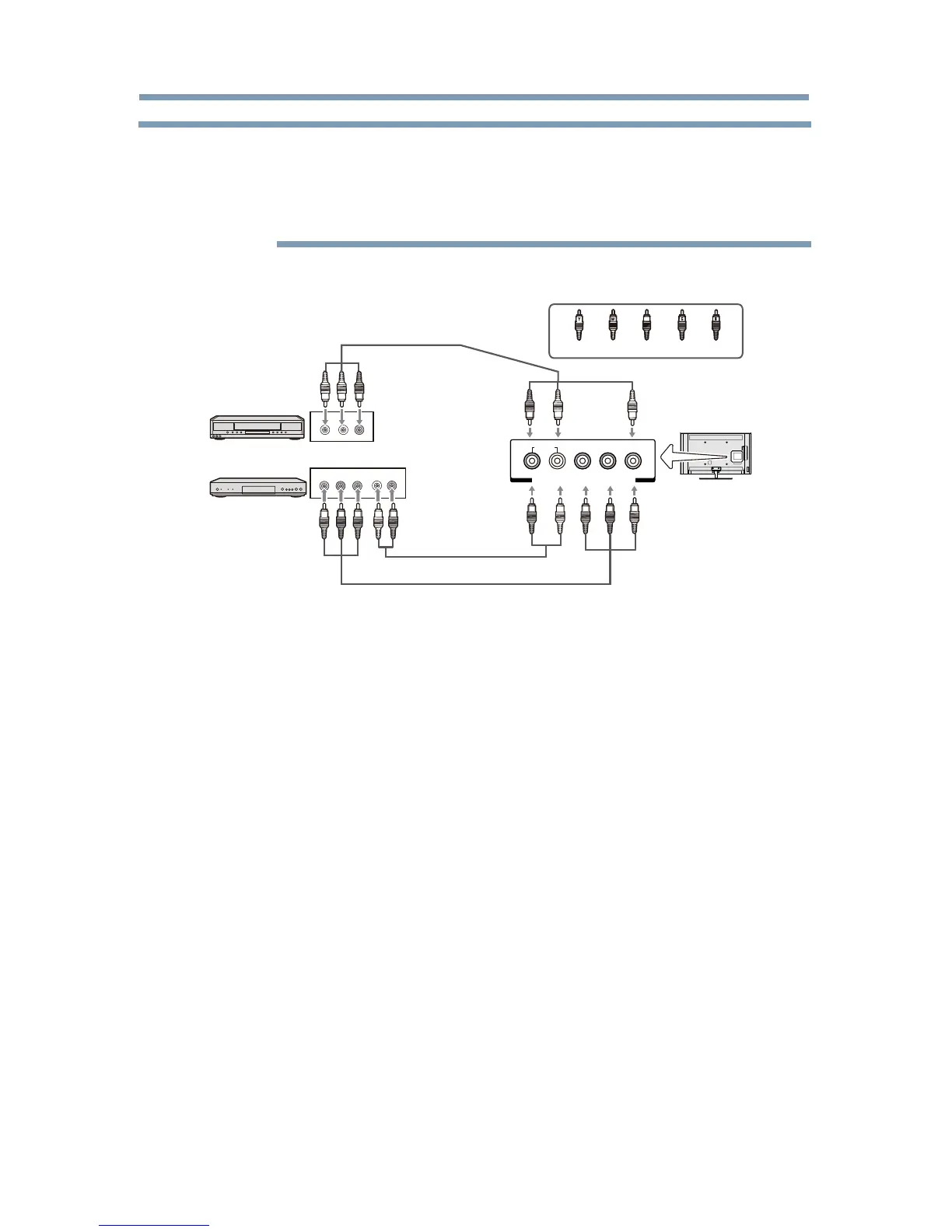

(Sample Illustration) L7300UC Series—Connecting a DVD with
ColorStream® or a VCR with composite video
Items needed:
❖
Coaxial cables
❖
Standard AV cables
❖
Standard audio cables
❖
Composite or component video cables
❖
You can connect the component video cables (plus audio cables)
from the DVD player or satellite receiver to the COLOR
STREAM HD terminal in the TV. The COLOR STREAM
HD terminal can be used to display Progressive (480p, 720p,
1080p) and Interlaced (480i, 1080i) scan systems.
If your DVD player or satellite receiver does not have
component video, connect a standard A/V cable to the AUDIO/
VIDEO terminal. If your DVD player has HDMI
®
video, see
“Connecting an HDMI
®
or DVI device to the HDMI
®
input” on
page 36.
Connecting DVD to ColorStream
®
or VCR to composite video
