Toshiba DVR80KF Owner's Manual

10
EN

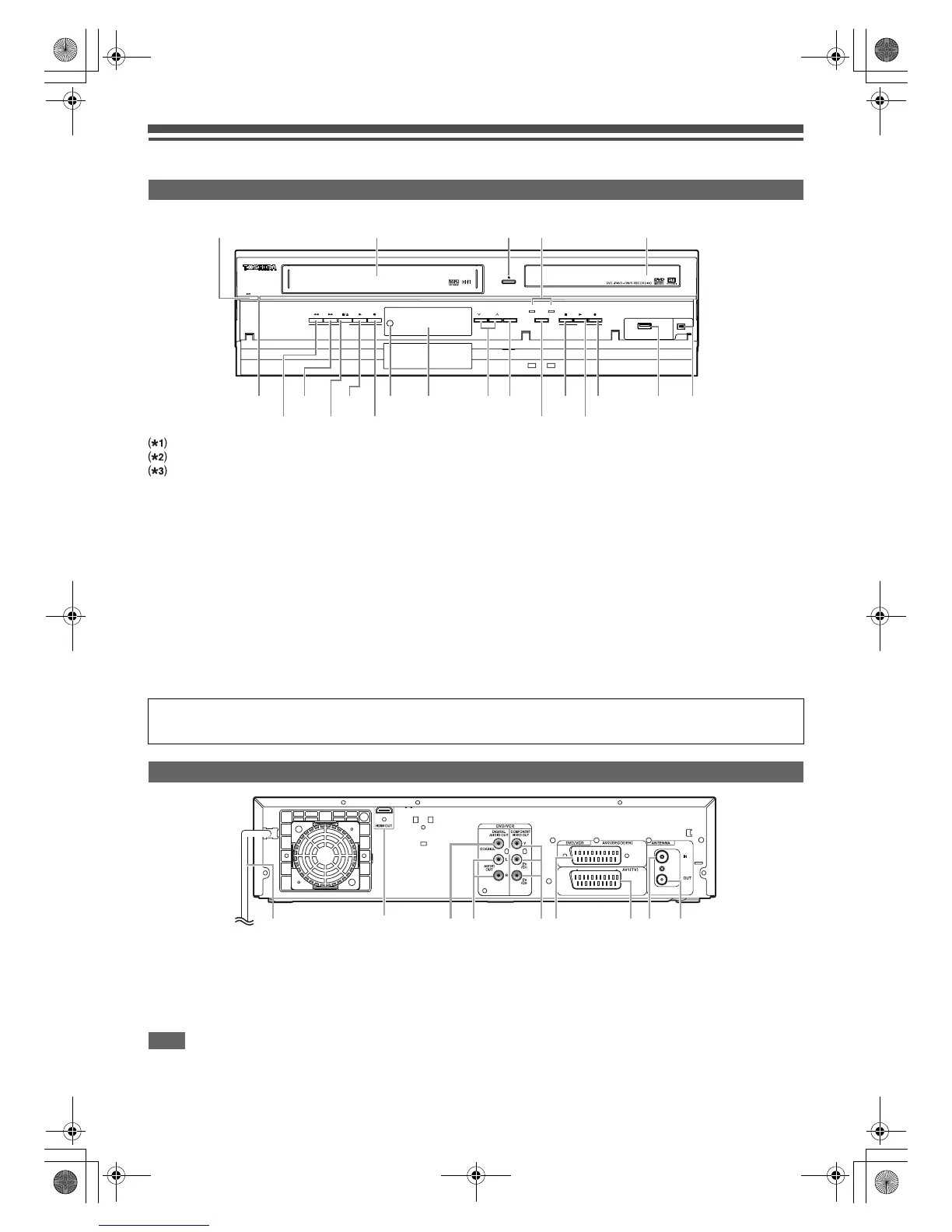

Functional Overview
You can also turn on the unit by pressing these buttons.
You can turn on the unit by pressing these buttons only when a videotape is in this unit.
Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the
AC power cord.)
1 B ON\STANDBY button*
3
2 Cassette compartment
3 A OPEN\CLOSE button*
1
(DVD)
4 VCR/DVD indicators
5 Disc tray
6 DV IN jack (AV3)
7 USB input jack
8 I REC button (DVD)
9PLAYB button*
1
(DVD)
10 STOP C button (DVD)
11 SELECT button
12 DUBBING button
13 PROGRAM G\H buttons
14 Display (“Off” in standby)
15 Infrared sensor window
16 I REC button (VHS)
17 PLAY B button*
2
(VHS)
18 STOP\EJECT C / A button (VHS)
19 FWD D button*
2
(VHS)
20 REV E button*
2
(VHS)
21 Power indicator
1 Mains cable
2 HDMI OUT jack
3 DIGITAL AUDIO OUT (COAXIAL) jack
4 AUDIO OUT (L\R) jacks
5 COMPONENT VIDEO OUT jacks
6 AV2 (DECODER) socket
7 AV1 (TV) socket
8 ANTENNA IN
9 ANTENNA OUT
Note
• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.
• After turning off the unit, leave the mains cable plugged for about one minute. Otherwise it may cause data loss or the unit may
not work properly.
• This unit does not have an RF modulator.
Front Panel
VCR
DVD
PROGRAM
DUBBING
SELECT
DVD
DVDVCR
VCR
USB DV IN
1*
3
20 *
2
19 *
2
21
18 16 11 9
*
1
2 3*
1
54
1517 *
2
14 13 12 10 8
7 6
Button names described in the Owner’s Manual
The instructions in this manual are described mainly with the operations using the remote control. Some operations can be
carried out using the buttons on the front panel.
Rear Panel
1 3 4 5 6 8 7 9 2
E9TK5FD_EN.book Page 10 Wednesday, January 13, 2010 10:33 AM
