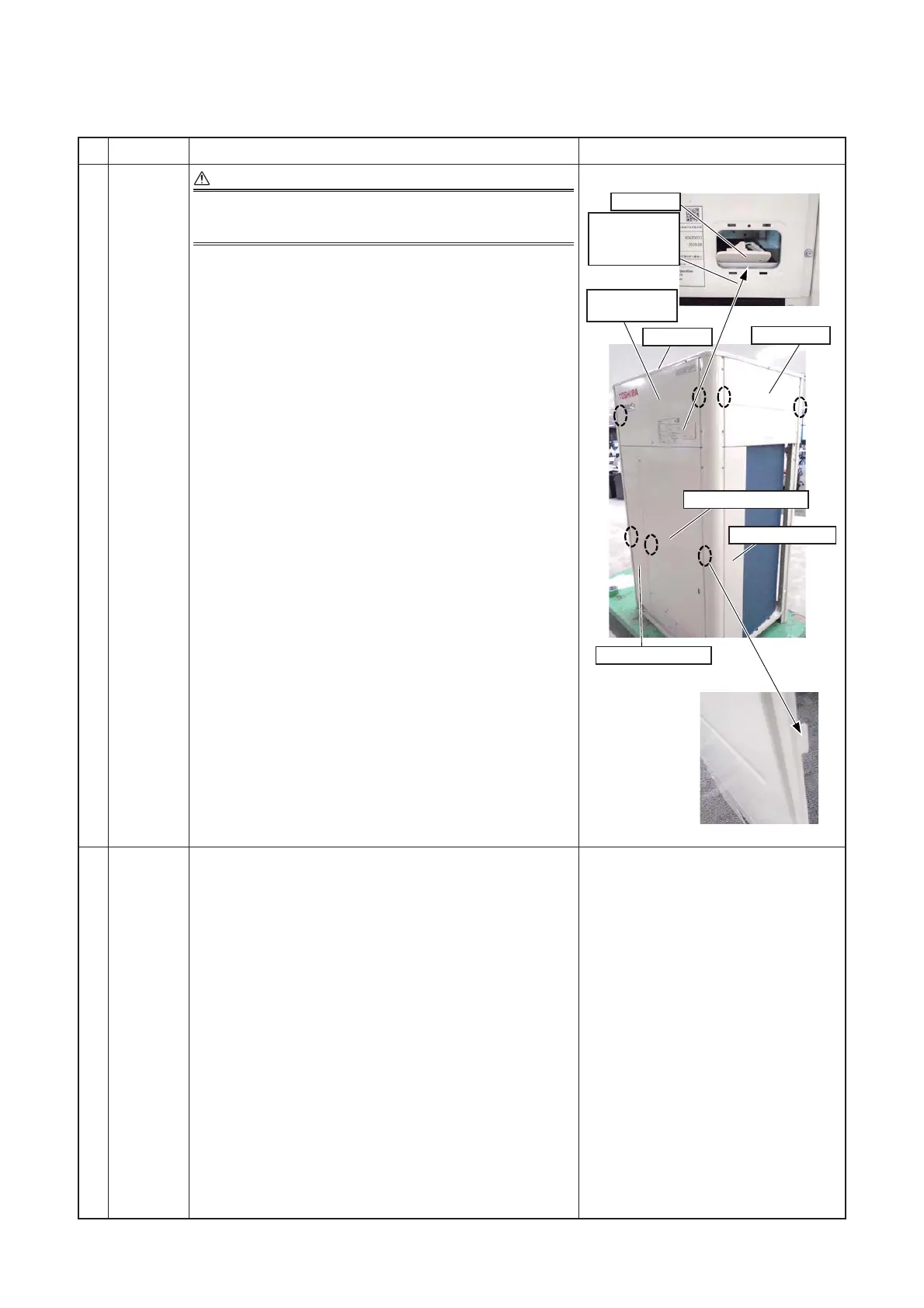

12. OUTDOOR UNIT PARTS REPLACEMENT METHODS
No. Part Work procedure Remarks
Cabinet
WARNING
Wear a pair of gloves.
Otherwise, you will risk an injury involving a replacement
part or some other object.
1. Detachment
1) Stop the air conditioner operation, and turn off the
circuit breaker.
2) Remove the front cabinet (right).
(M5 × 10 6 pcs)
3) Remove the front cabinet (left).
(M5 × 10 4 pcs)
4) Remove the top plate.
(M5 × 10 8 pcs) Front: 3 pcs, Back:3 pcs,
Left and Right: 1 pcs each
5) Remove the front cabinet (upper)
(M5 × 10 5 pcs)
* Remove the NFC holder first (M4 × 10 1 pcs)
• Remove the back side cabinet (upper).
(M5 × 10 5 pcs)
6) Remove the side panel (right and left).
Each (M5 × 10 4 pcs)
7) Remove the right side panel. (Only 990W cabinet)
(M5 × 10 5 pcs)
* Each cabinet has the hooks.
Lift the cabinet to remove the hooks.
1
2. Attachment
Carry out installation by following reverse procedure in the
detachment 1) to 7).
Hang the hooks into the slit on the metal frame to securely
attach each cabinet.
NFC holder
Hook
Insert each
claw of NFC
holder into
each squre hole
5) Front cabinet
(upper)
4) Top plate
NFC holder
6) Side panel
2) Front cabinet (right)
7) Right side panel
3) Front cabinet (left)
- 271 -
