User’s Manual 2-8
The Grand Tour
Underside

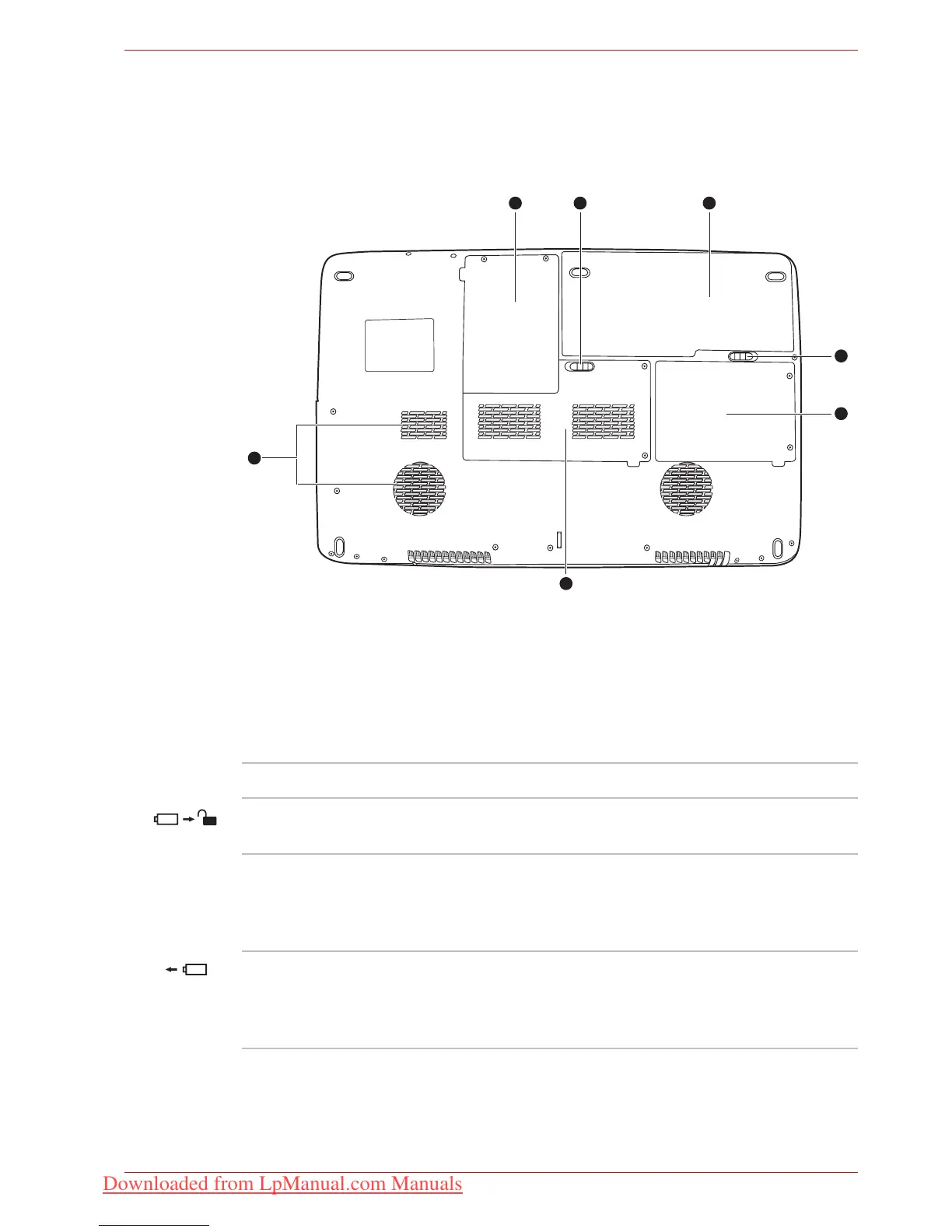

The following figure shows the underside of the computer. Make sure the
display is closed before turning over your computer.
The underside of the computer
7
1 2 3
4
5
6
1. Hard Disk Cover
2. Battery Pack Lock
3. Battery Pack
4. Battery Release Latch
5. Hard Disk Cover
6. Memory Module Cover
7. Cooling Vents
Hard Disk Cover This cover protects the hard disk.
Battery Pack Lock Slide this lock to prepare the battery pack for
removal.
Battery Pack The battery pack powers the computer when the
AC adaptor is not connected. For detailed
information on the battery pack, refer to
Chapter 6, Power and Power-Up Modes.
Battery Release
Latch
Slide and hold this latch to release the battery
pack for removal. For detailed information on
removing the battery pack, refer to Chapter 6,
Power and Power-Up Modes.
