ACCESSORIES
TMC7 Series

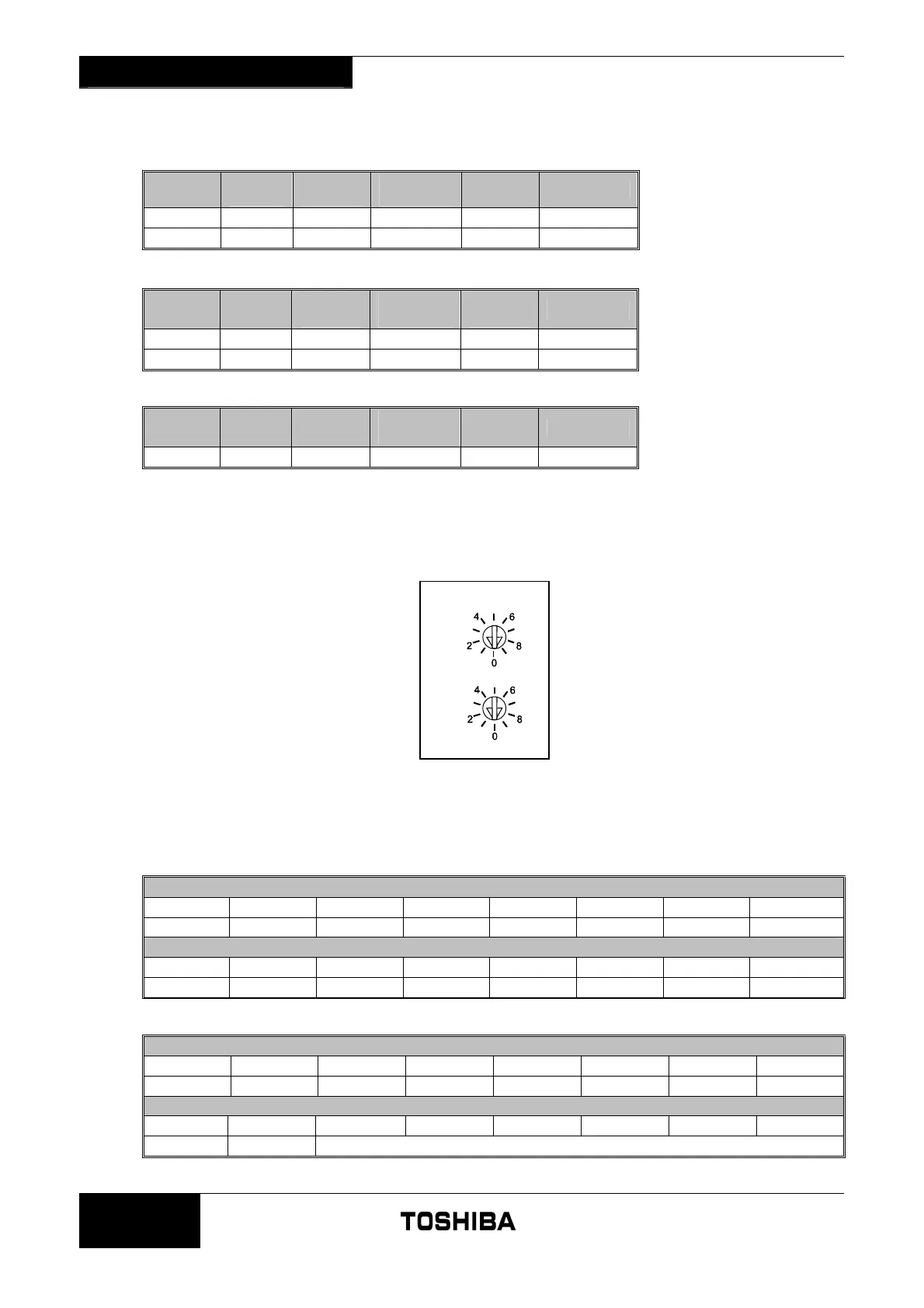

Page 18
710-02887-00A
Examples
Command: Start
Message
Starter
Address
Function
Code
Register
Address
Data CRC
In 20 06 40002 1 CRC1, CRC2
Out 20 06 40002 1 CRC1, CRC2
Starter Status: TMC7 Running
Message
Starter
Address
Function
Code
Address /
Bytes Read
Number /
Value
CRC
In 20 03 40003 1 CRC1, CRC2
Out 20 03 2 xxxx0011 CRC1, CRC2
Trip Code: Motor overload
Message
Starter
Address
Function
Code
Address /
Bytes Read
Number /
Value
CRC
In 20 03 40004 1 CRC1, CRC2
5.4 Profibus Module Part Number: TMC7-PBM-01
The Profibus Module can be used with the TMC7 to enable control and monitoring via a Profibus network.
Adjustment Address
Data rate
The interface has data rate auto-detection so no adjustment is required for this.
Low Voltage Switchgear (LVSG)
Motor Starter Format 1 Profile Basic Data Structure
Master > Slave Control Word is structured as follows.
BYTE 1
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Reserved Reserved Reserved Reserved Reset Reserved Reserved Fwd Run
BYTE 2
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Reserved Reserved Reserved Quick Stop Reserved Reserved Reserved Reserved
Slave > Master Status Word is structured as follows.
BYTE 1
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Reserved Reserved Reserved Reserved Reserved Fault On Ready
BYTE 2
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Ramping Reserved Motor Current (% FLC)
1
1
Only available from TMC7 units with serial number format xxxxx-4 or greater.
A
DD
R
ESS
MSD
LSD
