Toshiba TMC7 Series User Manual

SPECIFICATIONS
TMC7 Series

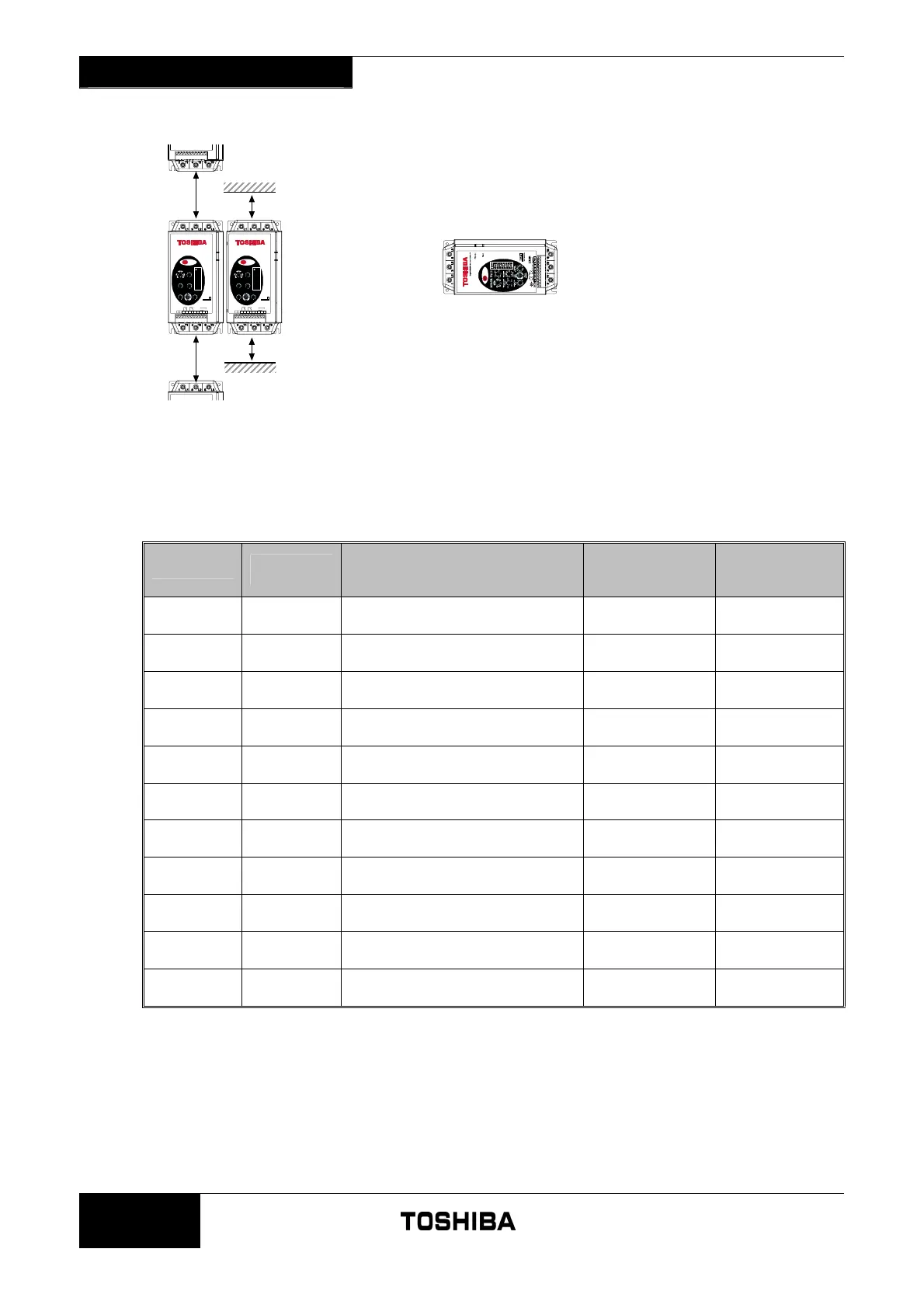

Page 6
710-02887-00A
3.3 Mounting
min 50
(1.97)
min 50
(1.97)
min 100
(3.93)
min 100
(3.93)
Derate TMC7 FLC by 15% (TMC7 FLC * 0.85)
Ready
Run
TOSHIBA INTERNATIONAL CORPORATION PTY LTD - AUSTRALIA
SOFT STARTER
C1 R33R34C2 R43R44 02 01 A2 A1 A3
Motor
Thermistor
Input N.O. N.O.
Relay Outputs
110 - 240VAC
Contro l Supply
380 - 440VAC or
StartStop
RESET
Aux
Relay
Phase
Rotation
TRIP CODES
Ready
x 1. Power
C ir cui t
x 2. Excess
St ar t Tim e
x 3. M o tor
O verl o ad
x 4. M o tor
T h ermi sto r
x 5. Current
I mba l ance
x 6. Supply
F req uen cy
x 7. Phase
R ot atio n
x 8. Comms
F a ilur e
Motor FLC
(% TMC7 FLC)
Current Ramp
(%FLC/Ramp Time)
OFF
5s
15s
15
2s
5s
5s
2s
2s
15
70%
80%
60% 90%
100%
50%
Current Limit
(% Motor FLC)
350%
450%
400%300%
250%
Motor Trip
Class
OFF
2
4
6
8
10
12
14
16
20
Exc e s s
Start Time
OFF
2s
4s
6s
8s
10s
12s
14s
16s
20s
TMC
7
SERIES
Soft Stop
(Sec ond s )
No
Soft Stop
2s
4s
6s
8s
10s
12s
14s
16s
20s
Ready
Run
TOSHIBA INTERNATIONAL CORPORATION PTY LTD - AUST RALIA
SOFT STARTER
C1 R33 R34C2 R43R44 02 01 A2 A1 A3
Motor
Thermistor
Input N.O. N.O.
Relay Outputs
110 - 240VAC
Contro l Sup ply
380 - 440VAC or
StartStop
RESE T
Aux
Relay
Phase
Rotation
TRIP CODES
Ready
x 1. Powe r
C i rcui t
x 2. Excess
St art Time
x 3. Motor
O ver lo ad
x 4. Motor
T her mi sto r
x 5. Curre nt
I mba l ance
x 6. Su ppl y
F r eq ue nc y
x 7. Ph ase
R ota tio n
x 8. Comms
F a ilur e
Motor FLC
(% TMC7 FLC)
Curr e nt R a m p
(%FLC/Ramp Time)
OFF
5s
15s
15
2s
5s
5s
2s
2s
15
70%
80%
60% 90%
100%
50%
Current Limit
(% Motor FLC)
350%
450%
400%300%
250%
Motor Trip
Class
OFF
2
4
6
8
10
12
14
16
20
Excess
Start Time
OFF
2s
4s
6s
8s
10s
12s
14s
16s
20s
TMC
7
SERIES
Soft Stop
(Se co n d s )
No
Soft Stop
2s
4s
6s
8s
10s
12s
14s
16s
20s
mm (inch)
3.4 Semiconductor Fuses
Semiconductor fuses can be used with the TMC7 soft starter to reduce the potential for damage to SCRs from transient overload
currents and for Type 2 coordination. TMC7 soft starters have been tested to achieve Type 2 coordination with semiconductor fuses.
Suitable Bussman & Ferraz semiconductor fuses are detailed below.
TMC7 Model
SCR I
2
t
(A
2
s)
Ferraz Fuse
European/IEC Style
(North American Style)
Bussman Fuse
Square Body
(170 M)
Bussman Fuse
British Style
(BS88)
007 1150
6.6URD30xxxA0063
(A070URD30xxx0063)
170M-1314 63 FE
015 8000
6.6URD30xxxA0125
(A070URD30xxx0125)
170M-1317 160 FEE
018 10500
6.6URD30xxxA0160
(A070URD30xxx0160)
170M-1318 160 FEE
022 15000
6.6URD30xxxA0160
(A070URD30xxx0160)
170M-1318 180 FM
030 18000
6.6URD30xxxA0160
(A070URD30xxx0160)
170M-1319 180 FM
037 51200
6.6URD30xxxA0250
(A070URD30xxx0250)
170M-1321 250 FM
045 80000
6.6URD30xxxA0315
(A070URD30xxx0315)
170M-1321 250 FM
055 97000
6.6URD30xxxA0315
(A070URD30xxx0315)
170M-1321 250 FM
075 168000
6.6URD31xxxA0450
(A070URD31xxx0450)
170M-1322 500 FMM
090 245000
6.6URD31xxxA0450
(A070URD31xxx0450)
170M-3022 500 FMM
110 320000
6.6URD31xxxA0450
(A070URD31xxx0450)
170M-3022 500 FMM
xxx = Blade Type. Refer Ferraz for options.
