Toshiba TMC7 Series User Manual

SERIES OVERVIEW
Page 7
710-02887-00A
TMC7 Series

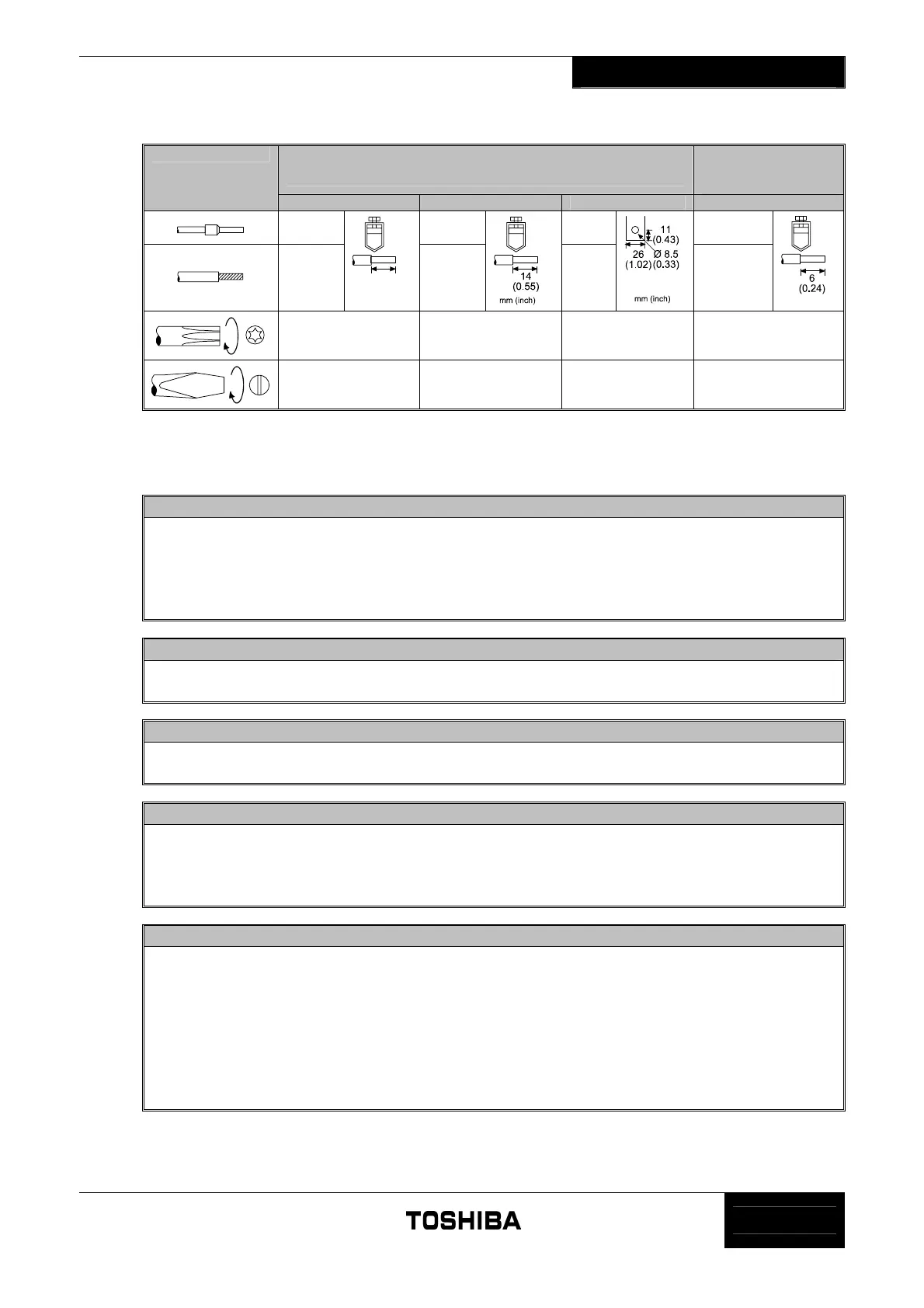

3.5 Power Terminations
L1/1, L2/3, L3/5, T1/2, T2/4, T3/6
mm
2
(AWG)
A1, A2, A3, 01, 02, C1,
C2, R43, R44, R33, R34
mm
2
(AWG)
007 ~ 030 037 ~ 055 075 ~ 110 007 ~ 110
10 – 35
(8 – 2)
25 – 50
(4 – 1/0)
n.a.
0.14 – 1.5
(26 – 16)
10 – 35
(8 – 2)
14
(0.55)
mm (inch)
25 – 50
(4 – 1/0)
n.a.
0.14 – 1.5
(26 – 16)
Torx (T20)
3 – 5 Nm
2.2 – 3.7 ft-lb
Torx (T20)
4 – 6 Nm
2.9 – 4.4 ft-lb
n.a. n.a.
7 mm
3 – 5 Nm
2.2 – 3.7 ft-lb
7 mm
4 – 6 Nm
2.9 – 4.4 ft-lb
n.a.
3.5 mm
0.5 Nm max.
4.4 lb-in max.
75
o
C Wire. Use copper conductors only.
3.6 General Technical Data
Mains supply (L1, L2, L3)
TMC7-xxxx-xx ...........................................................................................................................3 x 200 VAC ~ 440 VAC (+10% / - 15%)
Supply frequency (at start) ............................................................................................................................................. 45 Hz to 66 Hz
Rated insulation voltage .............................................................................................................................................................600 VAC
Rated impulse withstand voltage ................................................................................................................ 4 kV (1, 2/ 50µs at 2000 m)
Form designation...............................................................................................................Bypassed semiconductor motor starter form 1
Control supply (A1, A2, A3)
TMC7-xxxx-C1 ...................................................................................... 110-240 VAC (+10% / - 15%) or 380-440 VAC (+10% / - 15%)
TMC7-xxxx-C2 ....................................................................................................................................................... 24 VAC/VDC (±20%)
Control Inputs
Start Terminal 01 ................................................................................................................................... Normally Open, 300 VAC max.
Stop Terminal 02 ................................................................................................................................ Normally Closed, 300 VAC max.
Relay Outputs
Main Contactor (Terminals R43 & R44) .......................................................................................................................... Normally Open
..............................................................................................................................................6 A, 30 VDC resistive / 2 A, 400 VAC, AC11
Programmable Relay (Terminals R33 & R34) ................................................................................................................. Normally Open
..............................................................................................................................................6 A, 30 VDC resistive / 2 A, 400 VAC, AC11
Environmental
Degree of protection TMC7-007 to TMC7-055 ................................................................................................................................ IP20
Degree of protection TMC7-075 to TMC7-110 ................................................................................................................................ IP00
Operating Temperatures ............................................................................................................................................. -10
o
C to + 60
o
C
Humidity ................................................................................................................................................... 5% to 95% Relative Humidity
Pollution Degree ....................................................................................................................................................... Pollution Degree 3
Vibration ................................................................................................................................................. IEC 60068 Test Fc Sinusoidal
4 Hz to 13.2 Hz: ± 1 mm displacement
13.2 Hz to 200 Hz: ± 0.7 g
