A56701
Seal
Packing
New Gasket
Seal Width
2to4mm
(0.08 to 0.16 in.)
B08024
A57099
A56702
14−12
−ENGINE MECHANICAL PARTIAL ENGINE ASSY (1CD−FTV)(From September,
2003)
1CD−FTV ENGINE REPAIR MANUAL (RM1046E)

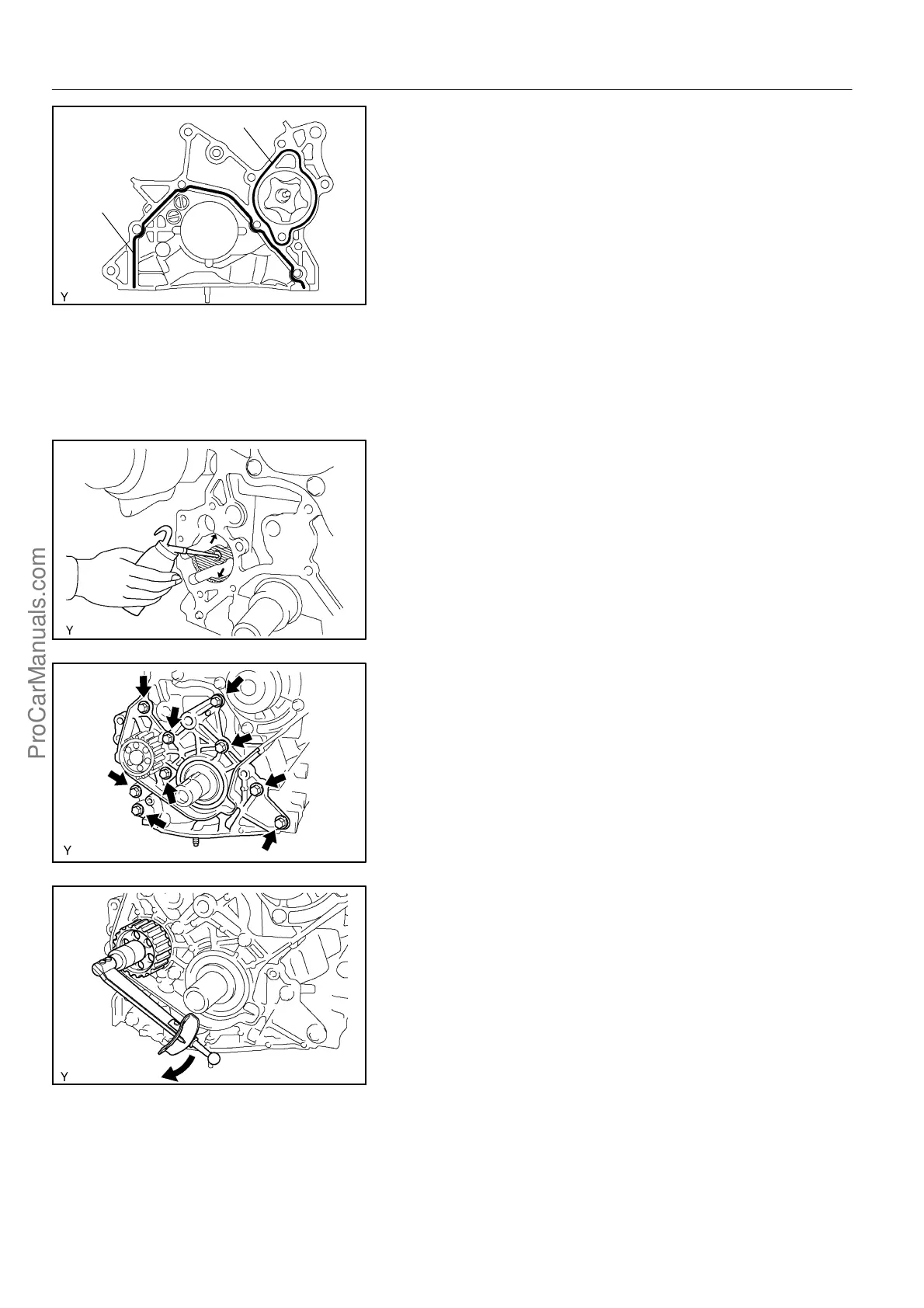

36. INSTALL OIL PUMP ASSY
(a) Apply seal packing to the oil pump as shown in the illustra-
tion.
Seal packing: Part No. 08826−00080 or equivalent
NOTICE:
S Avoid applying an excessive amount to the surface.
S Install a nozzle of which opening is cut to 2 to 4 mm
(0.08 to 0.16 in.).
S The parts must be set within 3 minutes and must be
assembled within 15 minutes after applying seal
packing. Otherwise the material must be removed
and reapplied.
S Immediately remove the nozzle from the tube, then re-
install the cap.
(b) Install a new gasket to the oil pump.
(c) Pour 0.5 cm
3
(0.03 cu in.) or more of engine oil into the
bushing of the cylinder block.
(d) Apply engine oil to the cylinder block side which contacts
the oil pump driven rotor.
(e) Install the oil pump with the 9 bolts.
Torque: 31 N×m (320 kgf×cm, 23 ft×lbf)
(f) Measure the oil pump rotating torque.
(1) Check that the pump rotates smoothly without mak-
ing a noise.
(2) Using a torque wrench, check the pump rotating
torque.
Rotating torque: 3.0 N×m (31 kgf×cm, 27 in.×lbf) or less
ProCarManuals.com
To Next Page
