Toyota 1CD-FTV User Manual

A59623
Intake Side:
Front Side:
Exhaust Side:
Rear Side:
1.5 mm
(0.059 in.)
2.0 mm
(0.079 in.)
2.0 mm
(0.079 in.)
A
B
A 1.5 mm
(0.059 in.)
B 2.0 mm
(0.079 in.)
A
A
−ENGINE MECHANICAL CYLINDER BLOCK ASSY (1CD−FTV)(FromSeptember,
2003)
14−55
1CD−FTV ENGINE REPAIR MANUAL (RM1046E)
21. INSTALL TIGHT PLUG
(a) Apply adhesive around new tight plugs.
Adhesive: Part No.08833 − 00070, THREE BOND 1324
or equivalent.

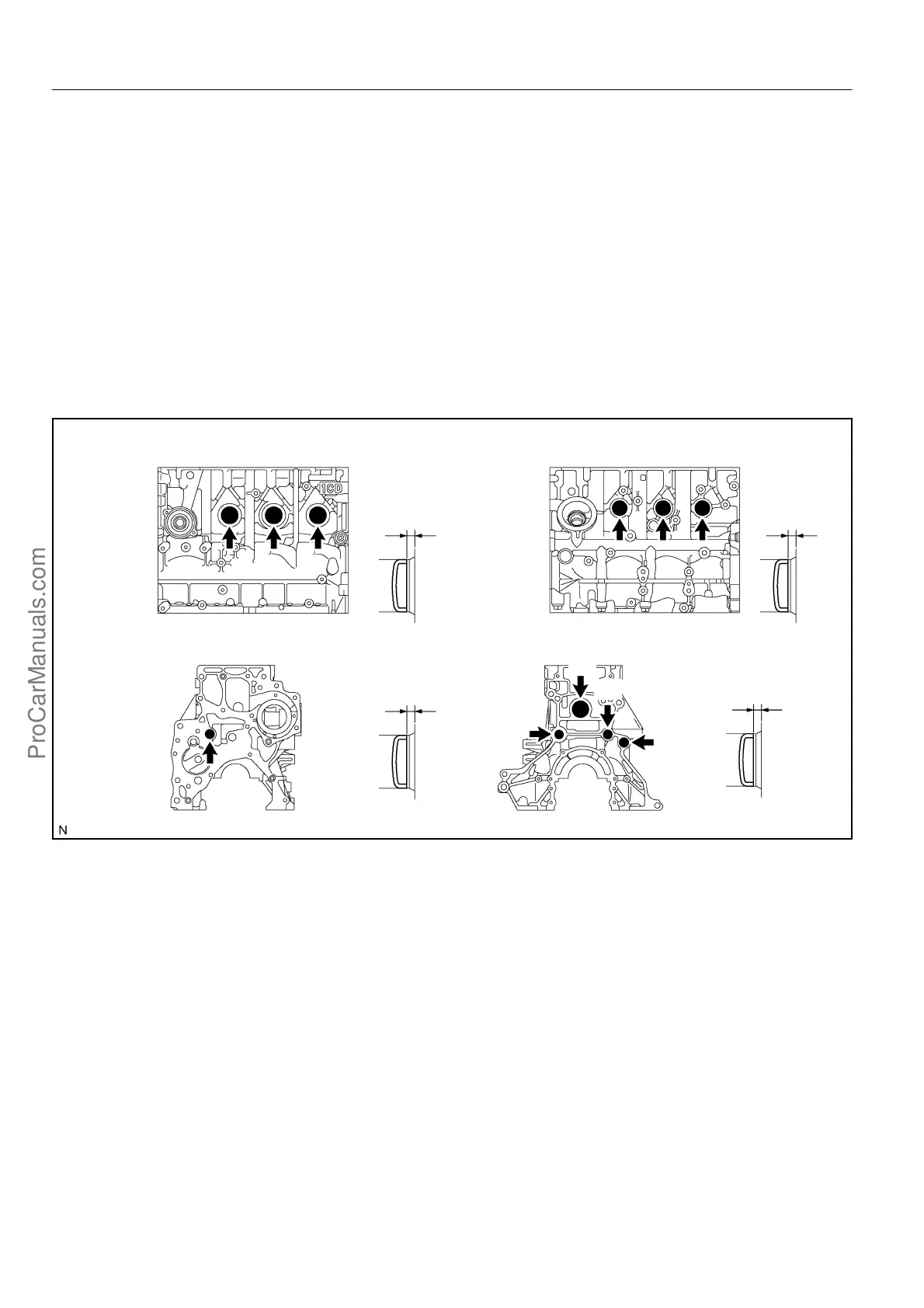

(b) Using SST, tap in the tight plugs as shown tn the illustra-
tion.
SST 09950−60010 (09951−00350), 09950−70010
(09951−07100)
Standard depth:
2.0 mm (0.079 in.) for intake side
2.0 mm (0.079 in.) for exhaust side
1.5 mm (0.059 in.) for front side
1.5 mm (0.059 in.) for rear side A
2.0 mm (0.079 in.) for rear side B
