A56038
A56042
A56039
Groove
A09512
Groove
A09499
Plastigage
14−52
−ENGINE MECHANICAL CYLINDER BLOCK ASSY (1CD−FTV)(From September,
2003)
1CD−FTV ENGINE REPAIR MANUAL (RM1046E)

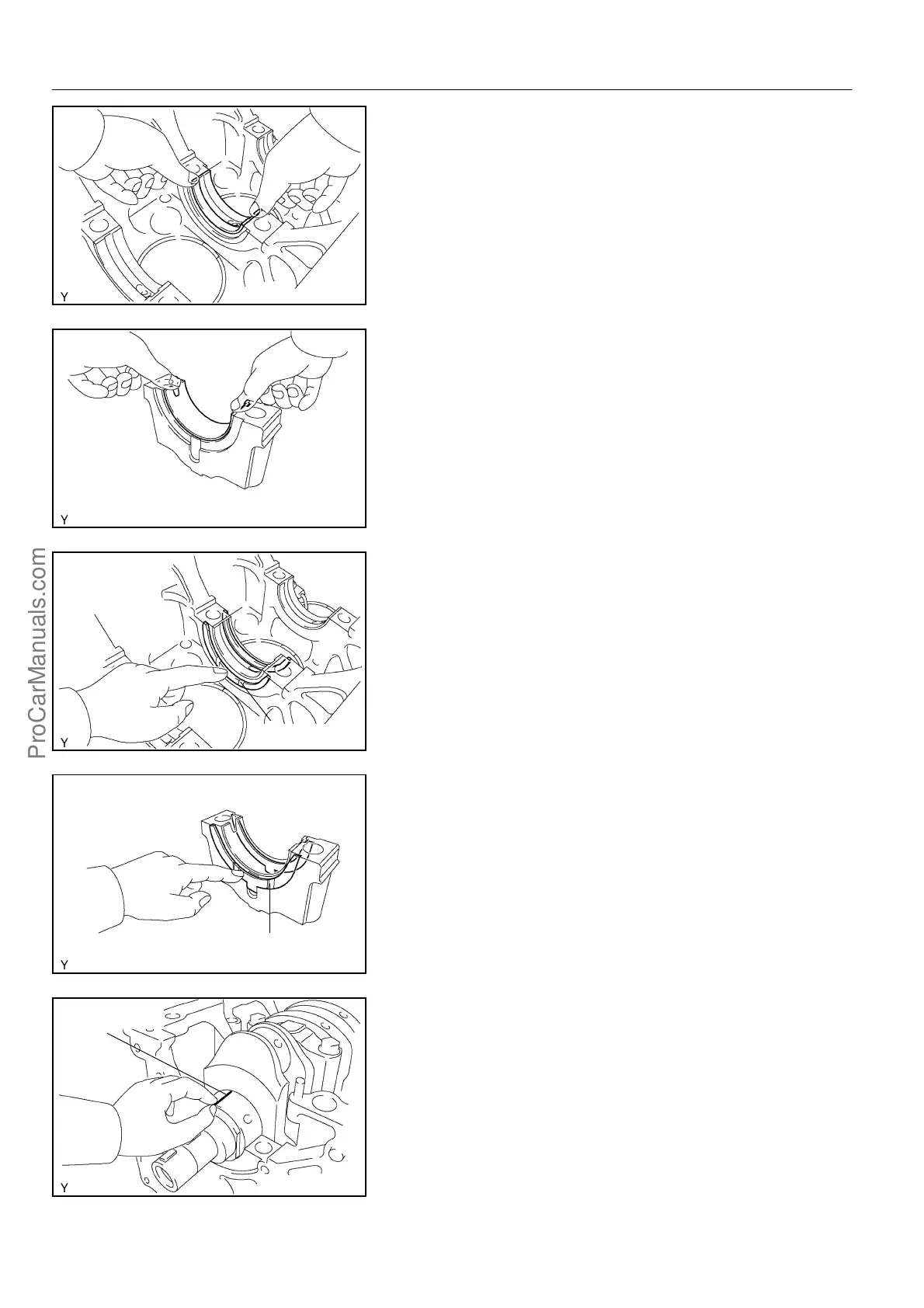

(b) Install the bearing on the cylinder block and bearing cap.
HINT:
Each upper bearing has an oil groove and oil hole and each low-
er bearing does not.
(1) Align the bearing claw with the claw groove of the
cylinder clock, then push in the 5 upper bearings.
(2) Align the bearing claw with the claw groove of the
main bearing cap, then push in the 5 lower bear-
ings.
(c) Install the 2 thrust washers under the No. 3 journal posi-
tion of the cylinder block with the oil grooves facing out-
ward.
(d) Install the 2 thrust washers on the No. 3 bearing cap with
the oil grooves facing outward.
(e) Place the crankshaft on the cylinder block.
(f) Lay a strip of Plastigage across each journal.
