Toyota 8FGU15 User Manual

solenoid valve
Wrench
Idle adjusting screw

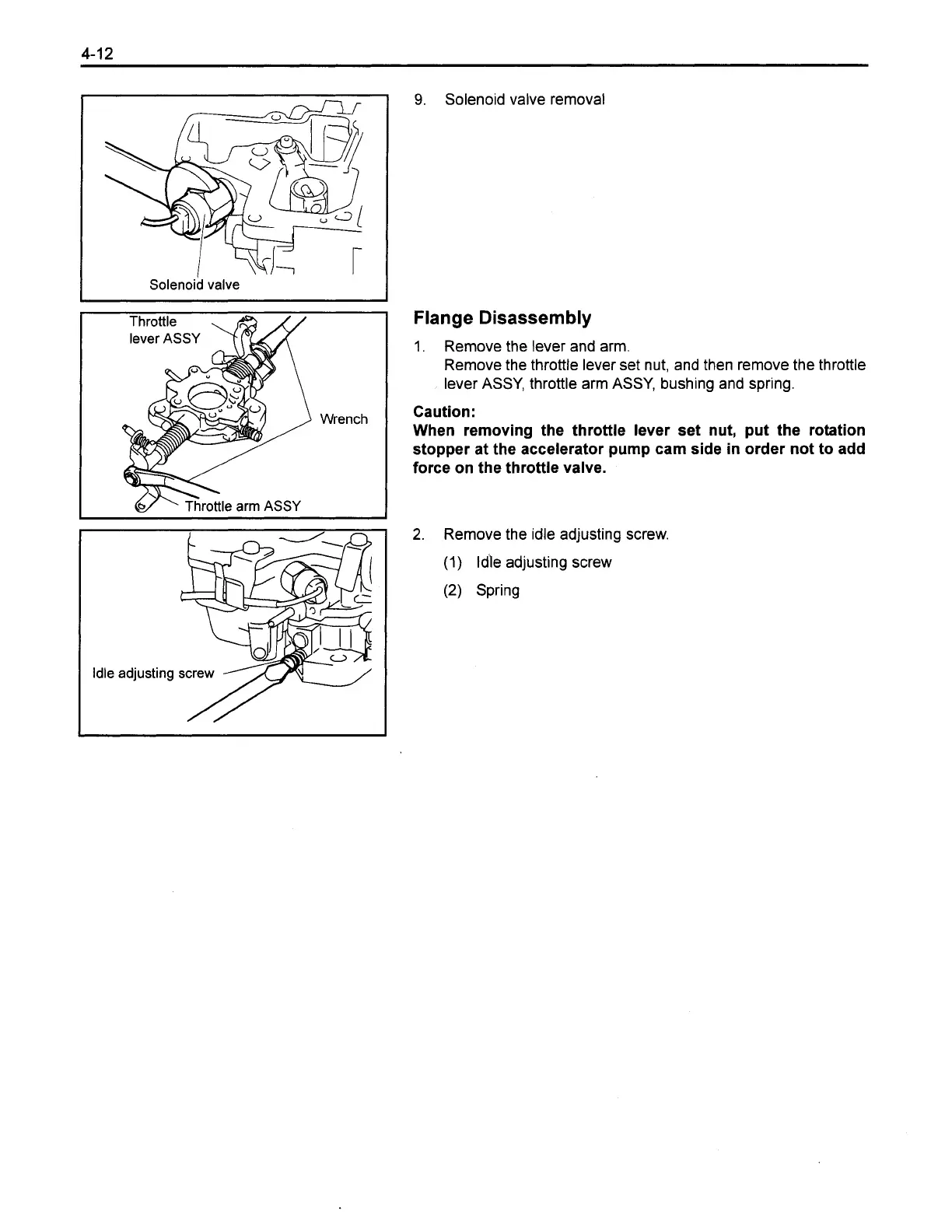

9. Solenoid valve removal
Flange Disassembly
1. Remove the lever and arm.
Remove the throttle lever set nut, and then remove the throttle
lever ASSY, throttle arm ASSY, bushing and spring.
Caution:
When removing the throttle lever set nut, put the rotation
stopper at the accelerator pump cam side in order not to add
force on the throttle valve.
2. Remove the idle adjusting screw.
(1) Idle adjusting screw
(2) Spring
4Y-E Repair
Section 1.1.4

Toyota 8FGU15 Specifications

General

Model	8FGU15
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	3000 lbs
Lift Height	189 inches
Tire Type	Pneumatic
Engine	Toyota 4Y
Power Source	Gasoline
