O-ring
Spacer
s
/\-
Intake manifold
O-ring
[Point
31

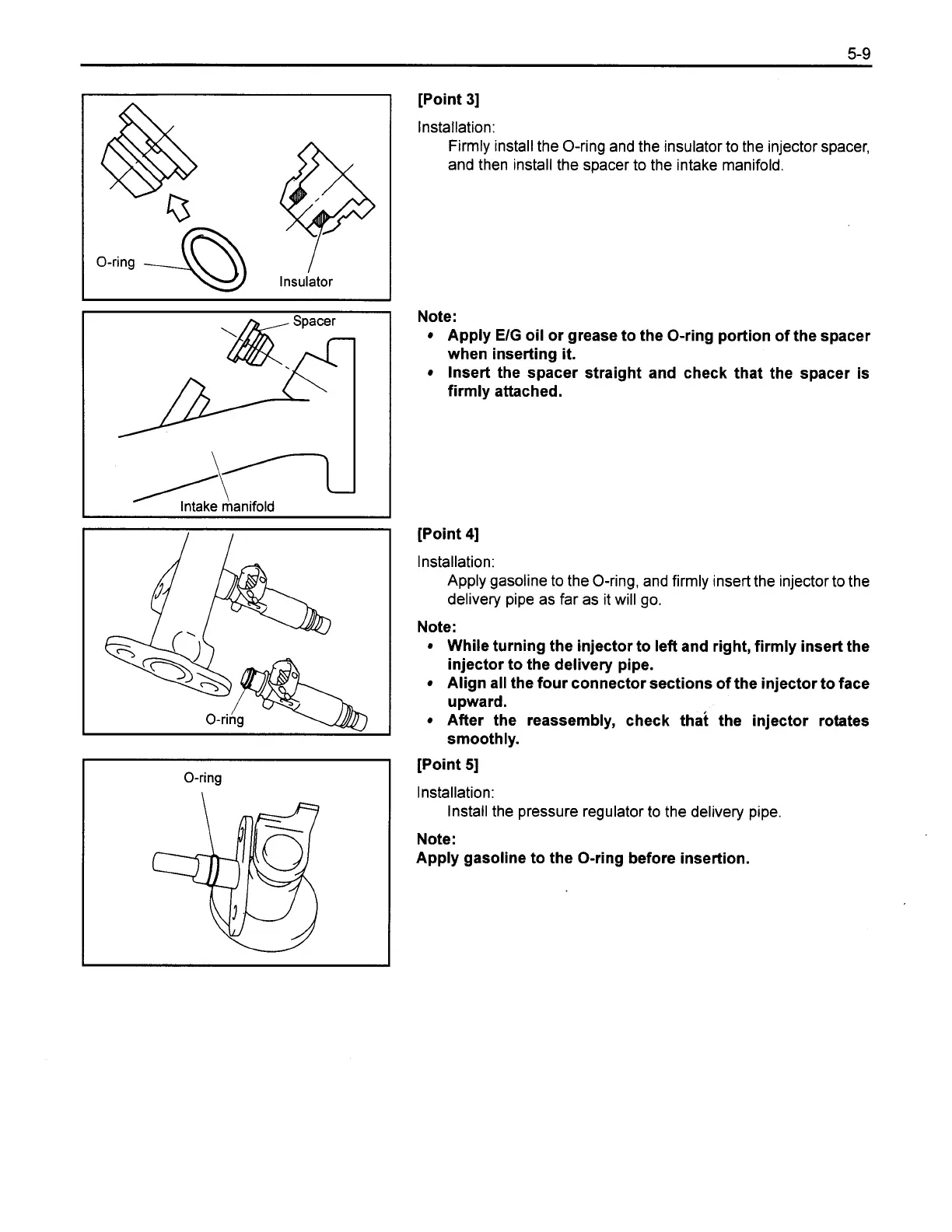

Installation:
Firmly install the O-ring and the insulator to the injector spacer,
and then install the spacer to the intake manifold.
Note:
Apply
EIG
oil or grease to the O-ring portion of the spacer
when inserting it.
Insert the spacer straight and check that the spacer is
firmly attached.
[Point
41
Installation:
Apply gasoline to the O-ring, and firmly insert the injector to the
delivery pipe as far as it will go.
Note:
While turning the injector to left and right, firmly insert the
injector to the delivery pipe.
Align all the four connector sections of the injector to face
upward.
After the reassembly, check that the injector rotates
smoothly.
[Point
51
Installation:
Install the pressure regulator to the delivery pipe.
Note:
Apply gasoline to the O-ring before insertion.
