Toyota 8FGU15 User Manual

T = N.m (kgf cm) [ft.lbfl

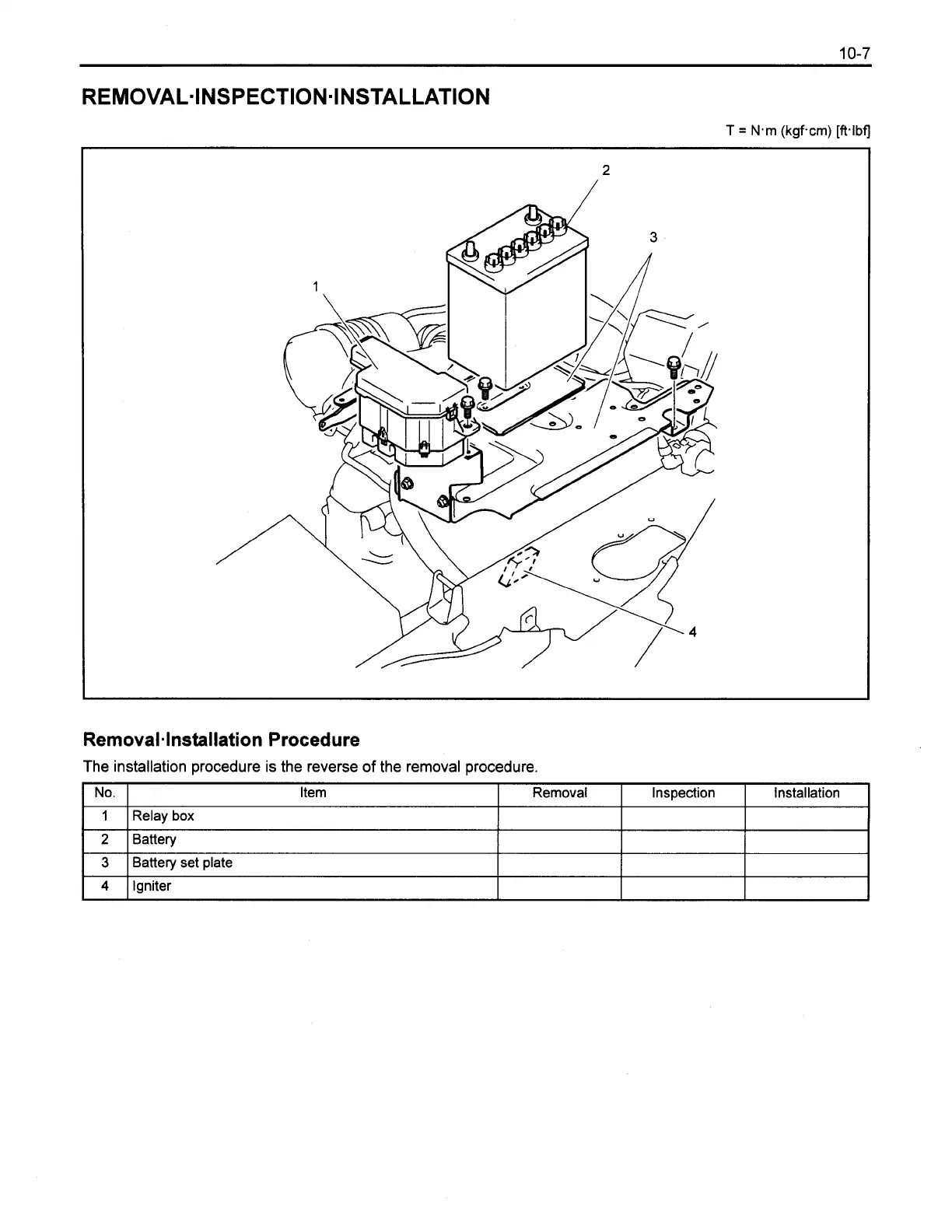

Removal.lnstallation Procedure
The installation procedure is the reverse of the removal procedure.
1 2 1 Battery I I I I
No.
1
1 3 1 Battery set plate I I I I
4 1 Igniter
I
Item
Relay box
Removal Inspection Installation
4Y-E Repair
Section 1.1.10

Toyota 8FGU15 Specifications

General

Model	8FGU15
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	3000 lbs
Lift Height	189 inches
Tire Type	Pneumatic
Engine	Toyota 4Y
Power Source	Gasoline
