Nozzle
Nozzle
gasket
seat

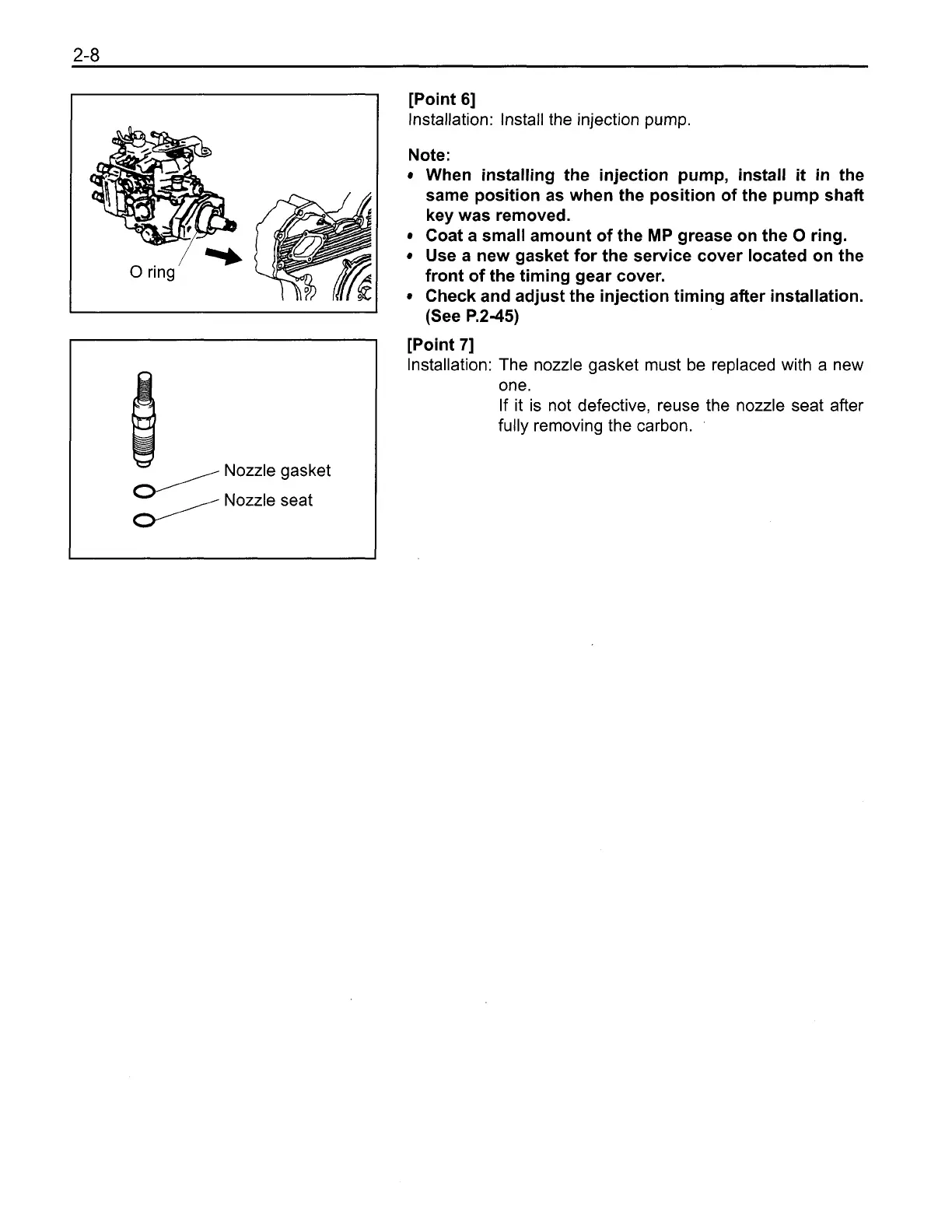

[Point 61
Installation: Install the injection pump.
Note:
When installing the injection pump, install it in the
same position as when the position of the pump shaft
key was removed.
Coat a small amount of the MP grease on the 0 ring.
Use a new gasket for the service cover located on the
front of the timing gear cover.
Check and adjust the injection timing after installation.
(See P.2-45)
[Point
71
Installation: The nozzle gasket must be replaced with a new
one.
If it is not defective, reuse the nozzle seat after
fully removing the carbon.
1DZ-II Repair
Section 1.2.2

Toyota 8FGU15 Specifications

General

Model	8FGU15
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	3000 lbs
Lift Height	189 inches
Tire Type	Pneumatic
Engine	Toyota 4Y
Power Source	Gasoline
