Toyota 8FGU15 User Manual

1-101-10

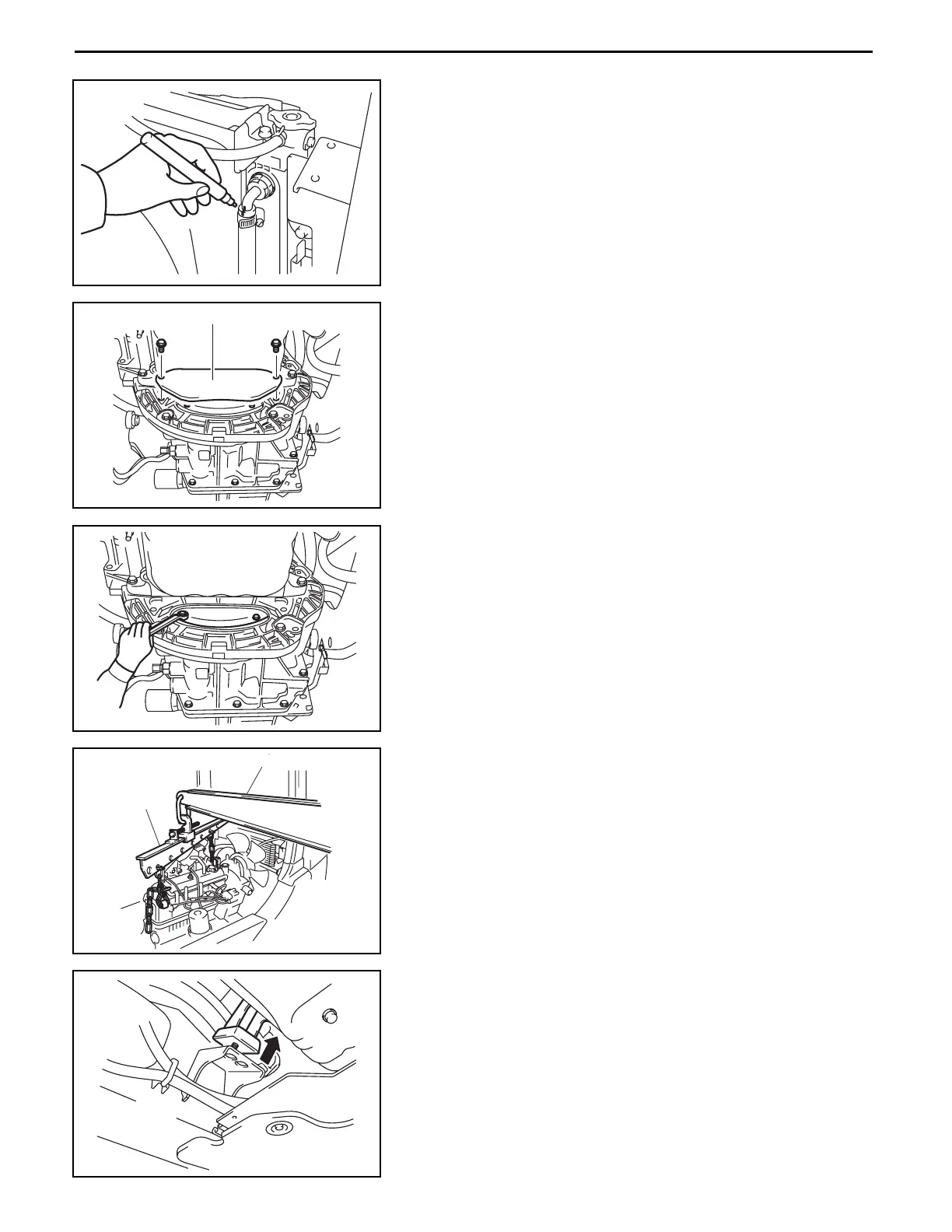

Point Operations
[Point 1]
Removal:
Put match marks on the radiator and torque converter cooler
hose.
[Point 2]
Removal:
Remove the cover plate.
[Point 3]
Removal•Installation:
Rotate the drive plate using the crank shaft pulley set bolt, and
remove the drive plate set bolt.
[Point 4]
Removal•Installation:
SST 09010-20111-71 ................................. (1)
09010-23320-71................................. (2)
Removal:
Temporarily hoist up until the mount bolt completely comes out
of the hole in the frame.
Cover plate
SST(1)
SST(2)
Engine
Section 1
8FG(D)U15-32
8FGCU20-32
