E

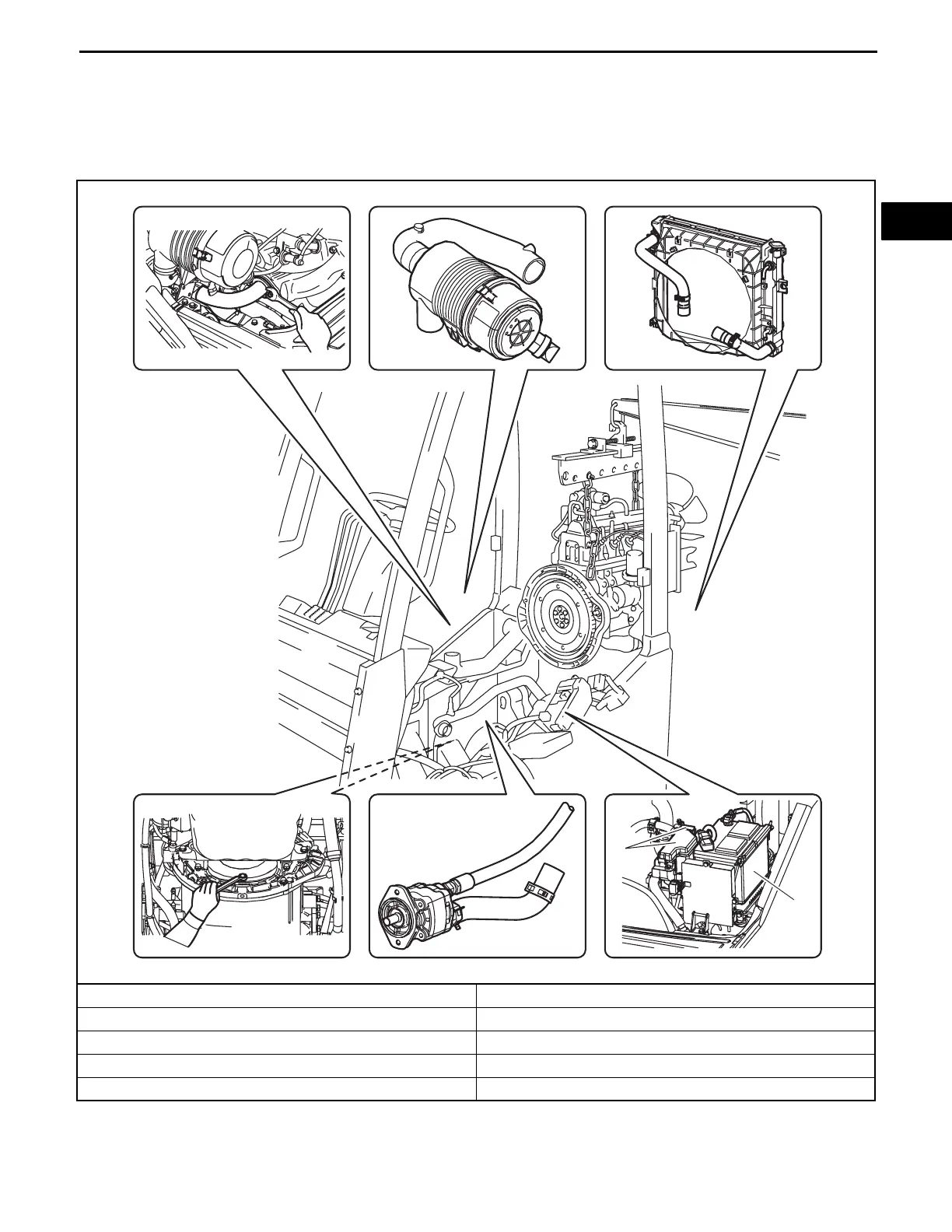

ENGINE ASSY
REMOVAL·INSTALLATION
T = N·m (kgf·cm) [ft·lbf]
Engine mounting nut T = 53.9 ~ 99.0 (550 ~ 1010) [39.8 ~ 73.1]
End plate set bolt T = 49.0 ~ 78.5 (500 ~ 800) [36.2 ~ 57.9]
Drive plate set bolt (for connecting engine crankshaft) T = 56.9 ~ 64.7 (580 ~ 660) [42.0 ~ 47.7]
Drive plate set bolt (for connecting torque converter) T = 14.7 ~ 21.6 (150 ~ 220) [10.9 ~ 15.9]
Torque converter housing set bolt T = 29.4 ~ 44.1 (300 ~ 450) [21.7 ~ 32.6]
1214
6
13
23
7
5
Engine
Section 1
1-11b
8FGCU15,18,SU20

Toyota 8FGU15 Specifications

General

Model	8FGU15
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	3000 lbs
Lift Height	189 inches
Tire Type	Pneumatic
Engine	Toyota 4Y
Power Source	Gasoline
