Toyota 8FGU15 User Manual

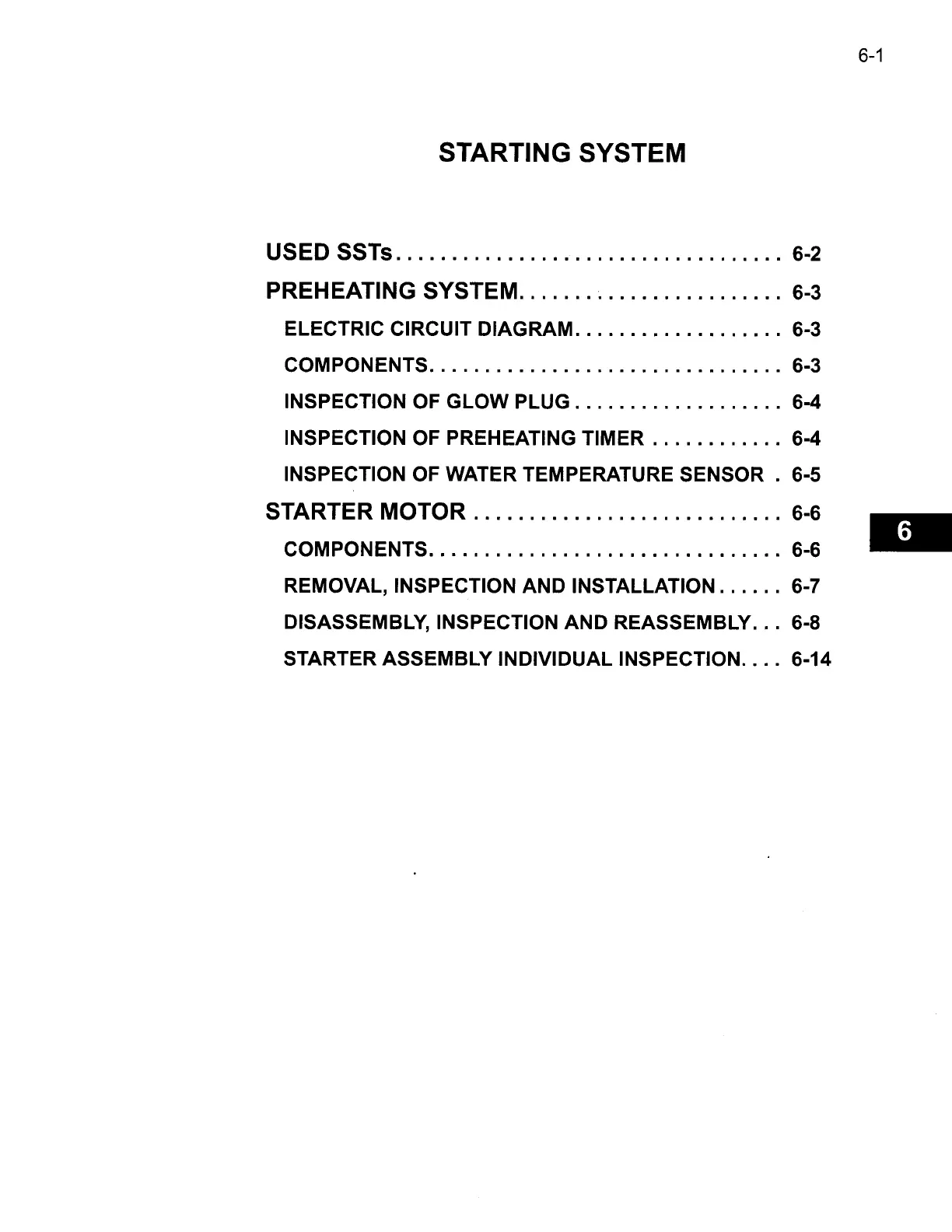

STARTING SYSTEM
USED SSTS ................................... 6-2
PREHEATING SYSTEM ........................ 6-3
ELECTRIC CIRCUIT DIAGRAM
................... 6-3
COMPONENTS
................................ 6-3
INSPECTION OF GLOW PLUG
................... 6-4
............ INSPECTION OF PREHEATING TIMER 6-4
INSPECTION OF WATER TEMPERATURE SENSOR
. 6-5
STARTER MOTOR ............................ 6-6
COMPONENTS
................................ 6-6
...... REMOVAL, INSPECTION AND INSTALLATION 6-7
... DISASSEMBLY. INSPECTION AND REASSEMBLY 6-8
.... STARTER ASSEMBLY INDIVIDUAL INSPECTION 6-14
1DZ-II Repair
Section 1.2.6

Toyota 8FGU15 Specifications

General

Model	8FGU15
Category	Forklifts
Engine Type	Internal Combustion
Load Capacity	3000 lbs
Lift Height	189 inches
Tire Type	Pneumatic
Engine	Toyota 4Y
Power Source	Gasoline
