TOYOTA MY22 TUNDRA 2022 - DASHCAM (Digital Video Recorder)
Procedure
10. Reinstall Overhead Console
(a) Re-connect harness for the overhead
console, be sure to test map lights and
sunroof control after battery. (Fig. 10-1)
(b) Check all console clips are in good
condition and are present on the
console. If any are still installed in the
roof of the vehicle and have separated
from the console, a panel tool with a
forked end can be used to pry them out,
then reinstall in the console. (Fig. 10-1)
(c) Reinstall the console by carefully by first
inserting the tabs towards the rear, then
rotating up to allow the front clips to
engage. Carefully push in to place to
lock. Check all corners for gaps. If
struggling, reposition wire harnesses and
try again. (Fig. 10-2)
(d) Note: Be careful aligning the clips to
holes to avoid damage.
11. Reinstall Sun Visor Clip
(a) Insert the clip bases on Driver side of the
map light console, it should snap
securely into place. (Fig. 11-1)
(b) Insert the visor clip starting with the
opening for the visor in the anti-clockwise
position similar to how it was removed,
then rotate clockwise to lock back into
place. (Fig. 11-1)
12. Reconnect Vehicle Battery
(a) Reconnect the Negative Battery Cable
and replace cover trim if necessary.
(b) Torque to 5.4 N•m (48 in•lbsf)
(c) CAUTION: Do not touch the positive
terminal with any tool.
13. Owner’s Manual
Place the Owner’s Manual
(“Quick Start Guide”) in the glove box with
the other vehicle owner’s manuals.

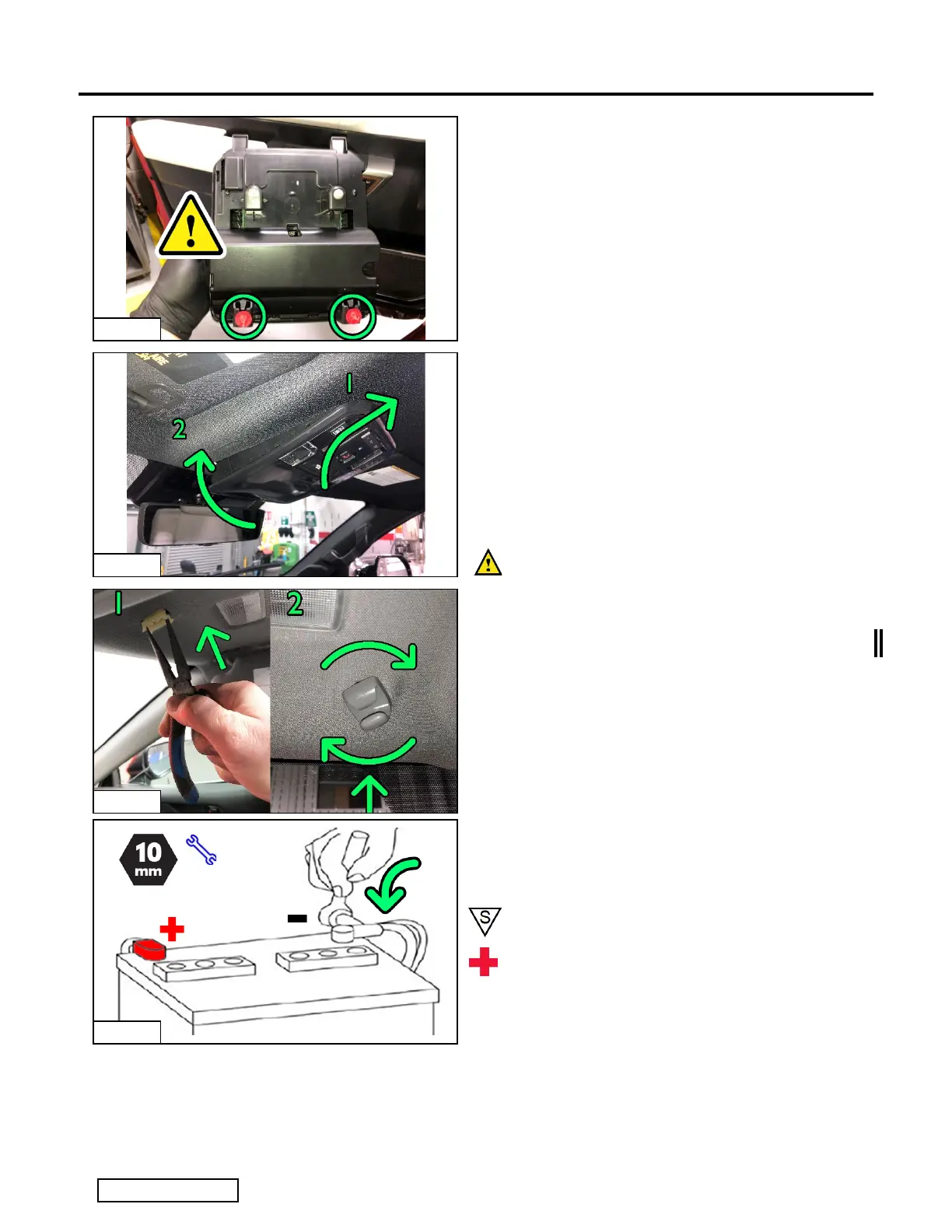

Fig. 12-1
