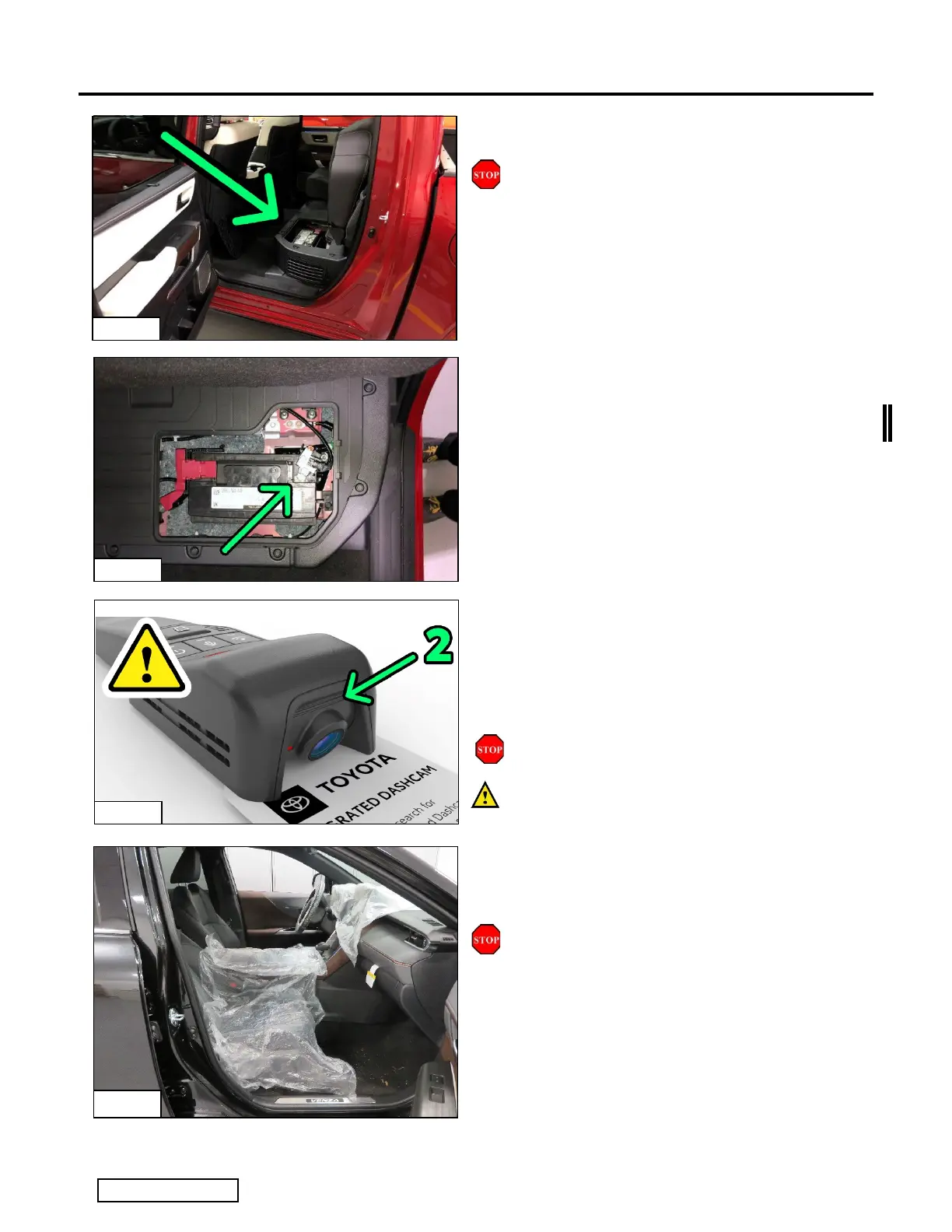

TOYOTA MY22 TUNDRA 2022 - DASHCAM (Digital Video Recorder)
Procedure
Hybrid Version Battery Disconnection:
(i) Do NOT touch or disconnect high voltage
systems on a Hybrid Vehicle. Only
disconnect the 12V Battery.
(j) The 12V Battery on the Hybrid vehicle is
located under the rear seat on the driver’s
side. (Fig. 1-4)
(k) Lift the rear seat base to the upright position.
(Fig. 1-4)
(l) Remove the smaller battery access panel
from under the seat using panel tool as
needed. (Fig 1-4, 1-5)
(m) Disconnect the Negative Cable by loosening
the 10 mm nut shown by the arrow (Fig. 1-5).
It is not necessary to fully remove this nut.
(n) Keep the Negative Cable away from the
battery terminal to avoid accidentally
reconnecting the 12V power if the cable falls
back to its natural shape.
2. Kit Preparation
(a) Check the Dashcam Kits for missing
contents or damage.
(b) Confirm Camera Angle Position – 2 visible
recessed lines should be seen below the
lens with the camera held in the as-installed
orientation. (Fig. 2-1, Note: Camera is upside
down in the image)
(c) If this is not correct, please see adjustment
instructions at the end of this document
(Step 17) NOTE: Do not try to force it as
there is a hidden lock screw on each side.
3. Vehicle Protection
(a) Apply Vehicle Protection to front seats,
dashboard, and center console.
(Fig. 3-1)
Fig. 2-1
Fig. 1-5
Fig. 3-1
Fig. 1-4
