TOYOTA MY22 TUNDRA 2022 - DASHCAM (Digital Video Recorder)
Procedure
6. Remove Roof Map Light Console
(a) Remove the roof console by pulling down
firmly on the forward edge (towards the
front of the vehicle). Pull down firmly to
release front 2 clips first then slide
forwards and downwards to release the
tabs at the rear (towards the back of the
vehicle) (Fig. 6-1)
(1) A plastic panel removal tool may be
used to pull down on the console.
(2) CAUTION: Do not pry against the
headliner or it will leave visible
damage.
(3) Note clips appearance in the image to
better understand the removal
process. (Fig. 6-2)
(b) Once fully detached, disconnect the wire
harness from the roof console and place
the console in a safe place to avoid
damage. (Fig. 6-2)
(c) Inspect the console clips and replace if
damaged (P/N: 90467-09240, 2 PCS)
7. Route Dashcam Harness through the
Headliner
(a) From the driver’s side of the windshield,
locate the indention in the front edge of
the headliner if available (Fig. 7-1)
(b) Route the Dash Cam pigtail through the
indention or similar area, and into the
headliner. Take care not to crease the
headliner in the process. (Fig. 7-2)

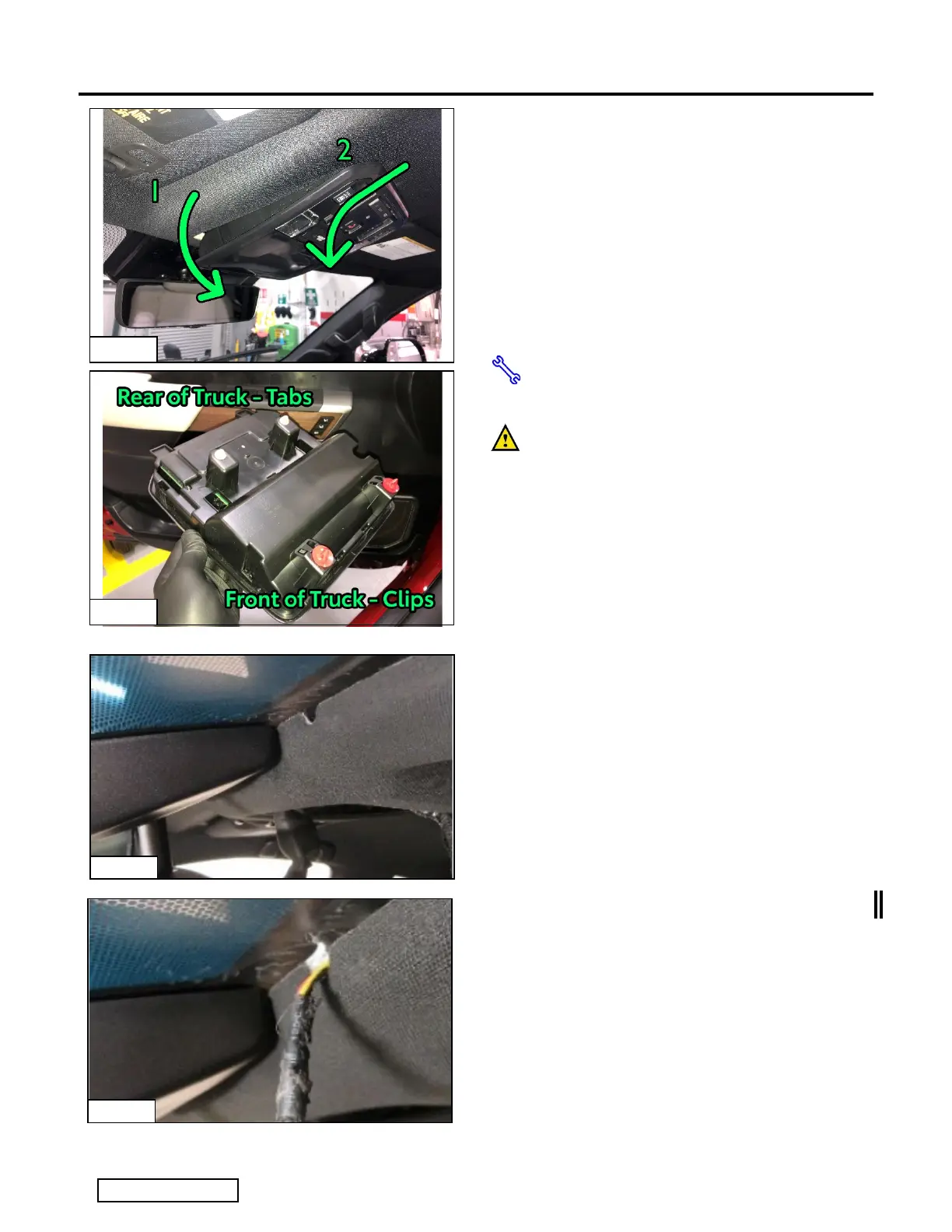

Fig. 6-1
Fig. 6-2
Fig. 7-1
Fig. 7-2
