TOYOTA VENZA 2021 - DASHCAM (Digital Video Recorder)
Procedure

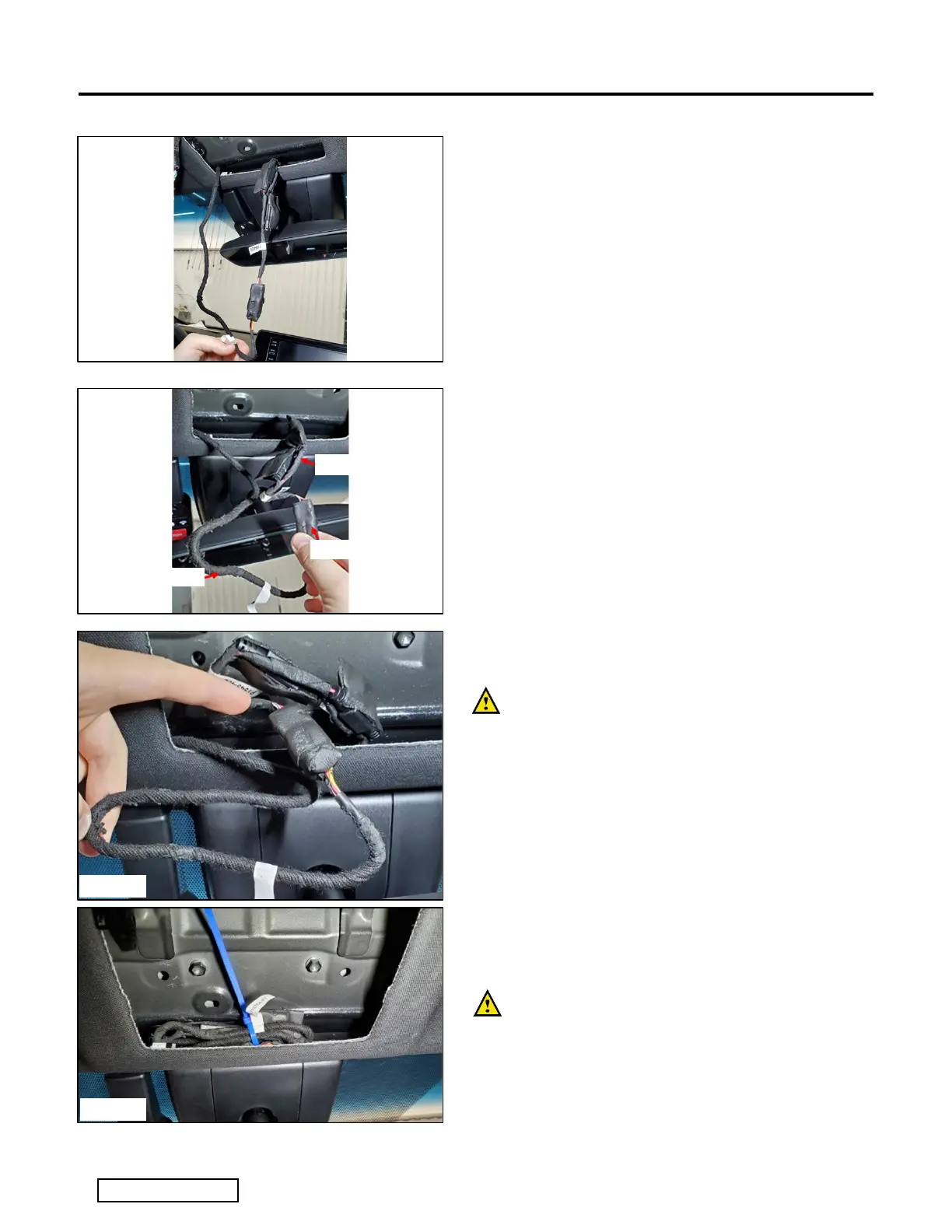

(b) Pull all slack through the headliner opening
and form a loop (Fig. 10-2).
(c) Wrap connector pair with foam tape
(Fig. 10-2).
(d) Wrap both in-line fuses with foam tape
(Fig. 10-2).
(e) Orient the wires roughly as shown. Take note
of which wire segment belongs to which part.
(f) Bundle the wires roughly as shown (Fig. 10-
3).
(g) Continue to gather wires into a smaller
bundle (Fig. 10-4).
NOTE: Keep the Y-harness on top of the
Dashcam harness.
(h) Wire tie the bundle and fit into open
headliner cavity. Take care not to cause
bulging in the headliner (Fig. 10-5).
NOTE: Some adjustment to the bundle may
be necessary to fit bundle without bulging the
headliner.
