TP-Link AV200 User Manual

TL-PA211 AV200 Powerline Adapter
7
2.6 Hardware Connection – Internet
This section describes how to connect the Powerline Adapter into your existing ADSL broadband
connection via ADSL Ethernet port. Follow the procedures described below to connect the Powerline
Adapter to your ADSL broadband connection:
1． Connect one end of the provided Ethernet (RJ45) cable to the Powerline Adapter’s Ethernet port.
2． Connect the other end of the Ethernet (RJ45) cable to an available Ethernet port of your ADSL
broadband Router.
3． Plug the Powerline Adapter into a wall socket next to the computer.
4． Turn on your computer.
5． Check and confirm that the Power LED
, Ethernet LED , and Powerline LED on the
Powerline Adapter are ON.

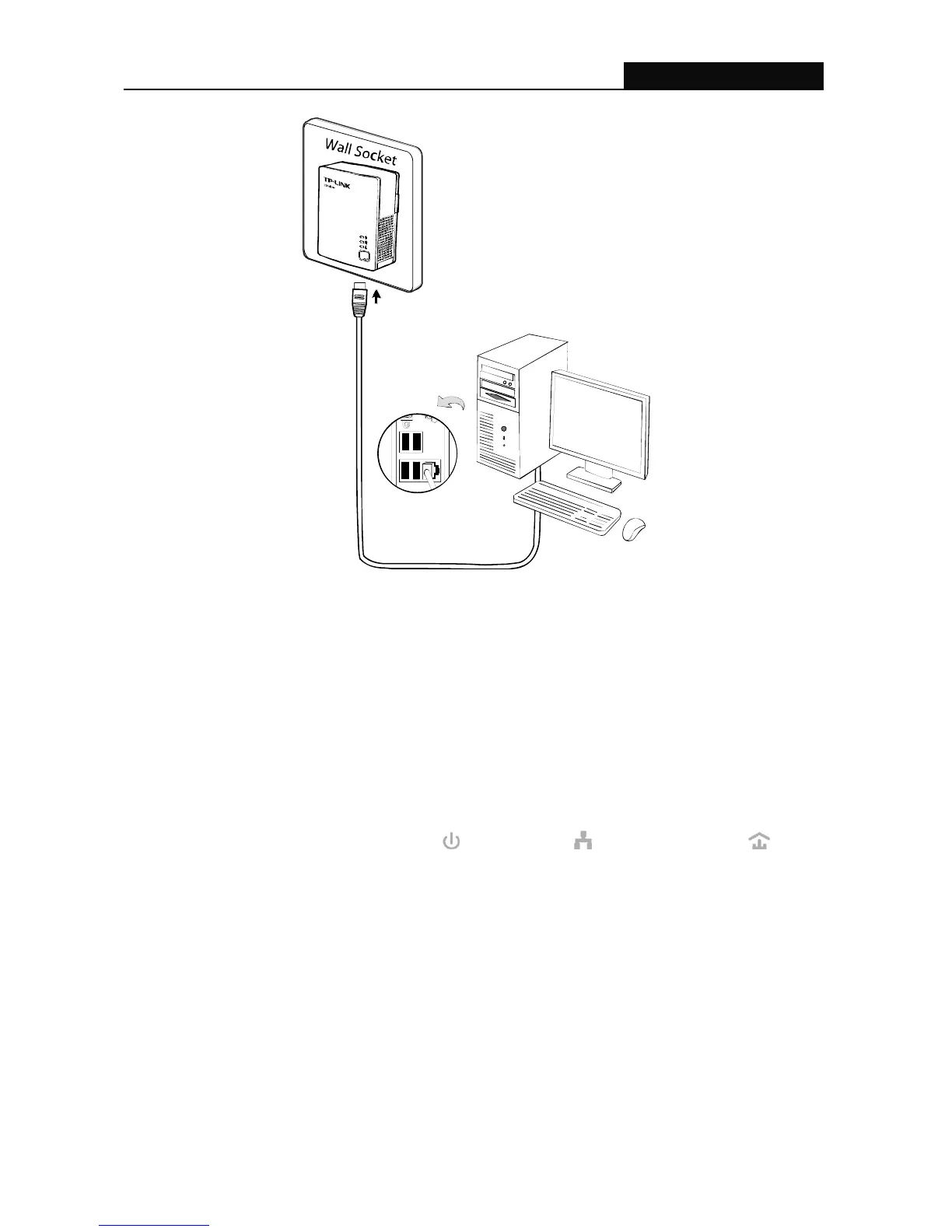

The hardware connection mechanism is shown below:

TP-Link AV200 Specifications

General

Wi-Fi	No
Modulation	OFDM
Power plug	-
Ethernet LAN	Yes
PowerLine standard	HomePlug AV
Security algorithms	128-bit AES
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	200 Mbit/s
Maximum operating distance	300 m
Ethernet LAN interface type	Fast Ethernet
Product color	White
Sustainability certificates	RoHS
Power consumption (typical)	1.6 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Quantity per pack	2 pc(s)

Weight and Dimensions

Depth	58 mm
Width	95 mm
Height	42 mm
