TP-Link AV200 User Manual

TL-PA211 AV200 Powerline Adapter
17

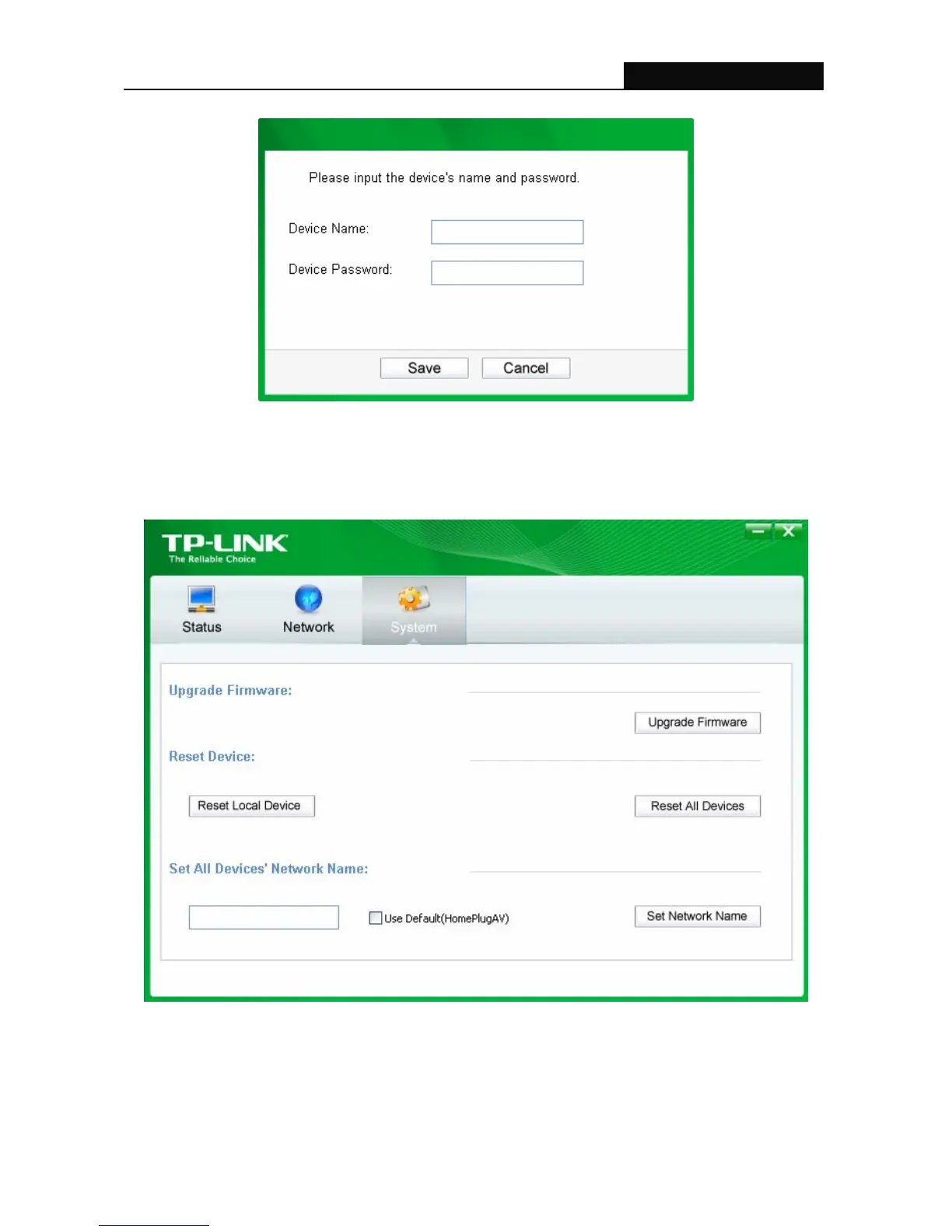

4.3 System
The System tab window is for some basic settings of the adapter. On this tab window, you can upgrade
the firmware to the latest version, reset the adapter’s settings to the factory defaults and configure all
adapters’ network names.
4.3.1 Upgrade Firmware
C
lick the Upgrade Firmware button to upgrade the version of the firmware for the adapter and the
following dialog will pop up.

TP-Link AV200 Specifications

General

Wi-Fi	No
Modulation	OFDM
Power plug	-
Ethernet LAN	Yes
PowerLine standard	HomePlug AV
Security algorithms	128-bit AES
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Maximum data transfer rate	200 Mbit/s
Maximum operating distance	300 m
Ethernet LAN interface type	Fast Ethernet
Product color	White
Sustainability certificates	RoHS
Power consumption (typical)	1.6 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Quantity per pack	2 pc(s)

Weight and Dimensions

Depth	58 mm
Width	95 mm
Height	42 mm
