TP-Link Tapo C320WS User Manual

11
Install a microSD Card
Follow the steps below to install the microSD card for local recording, or follow the installation video at https://www.tp-link.com/support/setup-video/.
You can go to
Camera Settings > microSD Card in the Tapo app to check the card status or format your card.

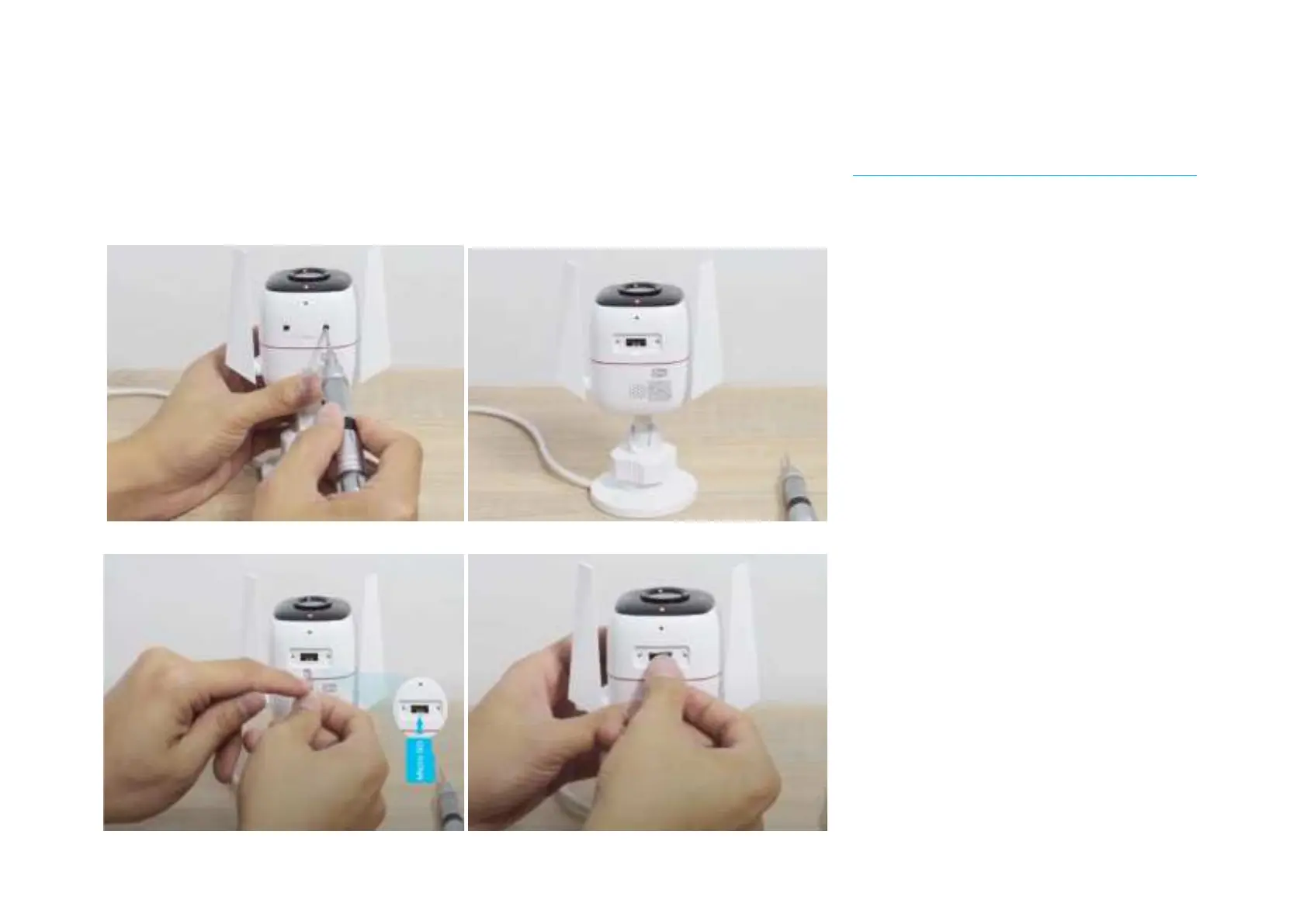

1. Loosen the screws on the back panel and remove the cover.
2. Identify the direction of the microSD card and carefully insert the card into the slot. Push in the card until you hear a clicking sound.

TP-Link Tapo C320WS Specifications

General

Type	IP security camera
Alarm input/output	Yes
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Bluetooth	-
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s
Total megapixels	4 MP
Maximum resolution	2160 x 1440 pixels
Video formats supported	H.264
Sustainability certificates	CE
Mobile operating systems supported	Android 10, Android 10.0, Android 4.4, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 14.5, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	30 m
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-20 - 45 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Form factor	Bullet
Mounting type	Wall
Product color	White
LED indicators	System
AC input voltage	100 - 240 V
DC output current	0.6 A
DC output voltage	9
Power source type	AC, DC
AC input frequency	50 - 60 Hz
Number of sensors	1
Optical sensor size	1/3 \
Fixed focal length	3.18 mm
Audio system	2-way
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Harmonized System (HS) code	85258900

Weight and Dimensions

Depth	103.4 mm
Width	142.3 mm
Height	64.3 mm
Package depth	201.5 mm
Package width	189.5 mm
Package height	92.5 mm
Package weight	490 g
