Chapter 4 Software Configuration
This User Guide recommends using the “Quick Installation Guide” for first-time installation. For
advanced users, if you want to know more about this device and make use of its functions
adequately, maybe you will get help from this chapter to configure the advanced settings through
the Web-based Utility.
After your successful login, you can configure and manage the device. There are main menus on
the top of the Web-based Utility; submenus will be available after you click one of the main menus.
On the center of the Web-based Utility, there are the detailed configurations or status information.
To apply any settings you have altered on the page, please click the SAVE button.
4.1 Status
Choose “Status”, you can see the next submenus: Device Info, System Log and Statistics.
Click any of them, and you will be able to configure the corresponding function.

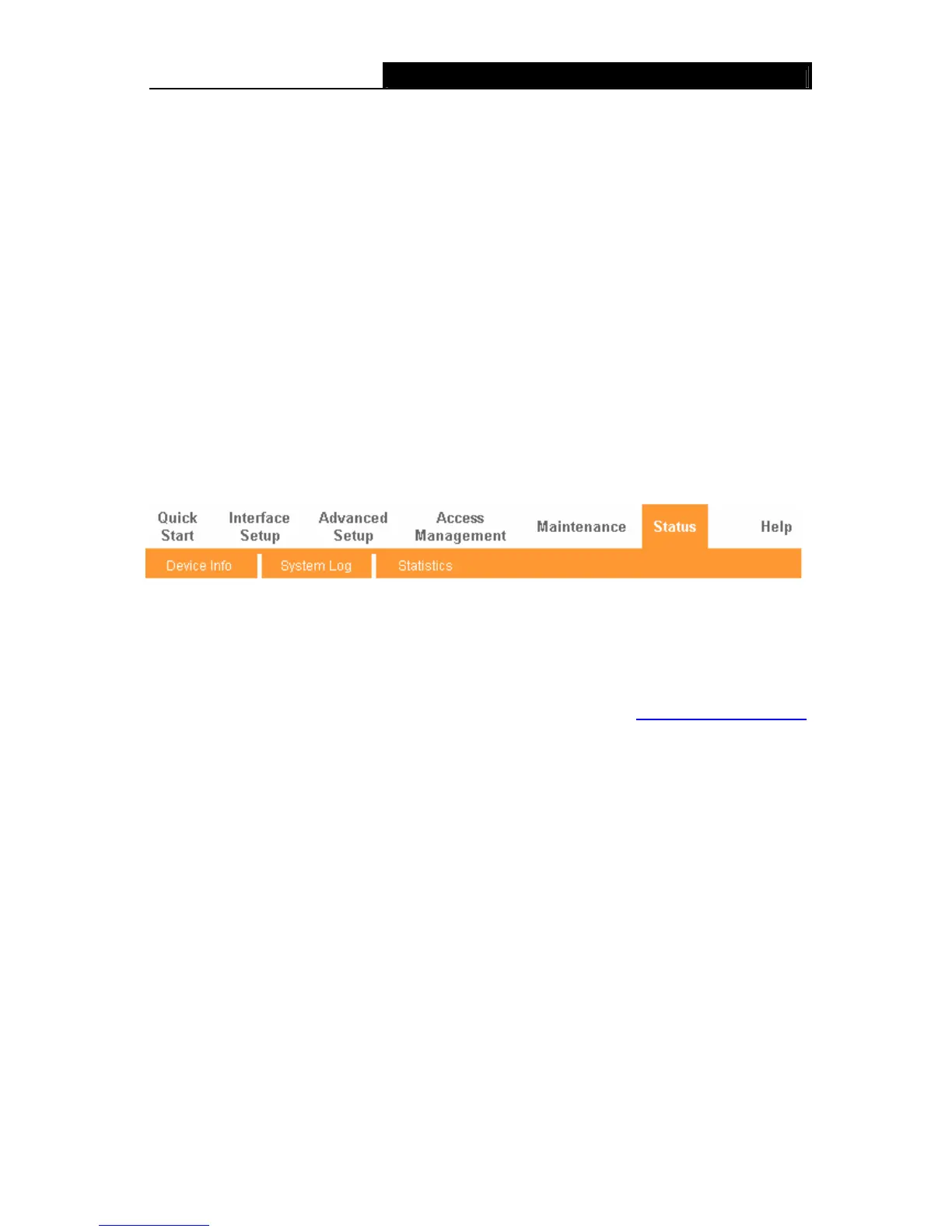

Figure 4-1
Click any of them, and you will be able to view the corresponding information.
4.1.1 Device Info
Back to LED Explanation
Choose “Status→Device Info” menu, and you will be able to view the device information,
including LAN, WAN and ADSL. The information will vary depending on the settings of the Router
configured on the Interface Setup screen.

TP-Link TD-W8961ND Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Bandwidth	2.4835 GHz
Input current	1 A
Input voltage	12 V
Rack mounting	No
Dimensions (WxDxH)	195 x 135 x 39 mm
Filtering description	IP, Packet, Application, URL
Operating temperature (T-T)	32 - 104 °F
Compliance industry standards	IEEE 802.3, 802.3u
WLAN data transfer rates supported	300 Mbit/s
Non-operating relative humidity (non-condensing)	10 - 90 %
DHCP client	-
Supported network protocols	PPPoE, PPPoA, IPoA
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.4, ITU-T G.992.5
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi

Weight and Dimensions

Weight	- g
