TD-W8961ND 300Mbps Wireless N ADSL2+ Modem Router User Guide
17

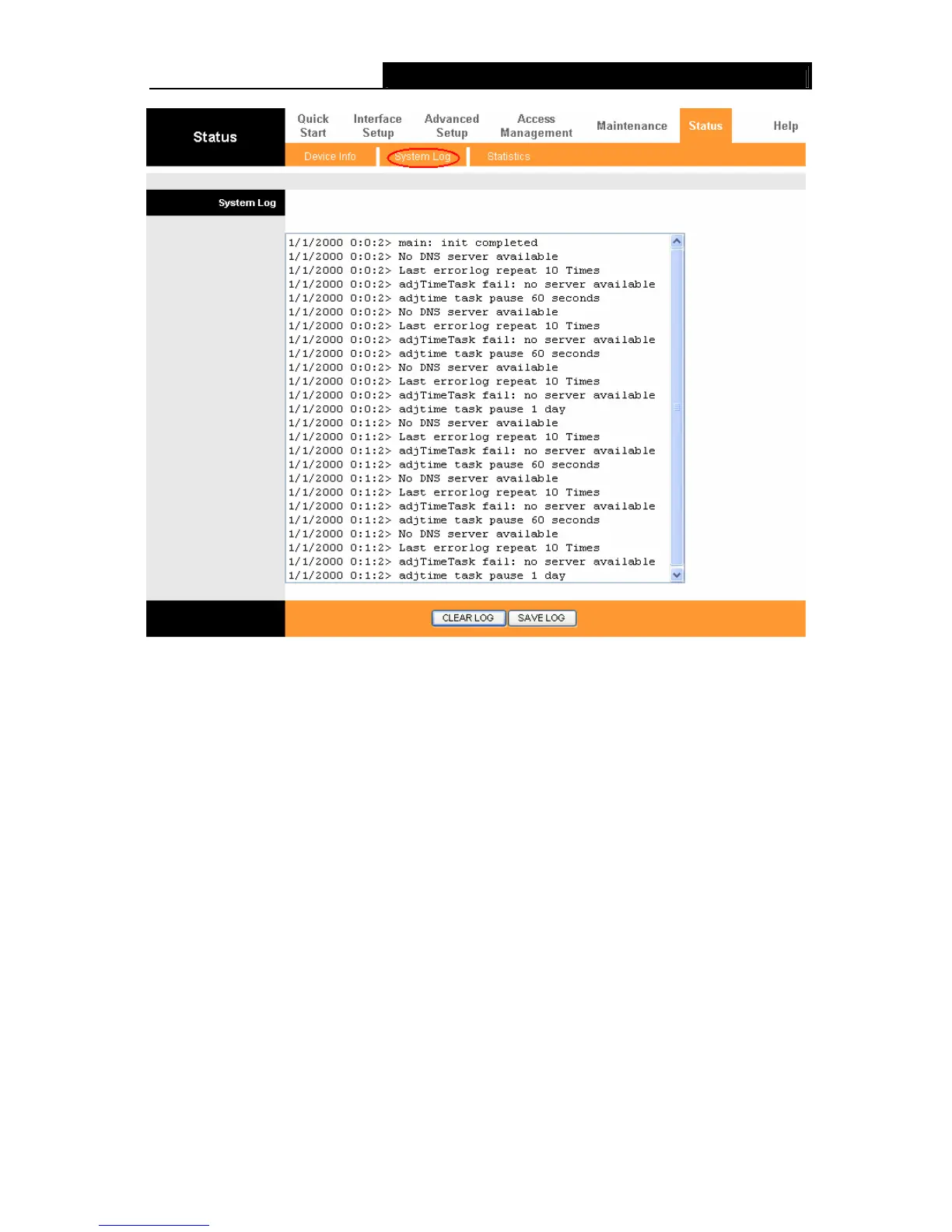

Figure 4-3
The Router can keep logs of all traffic. You can query the logs to find what happened to the
Router.
Click the CLEAR LOG button to clear the logs.
Click the SAVE LOG button to save the logs.
4.1.3 Statistics
Choose “Status→Statistics” menu, and you will be able to view the network traffic over Ethernet,
ADSL and WLAN.

TP-Link TD-W8961ND Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Bandwidth	2.4835 GHz
Input current	1 A
Input voltage	12 V
Rack mounting	No
Dimensions (WxDxH)	195 x 135 x 39 mm
Filtering description	IP, Packet, Application, URL
Operating temperature (T-T)	32 - 104 °F
Compliance industry standards	IEEE 802.3, 802.3u
WLAN data transfer rates supported	300 Mbit/s
Non-operating relative humidity (non-condensing)	10 - 90 %
DHCP client	-
Supported network protocols	PPPoE, PPPoA, IPoA
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.4, ITU-T G.992.5
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi

Weight and Dimensions

Weight	- g
