¾ Connection: For PPPoA/PPPoE connection, you can select Always on or Connect
on-Demand or Connect Manually. Connect on demand is dependent on the traffic. If there
is no traffic (or Idle) for a pre-specified period of time), the connection will tear down
automatically. And once there is traffic send or receive, the connection will be automatically
on.
¾ Static/Dynamic IP Address: For PPPoA/PPPoE connection, you need to specify the public
IP address for this ADSL Router. The IP address can be either dynamically (via DHCP) or
given IP address provided by your ISP. For Static IP, you need to specify the IP address,
Subnet Mask and Gateway IP address.
¾ Default Route: You should select Yes to configure the PVC as the default gateway to
internet from this device.
¾ MAC Spoofing: Enable the MAC Spoofing, and enter a MAC address to configure the WAN
port. It makes your inside network appear as a device with this MAC address to the outside
world.
4) Bridge Mode
If you select this type of connection, the modem can be configured to act as a bridging device
between your LAN and your ISP. Bridges are devices that enable two or more networks to
communicate as if they are two segments of the same physical LAN.

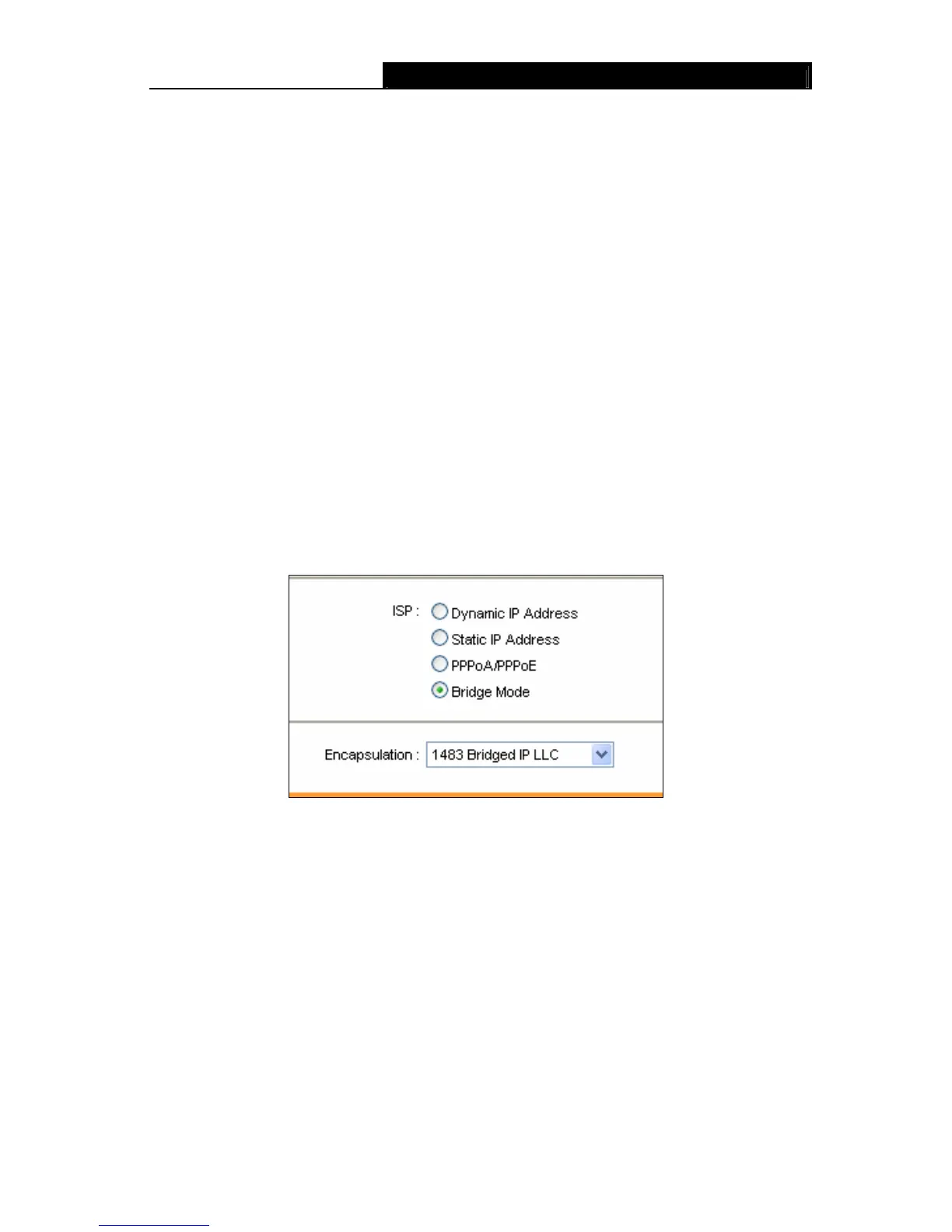

Figure 4-10
)
Note:
After you finish the Internet configuration, please click SAVE to make the settings take effect.
4.3.2 LAN
Choose “Interface Setup→LAN” menu, and you will see the LAN screen (shown in Figure 4-11).
Please configure the parameters for LAN ports according to the descriptions below.

TP-Link TD-W8961ND Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Bandwidth	2.4835 GHz
Input current	1 A
Input voltage	12 V
Rack mounting	No
Dimensions (WxDxH)	195 x 135 x 39 mm
Filtering description	IP, Packet, Application, URL
Operating temperature (T-T)	32 - 104 °F
Compliance industry standards	IEEE 802.3, 802.3u
WLAN data transfer rates supported	300 Mbit/s
Non-operating relative humidity (non-condensing)	10 - 90 %
DHCP client	-
Supported network protocols	PPPoE, PPPoA, IPoA
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.4, ITU-T G.992.5
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi

Weight and Dimensions

Weight	- g
