TD-W8961ND 300Mbps Wireless N ADSL2+ Modem Router User Guide
65
Step 2: Click the UPGRADE button to complete.

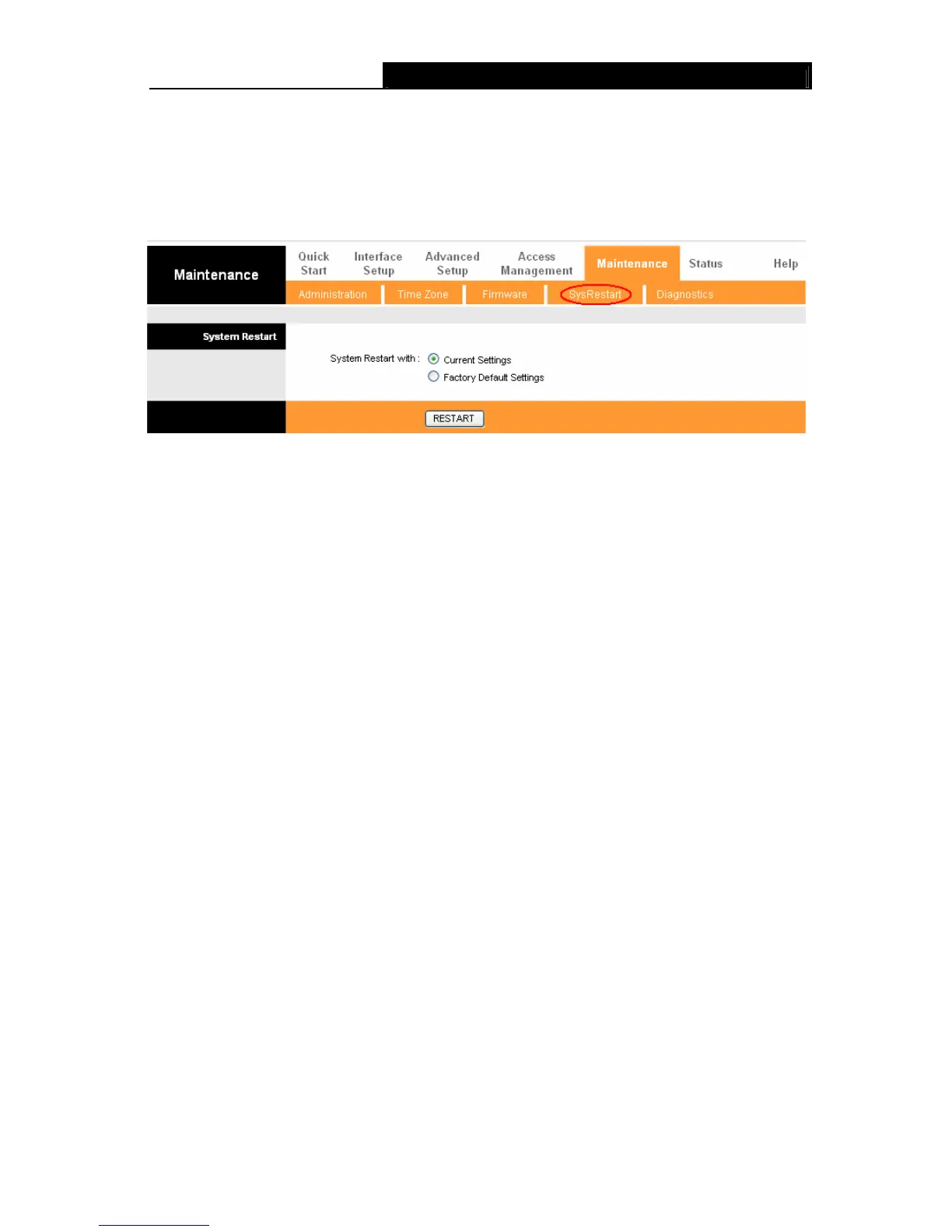

4.6.4 SysRestart
Choose “Maintenance→SysRestart”, you can select to restart the device with current settings
or restore to factory default settings in the screen (shown in Figure 4-55).
Figure 4-55
4.6.5 Diagnostics
Choose “Maintenance→Diagnostics”, you can view the test results for the connectivity of the
physical layer and protocol layer for both LAN and WAN sides in the screen (shown in Figure 4-56).

TP-Link TD-W8961ND Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Bandwidth	2.4835 GHz
Input current	1 A
Input voltage	12 V
Rack mounting	No
Dimensions (WxDxH)	195 x 135 x 39 mm
Filtering description	IP, Packet, Application, URL
Operating temperature (T-T)	32 - 104 °F
Compliance industry standards	IEEE 802.3, 802.3u
WLAN data transfer rates supported	300 Mbit/s
Non-operating relative humidity (non-condensing)	10 - 90 %
DHCP client	-
Supported network protocols	PPPoE, PPPoA, IPoA
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.4, ITU-T G.992.5
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi

Weight and Dimensions

Weight	- g
