TP-Link TD-W8961ND User Manual

TD-W8961ND 300Mbps Wireless N ADSL2+ Modem Router User Guide
48

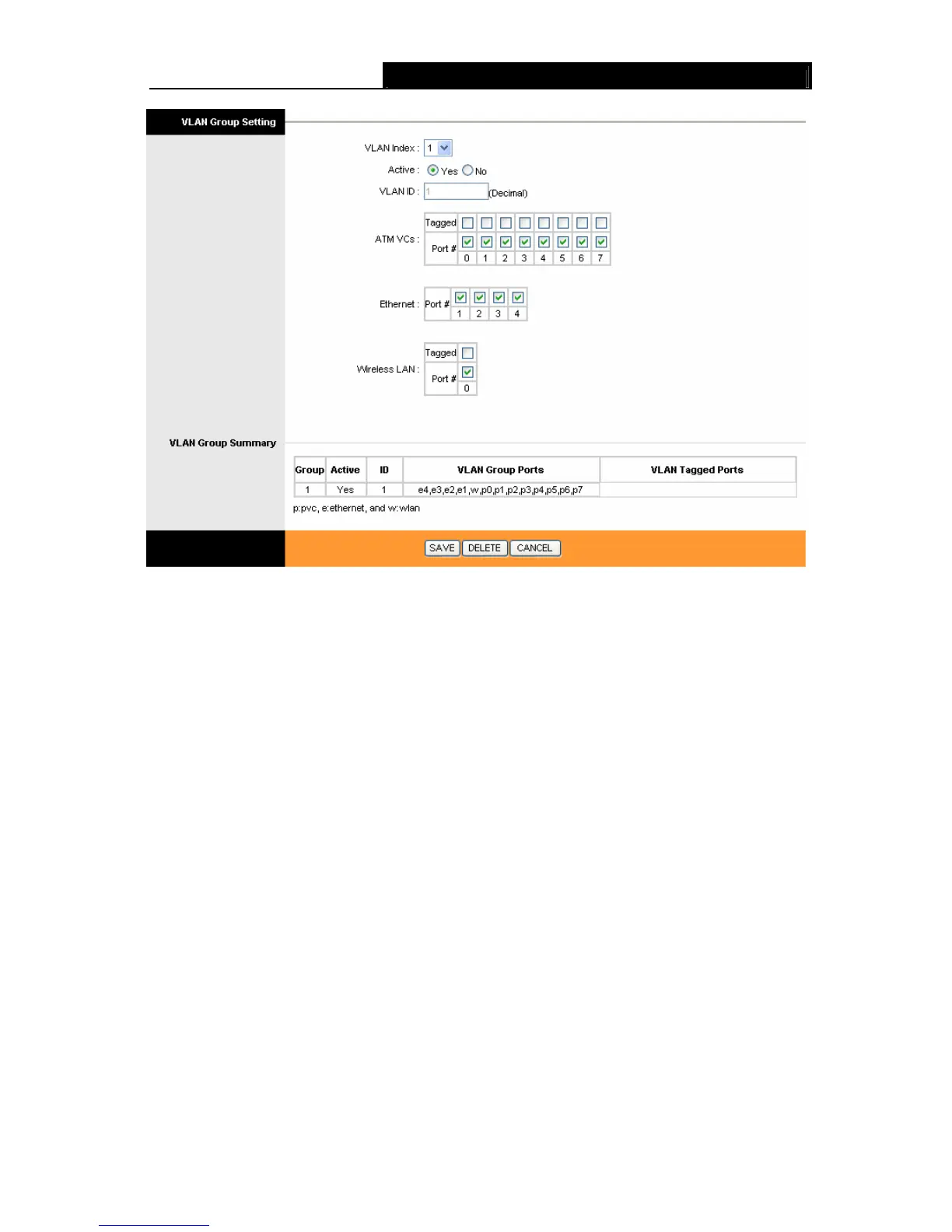

Figure 4-35
¾ VLAN Index: Select the VLAN index for this VC. You can specify 8 groups in maximum.
¾ VLAN ID: This indicates the VLAN group.
¾ ATM VCs: Select the ATM VCs as members of VLAN, and if you leave the Tagged blank, the
tag in frames will be deleted when transmitted from the VC.
¾ Ethernet: Select the Ethernet port as a member of VLAN.
¾ Wireless LAN: Select the wireless LAN port as a member of VLAN, and if you leave the
Tagged blank, the tag in frames will be deleted when transmitted from the port.
¾ VLAN Group Summary: This displays the information about the VLAN Groups.
4.4.6 ADSL
Choose “Advanced Setup→ADSL”, you can select the ADSL Type and ADSL Mode in the next
screen. The ADSL feature can be selected when you meet the physical connection problem.
Please check the proper settings with your Internet service provider.

TP-Link TD-W8961ND Specifications

General

VPN support	PPTP, L2TP, IPSec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Bandwidth	2.4835 GHz
Input current	1 A
Input voltage	12 V
Rack mounting	No
Dimensions (WxDxH)	195 x 135 x 39 mm
Filtering description	IP, Packet, Application, URL
Operating temperature (T-T)	32 - 104 °F
Compliance industry standards	IEEE 802.3, 802.3u
WLAN data transfer rates supported	300 Mbit/s
Non-operating relative humidity (non-condensing)	10 - 90 %
DHCP client	-
Supported network protocols	PPPoE, PPPoA, IPoA
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90 %
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.4, ITU-T G.992.5
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	3 dBi
