Installation - Mechanical
CLCH-SVX07K-EN 33
13. For unit sizes 3-30, bolt the unit base frames together
using 5/16-inch bolts (see Figure 40).
14. For unit sizes 35-120, bolt the unit base frames together
using ½-threaded rod (see Figure 40).
15. For sizes 66-120 only, bolt through the wedge blocks
using a ½-threaded rod (see Figure 40). Alternate
between tightening on the lifting lug bolts and wedge
block bolts until the shipping section comes together.
16. Use straps and come-alongs to compress the
gasketing and pull the sections together along the
height of the unit.
Note: Wedge blocks are used to assemble shipping splits
together. Only one set of wedge blocks is shipped
with each unit. Once the shipping split has been
assembled, remove the wedge blocks and use for
the next shipping split.

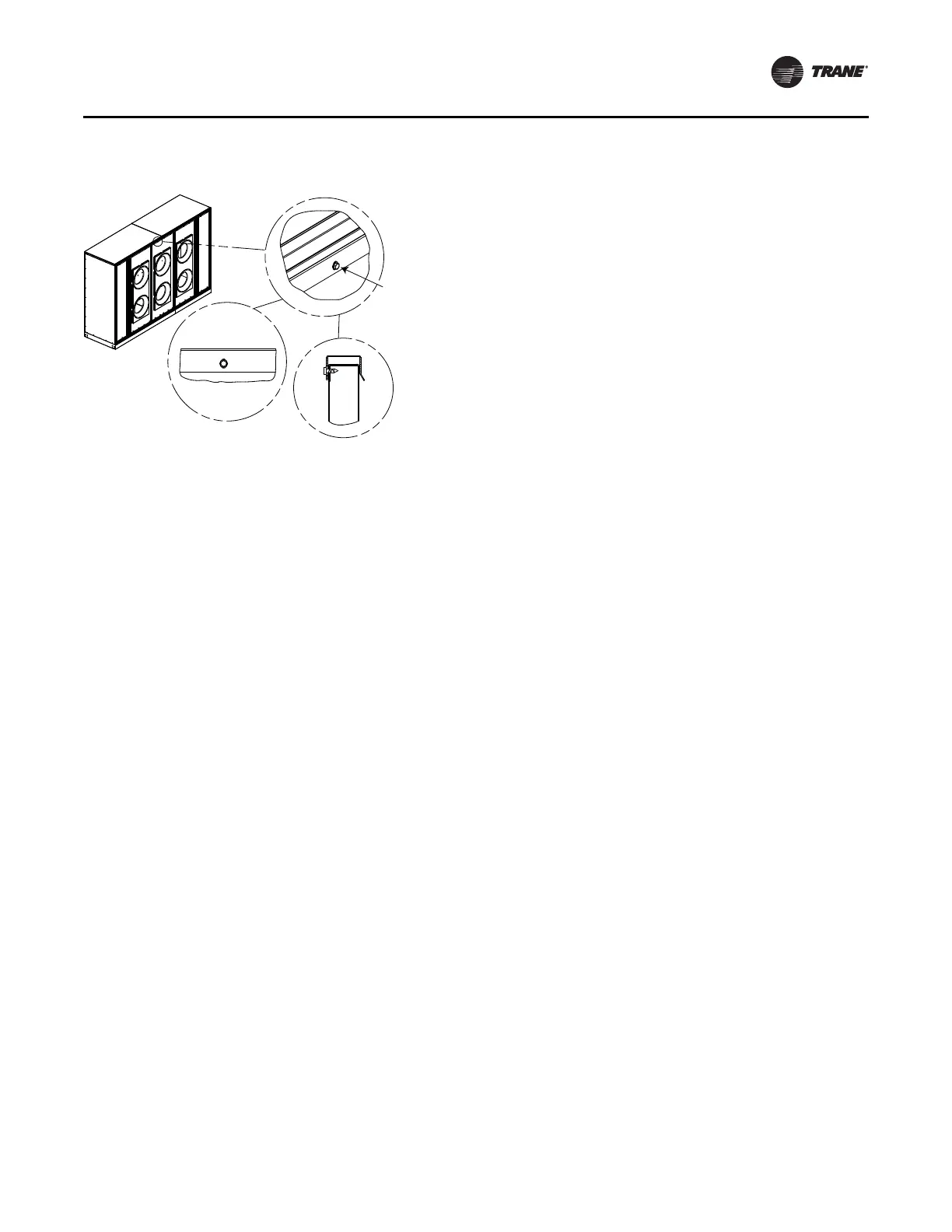

Figure 39. Adjust height of roof by loosening screws
Loosen screws
along width of
unit for roof
height
adjustment.
