Furnace Combustion Air Exhaust Options
Note: Default is left side for electric and gas connections.
The following sections give instructions for the
different furnace orientations and the options for
venting the exhaust combustion air.
IImmppoorrttaanntt:: When looking at the different orientations,
the direction of the combustion air exhaust
in the illustration’s description is after the
furnace has been rotated, if needed.

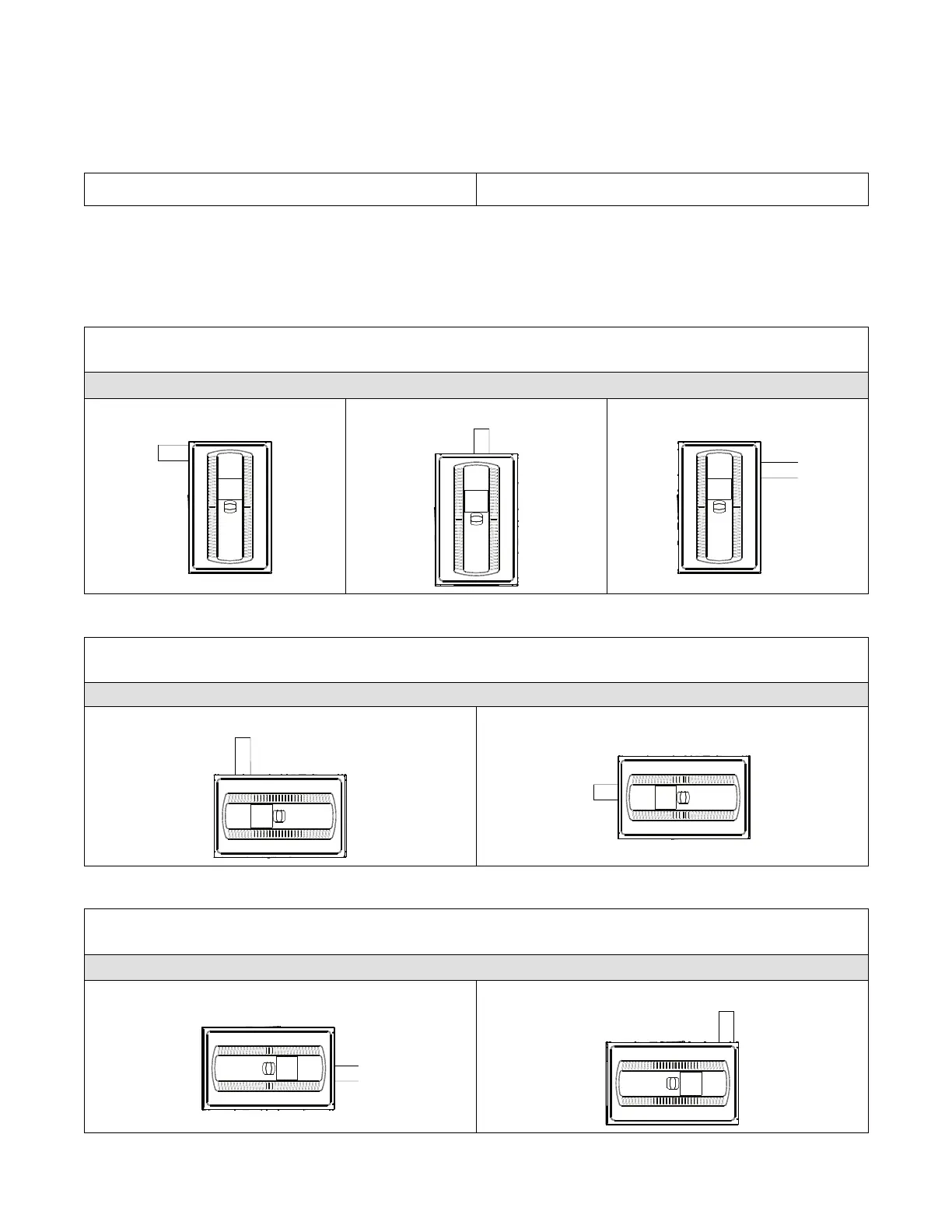

Table 13. Venting Options for Upflow Applications
Refer to the illustrations below to find the approved venting options for upflow furnace.
Important: The exhaust must be vented to the outdoors.
Upflow Orientation or Installation
Vented through left side.
Vented out top.
Vented through right side.
Table 14. Venting Options for Horizontal Left Applications
Refer to the illustrations below to find the approved venting options for horizontal left furnace.
Important: The exhaust must be vented to the outdoors.
Horizontal Left Orientation or Installation
Vented out top.
Vented through left side.
Table 15. Venting Options for Horizontal Right Applications
Refer to the illustrations below to find the approved venting options for horizontal right furnace.
Important: The exhaust must be vented to the outdoors.
Horizontal Right Orientation or Installation
Vented through right side.
Vented out top.
To Next Page
