L8V1-SVX001-1A-EN
9
Parts List

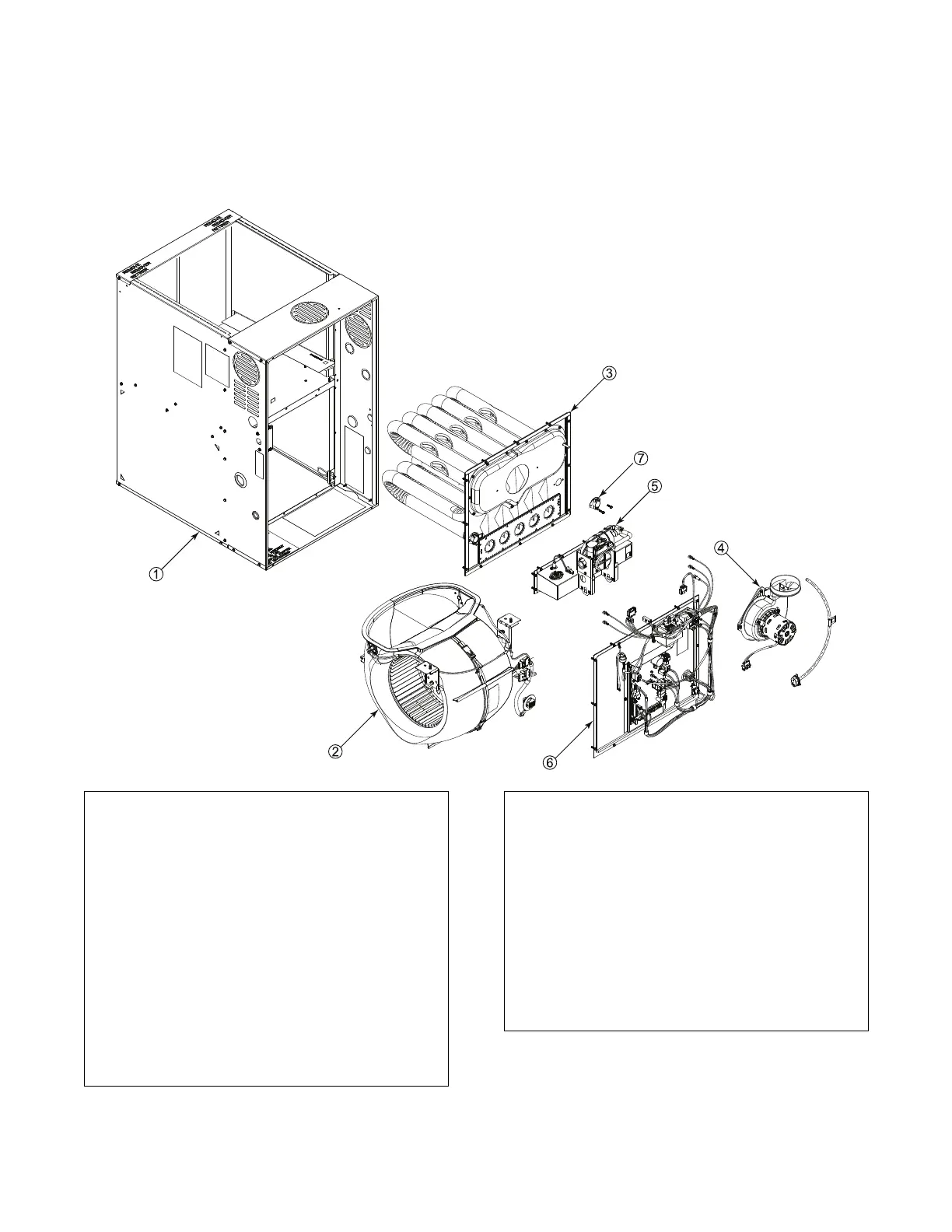

Figure 1. L8V1 Parts Exploded View
1. Furnace cabinet assembly
a. Blower deck
b. Panel loop interlock (door switch)
2. Blower assembly
a. Variable speed motor
b. Vortica blower housing
c. RAF – Reverse airflow limit switches
3. Heat exchanger assembly
a. Burner tube insulation sleeves
b. Burner box insulation
c. Flue collector box
4. Inducer assembly
a. Combustion motor
b. Pressure transducer
5. Burner assembly
a. Ignitor
b. Flame sensor
c. Burner box limit
d. Orifice
e. J-tube
6. Control assembly
a. IFC - Integrated Furnace Control
b. Transformer
c. Motor choke(B80)
d. Wire assemblies
7. Primary limit switch
