8
L8V1-SVX001-1A-EN
Accessories
Table 1. Accessories
Model Number
Description
Use with
BAYHANG
Horizontal Hanging Kit
All Furnaces
BAYLIFTB
Dual Return Kit (B size extension)
B Cabinet Furnaces
BAYLIFTC
Dual Return Kit (C size extension)
C Cabinet Furnaces
BAYSF1165AA
(a)
1” SlimFit Box with MERV 4 Filter All Furnaces
BAYSF1255BA 1” SlimFit Filter and Insulated Frame
All furnaces when used in side return application
B Cabinet furnaces only when in bottom return application
FLRSF1255
1” Filter replacement (Qty 12)
BAYSF1255BA
BAYVENT800B
Masonry Chimney Vent Kit
All furnaces
PIP02095
U fitting for gas piping All Furnaces for right hand gas entry
BAYHALTMOD0008
High Altitude Module
L8V1A040U3VSB*
BAYHALTMOD0009
High Altitude Module
L8V1A060U3VSB*
BAYHALTMOD0010
High Altitude Module
L8V1B080U4VSB*
BAYHALTMOD0011
High Altitude Module
L8V1C100U5VSB*
BAYFLTR203 Horizontal Filter Kit
B Cabinet Modular Blowers in Downflow/Horizontal
BAYFLTR204 Horizontal Filter Kit
C Cabinet Modular Blowers in Downflow/Horizontal
BAYFLTR205 Horizontal Filter Kit
D Cabinet Modular Blowers in Downflow/Horizontal
(a)
Airflow greater than 1600 CFM requires dual returns

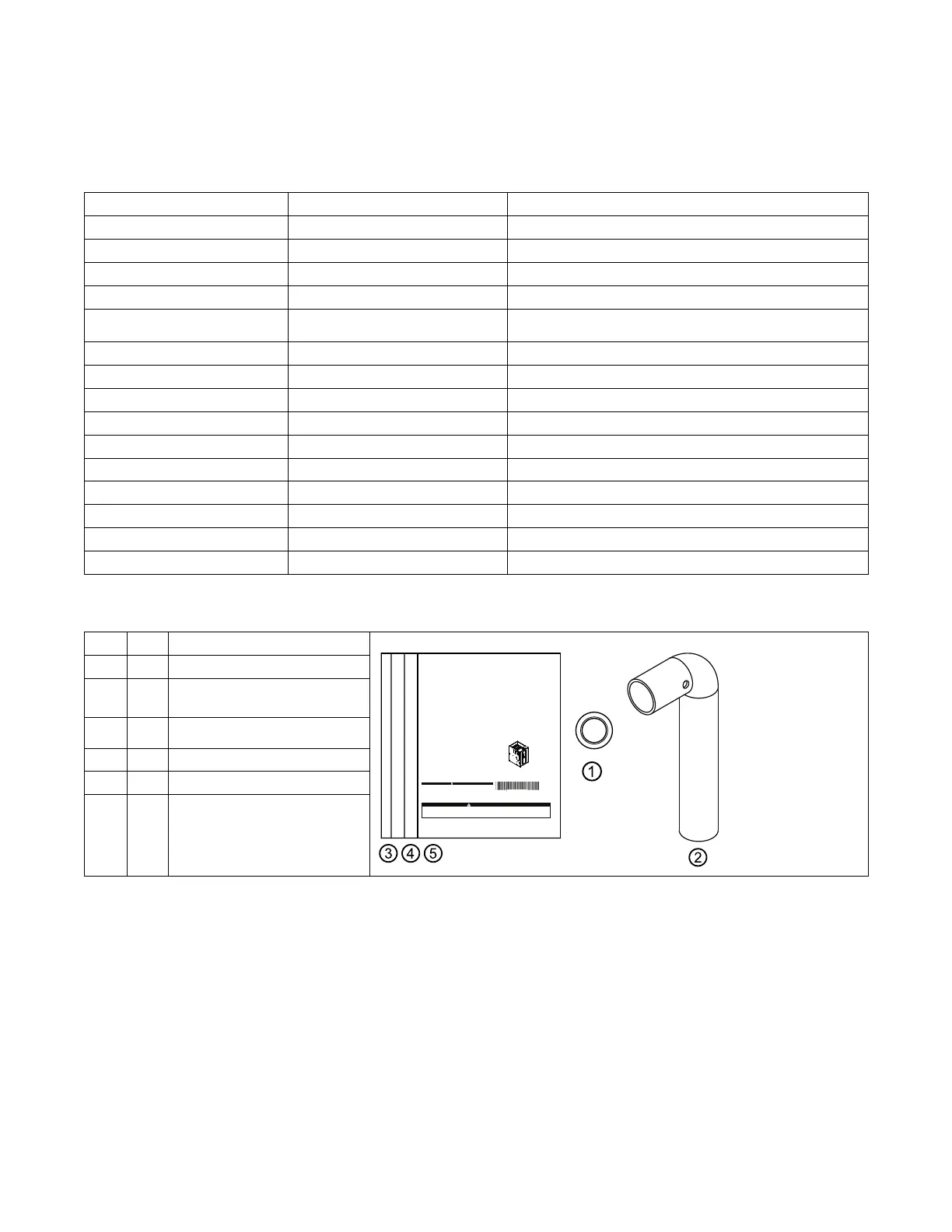

Document Pack Contents
Item Qty. Description
SSAAFFEETTYY WWAARRNNIINNGG
Only qualified personnel should install and service the equipment. The installation, starting up, and servicing of heating, ventilating, and air-conditioning
equipment can be hazardous and requires specific knowledge and training. Improperly installed, adjusted or altered equipment by an unqualified person
could result in death or serious injury. When working on the equipment, observe all precautions in the literature and on the tags, stickers, and labels that
are attached to the equipment.
May 2023
LL88VV 11--SSVVXX 000011--11AA --EENN
Upow/Horizontal Left/Right
Gas-Fired, Single Stage Induced Draft Furnace with Variable
Speed Blower Motor
UU ppffll ooww,, HHoorriizzoonnttaall RR iigghh tt//LLeeff tt
(For use with Natural Gas only.)
Single Stage
L8V1A040U3VSBA
L8V1A060U3VSBA
L8V1B080U4VSBA
L8V1C100U5VSBA
NNoottee:: This product complies with SJVUAPCD 4905 and SCAQMD 1111with
NOx levels below 14 ng/J.
NNoottee:: Graphics in this document are for
representation only. Actual model may
differ in appearance.
WWAARRNN II NNGG
FFIIRREE HHAAZZAARRDD!!
FF aa iilluurree ttoo ffoo llllooww tthhiiss WWaarr nn iinnggccoouulldd rreessuullttiinn pp rrooppeerrttyy ddaammaagg ee ,,sseevveerree pp eerrssoonn aalliinnjjuurryy,,oorrddeeaa tthh..
TT hh iiss WWaarrnniinn gg aapppp lliieessttoo iinnssttaa llllaattiioonnss wwiitthh aaffllaa mm mmaabb llee rreeffrriiggeerraattiioonn ssyysstteemm..TThheeffuurrnnaaccee mmuussttbbeeppoowweerreedd
eexxcceeppttffoorrsseerrvv iiccee.. TThheeffuurrnnaaccee sshhaallllbbeeiinnssttaallllee dd aannddccoonnnn eeccttee dd aaccccoo rrddiinnggttoo iinnssttaallllaattiioonn iinnssttrruuccttiioonn ss aa nn dd
wwiirriinn gg ddiiaaggrraammss tthhaattaarree pprroovviiddeeddwwiitthh tthhee ee vvaapp oo rraattoorrccooiill..
L8V1-SVX001-1A-EN
Installation, Operation, and Maintenance
1 1 Plug – Gas
2 1 Combustion Air Duct
Note: For L8V1C100U5VS Only
(a)
3 1 Installation, Operation, and
Maintenance
4 1 Owner Guide
5 1 Limited Warranty
6 2 Tinnerman Clips (not pictured)
Note: Tinnerman Clips should be
kept with unit and are used
if the door panel flange hole
(s) becomes stripped.
(a)
Future C100 furnaces with the Burner Box limit on the bottom DO NOT require the Combustion Air Duct.
