Maintenance and Adjustment
Sprint GT

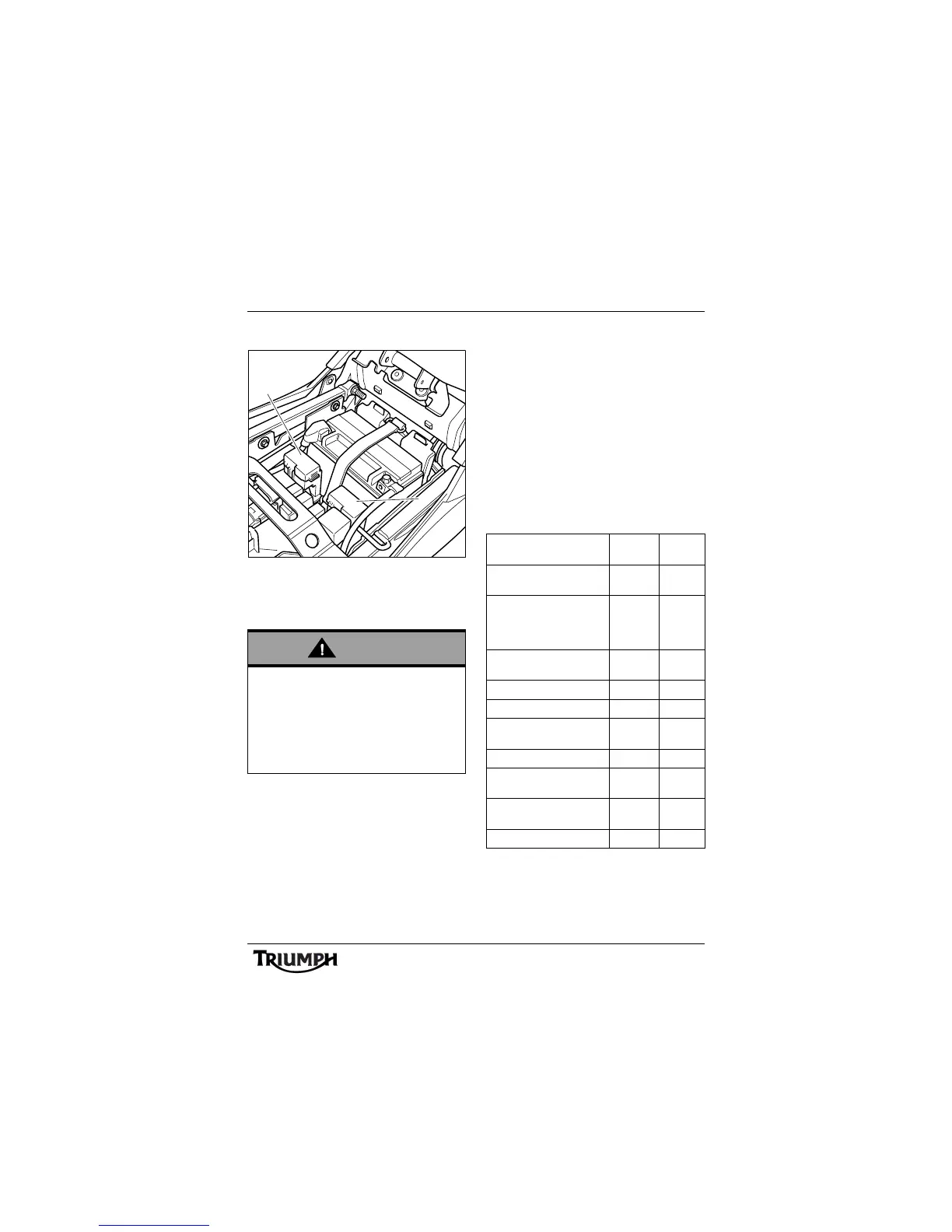

1. Left fuse box
2. Right fuse box
The fuse boxes are located beneath the seat.
Remove the seat to access the fuse boxes.
Fuse Identification - Sprint ST
The fuses can be identified by a number
moulded into the fusebox housing, adjacent
to each fuse, as shown below. These numbers
correspond to the numbers given in the table
below. Fuses without an identification
number are spare, and should be replaced if
used.
A blown fuse is indicated when all of the
systems protected by that fuse become
inoperative. When checking for a blown fuse,
use the table below to establish which fuse
has blown.
Always replace blown fuses with new ones
of the correct rating (as specified on the
fuse box cover) and never use a fuse of
higher rating. Use of an incorrect fuse
could lead to an electrical problem,
resulting in motorcycle damage, loss of
motorcycle control and an accident.
Circuit Protected Position Rating
(Amps)
Starter solenoid, dip and
main beam headlights
120
Ignition switch main feed,
tail lights, number plate
light, side lights, fuel
pump
210
Turn signals, brake light,
horn
310
Not used
4
Not used
5
Accessory socket, heated
grips
610
Cooling fan 7 15
Engine management
system
810
Alarm, diagnostic
connector, instruments
910
GPS 10 2
