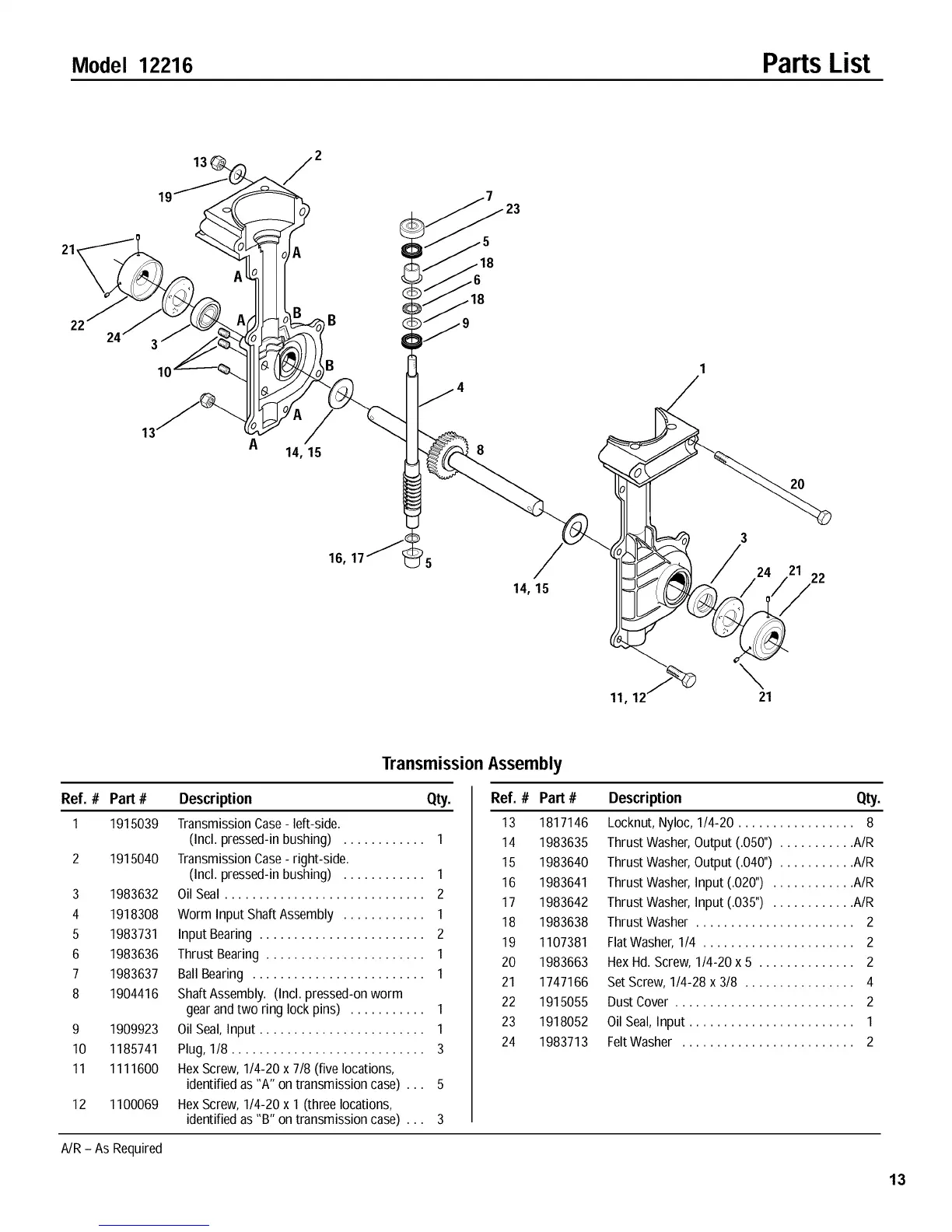

Model 12216 Parts List
20
14, 15
22
\
21
Transmission Assembly
Ref. # Part#
1 1915039
3
4
5
6
7
8
1915040
1983632
1918308
1983731
1983636
1983637
1904416
9 1909923
10 1185741
11 1111600
12 1100069
Description Qty.
Transmission Case - left-side.
(Incl. pressed-in bushing) ............ 1
Transmission Case - right-side.
(Incl. pressed-in bushing) ............ 1
Oil Seal ............................. 2
Worm Input Shaft Assembly ............ 1
Input Bearing ........................ 2
Thrust Bearing ....................... 1
Ball Bearing ......................... 1
ShaftAssembly. (Incl. pressed-on worm
gear and two ring lock pins) ........... 1
Oil Seal,Input ........................ 1
Plug, 1/8 ............................ 3
Hex Screw,1/4-20 x 7/8 (five locations,
identified as"A" on transmission case) ... 5
Hex Screw,1/4-20 x 1 (three locations,
identified as"B" on transmission case) ... 3
Ref.
13
14
15
16
17
18
19
20
21
22
23
24
Part #
1817146
1983635
1983640
1983641
1983642
1983638
1107381
1983663
1747166
1915055
1918052
1983713
Description Qty.
Locknut,Nyloc, 1/4-20 ................. 8
Thrust Washer,Output (.050") ........... AIR
Thrust Washer,Output (.040") ........... AIR
Thrust Washer,Input (.020") ............ AIR
Thrust Washer,Input (.035") ............ AIR
Thrust Washer ....................... 2
FlatWasher, 1/4 ...................... 2
Hex Hd.Screw, 1/4-20 x 5 .............. 2
SetScrew, 1/4-28 x 3/8 ................ 4
Dust Cover .......................... 2
Oil Seal,Input ........................ 1
FeltWasher ......................... 2
A/R - As Required
13
