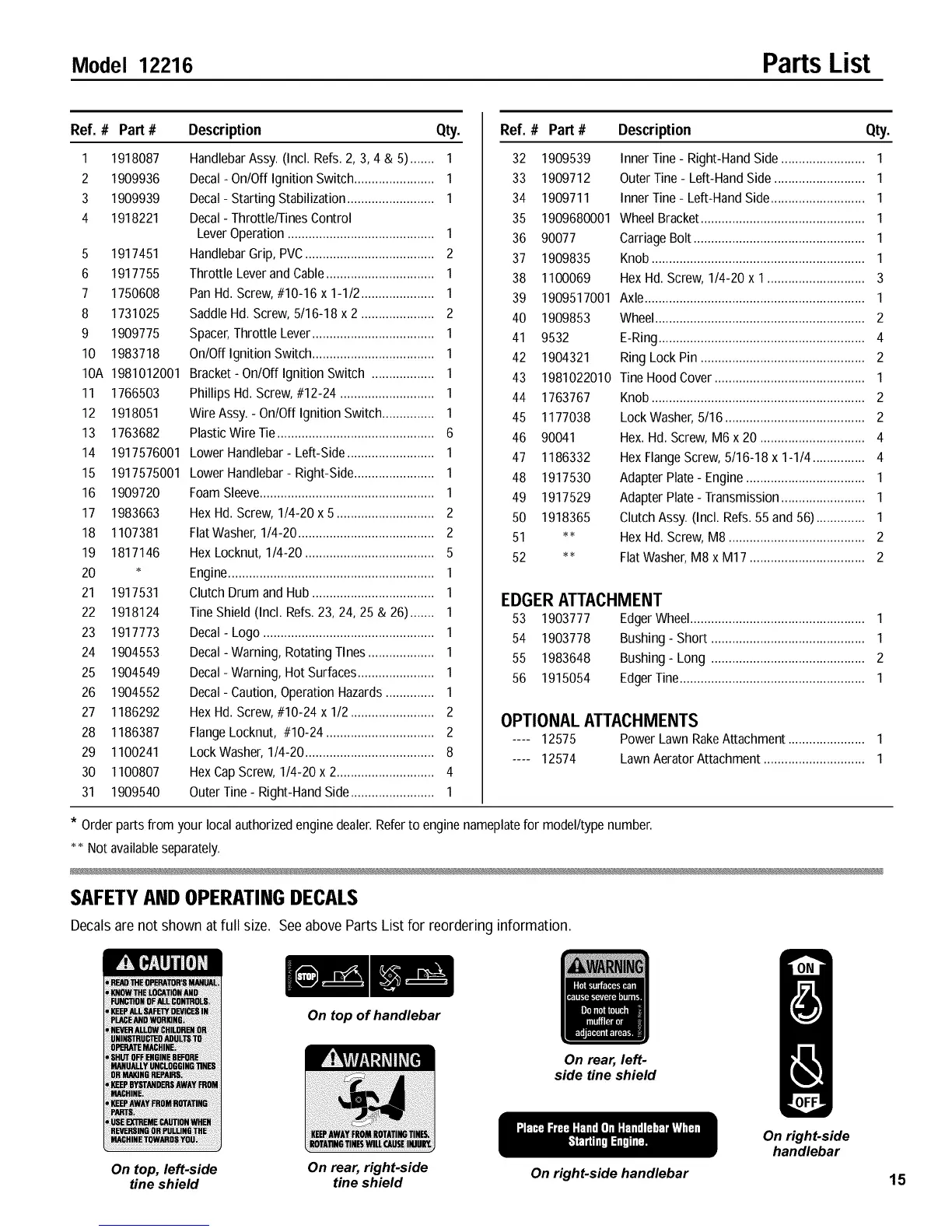

Model 12216 Parts List
Ref. # Part#
1
2
3
4
1918087
1909936
1909939
1918221
5 1917451
6 1917755
7 1750608
8 1731025
9 1909775
10 1983718
10A 1981012001
11 1766503
12 1918051
13 1763682
14 1917576001
15 1917575001
16 1909720
17 1983663
18 1107381
19 1817146
20 *
21 1917531
22 1918124
23 1917773
24 1904553
25 1904549
26 1904552
27 1186292
28 1186387
29 1100241
30 1100807
31 1909540
Description Qty.
HandlebarAssy. (Incl. Refs. 2, 3, 4 & 5) ....... 1
Decal - On/Off Ignition Switch ....................... 1
Decal- Starting Stabilization......................... 1
Decal- Throttle/Tines Control
Lever Operation .......................................... 1
HandlebarGrip, PVC..................................... 2
Throttle Leverand Cable............................... 1
Pan Hd.Screw, #10-16 x 1-1/2 ..................... 1
Saddle Hd. Screw, 5/16-18 x 2 ..................... 2
Spacer, Throttle Lever................................... 1
On/Off Ignition Switch................................... 1
Bracket- On/Off Ignition Switch .................. 1
Phillips Hd. Screw, #12-24 ........................... 1
Wire Assy. - On/Off Ignition Switch ............... 1
Plastic Wire Tie............................................. 6
Lower Handlebar- Left-Side......................... 1
Lower Handlebar- Right-Side....................... 1
FoamSleeve.................................................. 1
Hex Hd.Screw, 1/4-20 x 5............................ 2
FlatWasher,1/4-20 ....................................... 2
Hex Locknut, 1/4-20 ..................................... 5
Engine........................................................... 1
Clutch Drum and Hub ................................... 1
Tine Shield (Incl. Refs. 23, 24, 25 & 26) ....... 1
Decal - Logo ................................................. 1
Decal - Warning, Rotating Tines ................... 1
Decal- Warning, Hot Surfaces...................... 1
Decal- Caution, Operation Hazards.............. 1
Hex Hd.Screw, #10-24 x 1/2 ........................ 2
FlangeLocknut, #10-24 ............................... 2
LockWasher, 1/4-20 ..................................... 8
HexCapScrew, 1/4-20 x 2............................ 4
Outer Tine - Right-Hand Side........................ 1
Ref. # Part#
32 1909539
33 1909712
34 1909711
35 1909680001
36 90077
37 1909835
38 1100069
39 1909517001
40 1909853
41 9532
42 1904321
43 1981022010
44 1763767
45 1177038
46 90041
47 1186332
48 1917530
49 1917529
50 1918365
51 **
52 **
Description Qty.
Inner Tine- Right-Hand Side ........................ 1
OuterTine- Left-HandSide .......................... 1
Inner Tine- Left-HandSide........................... 1
WheelBracket............................................... 1
CarriageBolt................................................. 1
Knob ............................................................. 1
Hex Hd.Screw, 1/4-20 x 1 ............................ 3
Axle............................................................... 1
Wheel............................................................ 2
E-Ring........................................................... 4
RingLock Pin ............................................... 2
Tine Hood Cover ........................................... 1
Knob ............................................................. 2
Lock Washer,5/16 ........................................ 2
Hex. Hd. Screw, M6 x 20 .............................. 4
Hex FlangeScrew, 5/16-18 x 1-1/4 ............... 4
Adapter Plate - Engine.................................. 1
Adapter Plate - Transmission ........................ 1
Clutch Assy. (Incl. Refs. 55 and 56) .............. 1
Hex Hd.Screw, M8 ....................................... 2
FlatWasher,M8 x M17 ................................. 2
EDGERATTACHMENT
53 1903777 EdgerWheel.................................................. 1
54 1903778 Bushing-Short ............................................ 1
55 1983648 Bushing-Long ............................................ 2
56 1915054 EdgerTine ..................................................... 1
OPTIONAL ATTACHMENTS
.... 12575 Power Lawn RakeAttachment ...................... 1
.... 12574 Lawn Aerator Attachment ............................. 1
* Order parts from your local authorized engine dealer.Referto engine nameplate for model/type number.
** Not availableseparately.
SAFETYANDOPERATINGDECALS
Decals are not shown at full size. See above Parts List for reordering information.
On top of handlebar
On rear, left-
side tine shield
On right-side
handlebar
On top, left-side On rear, right-side On right-side handlebar
tine shield tine shield 15
