Unitech PA500 User Manual

4
Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

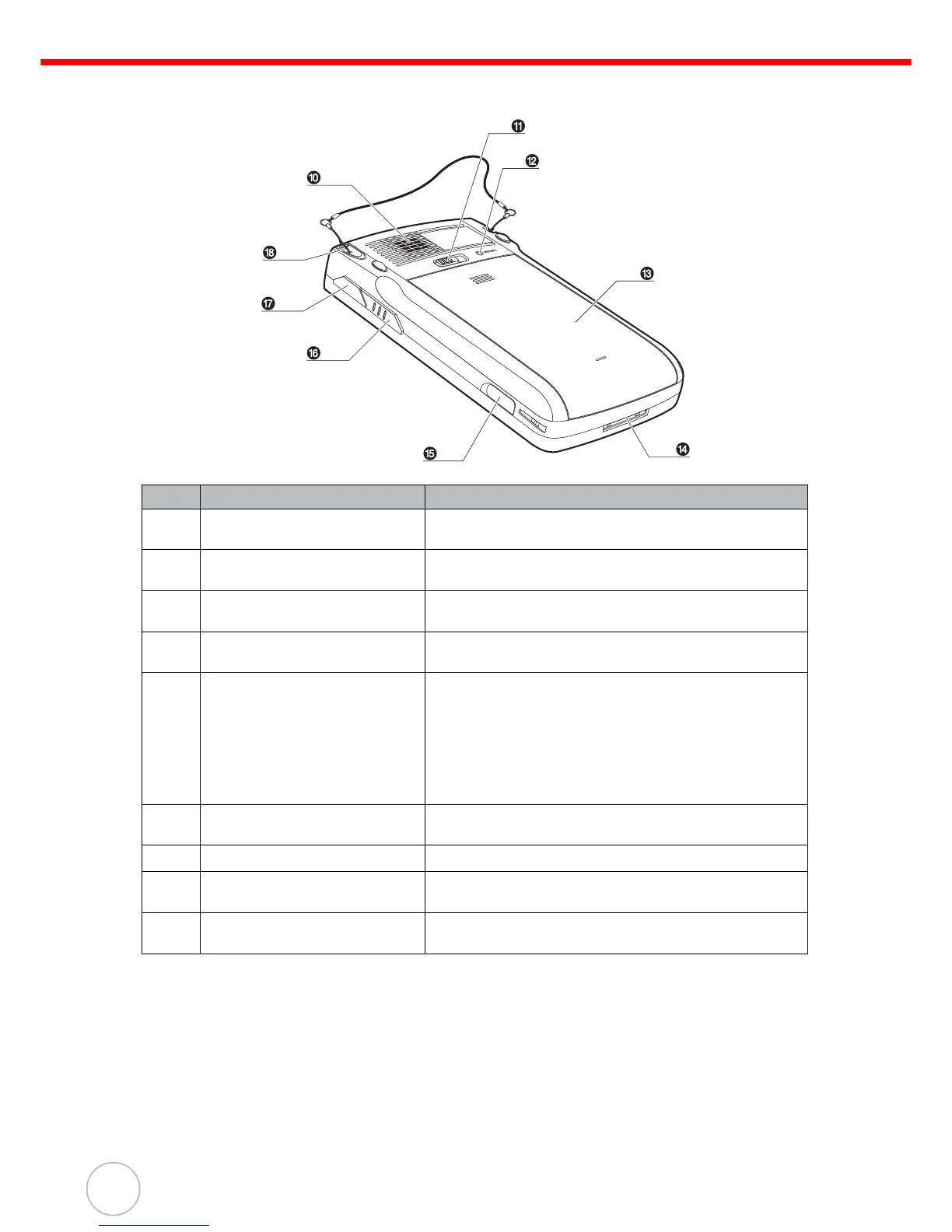

Back View
No. Component Description
10.
Speaker When speaker phone is active,
sounds are emitted here.
11.
Battery release latch Slide toward the right side of the device and hold firmly,
then detach the battery from its bay.
12.
Reset button Press the end of the stylus into the button to reset your
device.
13.
Main battery Removable and rechargeable 3.7 V, 2200 mAh battery
pack.
14.
Universal connector Connects your device to a USB charging cable, which in
turn connects to the computer’s USB port and through
the AC adapter to an electrical outlet. This allows you to
recharge your device and perform an ActiveSync
operation.
You can also use it to connect a peripheral hardware,
such as a docking station, to your device.
15.
Earphone jack Lift the rubber cover from the earphone jack and connect
an audio line-out device (earphone or headphone).
16.
Right scanner trigger key Press to activate the barcode laser scanner.
17.
Infrared (IR) port Uses infrared technology to transmit and receive data
from other IR-enabled devices.
18.
Stylus To use the stylus, remove it from its holder and hold it the
same way as you hold a pen or pencil.

Unitech PA500 Specifications

System Memory

SDRAM	64 MB
Flash ROM	64 MB

Display

display resolution	240x320 QVGA
display type	Color Transflective TFT
touch screen	yes

Laser Bar Code Scanner

scan rate	104 scans/sec ± 12 scans/sec
scan angle default	47°±3°
scan angle reduced	35°±3°

Power

main battery voltage	3.7 V
main battery capacity	2200 mAh
rechargeable time	3.5 hours

Operating Environment

operating temperature	32°F to 122°F (0°C to 50°C)
storage temperature	-4°F to 140°F (-20°C to 60°C)
relative humidity	5% ~ 95% (non-condensing)

Weight and Dimensions

weight with battery and scan engine	Under 213 g
length	126 mm
height	23 mm
