Unitech PA500 User Manual

Chapter 2 Using the Hardware
17

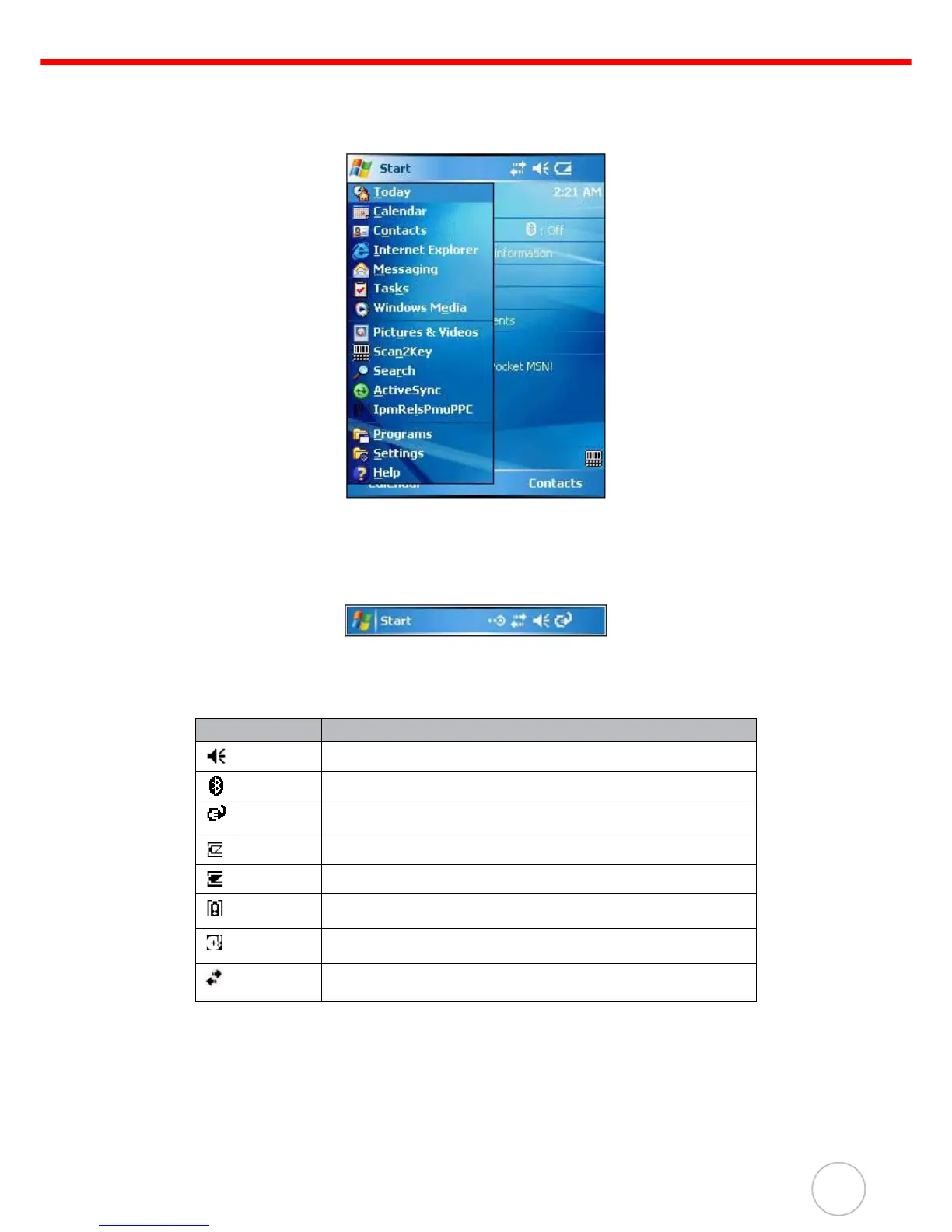

Start Menu
The Start menu displays a list of active programs, as well as options to view the Programs, Settings and
Help screens etc.
Navigation Bar
The navigation bar is located at the top of the screen. It displays the notification icons for system alarms and
reminders, status icons for the data connectivity, battery charge, and volume control.
Status Icons
The table below describes some of the status icons you may see on your device.
For more detailed description of the status icons, tap Start → Help.
Status Icon Description
Turns all sounds on and off.
Indicates Bluetooth wireless technology is on.
Indicates that the main battery is charging. The PA500 is either plugged-in via the
AC adapter or docking station.
Indicates the main battery is fully charged.
Indicates the main battery is low and needs to be charged.
Indicates the main battery is very low. Stop device operation and charge the
device immediately.
Indicates the backup battery is very low. Stop device operation and charge the
device immediately.
Indicates device is synchronized with a computer.
Wireless and Bluetooth connection is activated.

Unitech PA500 Specifications

System Memory

SDRAM	64 MB
Flash ROM	64 MB

Display

display resolution	240x320 QVGA
display type	Color Transflective TFT
touch screen	yes

Laser Bar Code Scanner

scan rate	104 scans/sec ± 12 scans/sec
scan angle default	47°±3°
scan angle reduced	35°±3°

Power

main battery voltage	3.7 V
main battery capacity	2200 mAh
rechargeable time	3.5 hours

Operating Environment

operating temperature	32°F to 122°F (0°C to 50°C)
storage temperature	-4°F to 140°F (-20°C to 60°C)
relative humidity	5% ~ 95% (non-condensing)

Weight and Dimensions

weight with battery and scan engine	Under 213 g
length	126 mm
height	23 mm
