Unitech PA600 Getting Started

Chapter 5 Advanced Settings
43
Adjusting Backlight Setting
The PA600’s LCD backlight consumes a large amount of battery power, only use this
function if it is necessary.
Change backlight settings through the following:

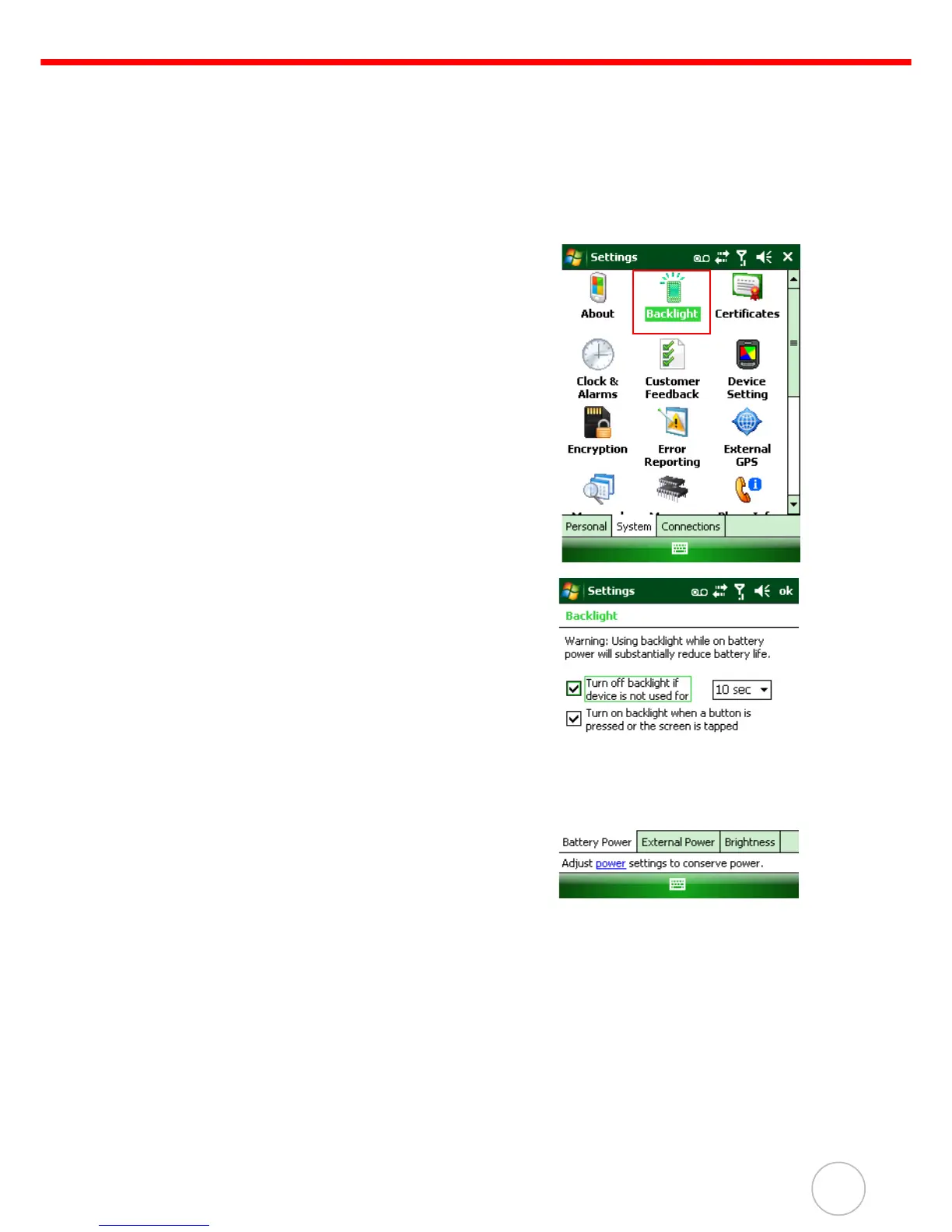

1. Tap Start → Settings → System.
2. Tap Backlight.
3. The Backlight screen appears.
Do any of the following:
– In the Battery Power tab, select Turn off
backlight if device is not used for, and
select the amount of time before the PA600
turns off from the drop down menu (while
connected to a battery).
– In the External Power tab, select Turn off
backlight if device is not used for, and
choose the amount of time before the unit
turns off the backlight from the drop down
menu (while connected to an external
power source).
– Select Turn on backlight when to activate
the backlight when a button is pressed or
the screen is tapped.

Unitech PA600 Specifications

System Memory

SDRAM memory	64 MB
Flash ROM	128 MB
Flash ROM with WWAN	320 MB

Display

display resolution	240x320 QVGA
display type	Color Transflective TFT
touch screen	Yes

Power

main battery	3.7V 1950mAh Li-Ion Battery Pack
backup battery	One Rechargeable Ni-MH Backup Battery
power source	Main Battery

Operating Environment

operating temperature	32ºF to 122ºF (0ºC to 50ºC)
storage temperature	-4ºF to 140ºF (-20ºC to 60ºC)
relative humidity	5% ~ 95% (non-condensing)

Weight and Dimensions

weight	290g with Battery & Scan Engine
length	149.5 mm
height	26.6 mm
