Page 8 107098-002 TM12 - Operator Manual
Transporting the Machine
T RANSPORTING THE M ACHINE
B Y C RANE
DANGER
! !
See specifications for weight of machine and be certain that crane is of adequate capacity to lift the
machine.
Secure the straps to chassis lifting/tie down points only.
B Y F ORKLIFT
DANGER
! !
Forklifting is for transport only.
See specifications for weight of machine and be certain that forklift is of adequate capacity to lift the
machine.

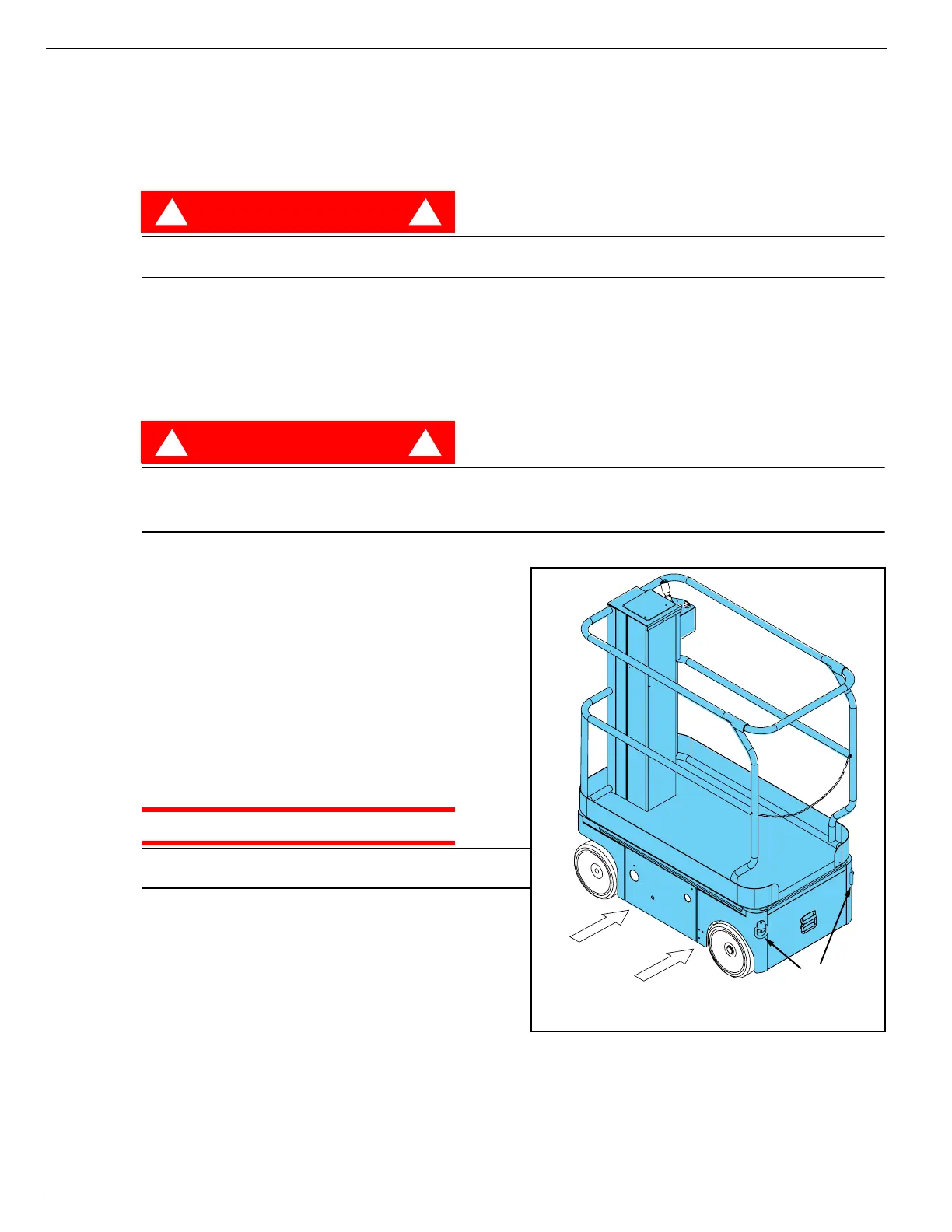

Figure 6:
Transporting the Machine
Forklift from the side by lifting under the chassis.
B Y T RUCK
1. Maneuver the machine into transport position and
chock wheels.
2. Secure the machine to the transport vehicle with
chains or straps of adequate load capacity
attached to the chassis lifting/tie down points.
CAUTION
Overtightening chains or straps attached to the Tie
Down lugs may result in damage to the machine
Forklift From
Side
Typical Tie Down/Lift Points
(D-Rings)
