Chapter 6 (Power Transmission)
Gearbox (Solo Motorcycle)
The gearbox is of the four speed design equipped with constant
meshed gears and gear-shift sliding sleeves. The principal parts
included in the gearbox (Fig. 18) are the split box with covers, the
clutch shaft and main shaft with gears and shift sleeves, the gear
shift mechanism and the kick starter.

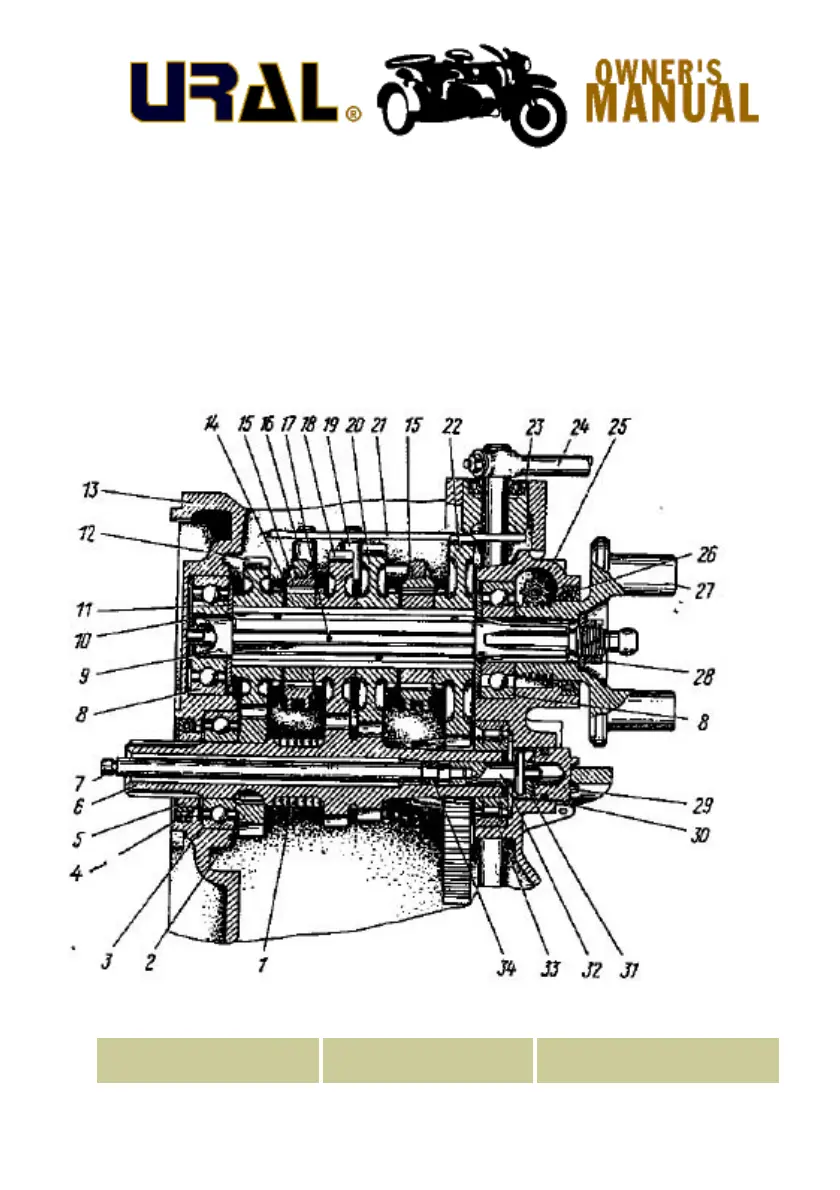

Figure 18. Solo Gearbox (section through shafts)
1 - Starter spring
11 - Oil washer of main
shaft
21 - Gear shift quadrant
2 - Gear IV of clutch
spring
12 - Gear IV of main
shaft
22 - Gear I of main shaft
To Next Page
