Installation manual
11
1.6. X-ray generator
z High frequency generator, constant potential, micro processor controlled
z Ripple < 4%
z Inverter frequency 36 kHz push-pull
z Tube type D-051, stationary anode type
z Nominal power below than 1.3 KW
z Tube voltage 50 ~ 80 kV (adjustable by 1 kV)
z Tube current 2 ~ 10 mA (adjustable by 1 mA)
z High voltage DC
z Exposure time
z Cooling by force, one minute for cooling / Protect ≧ 50℃
1.7. X-ray tube(Toshiba D-051)
z Focal spot size 0.35*0.5 mm
z Heat storage capacity 30 kJ (40 Khu)
z Total filtration 2.8 mm Al eq.

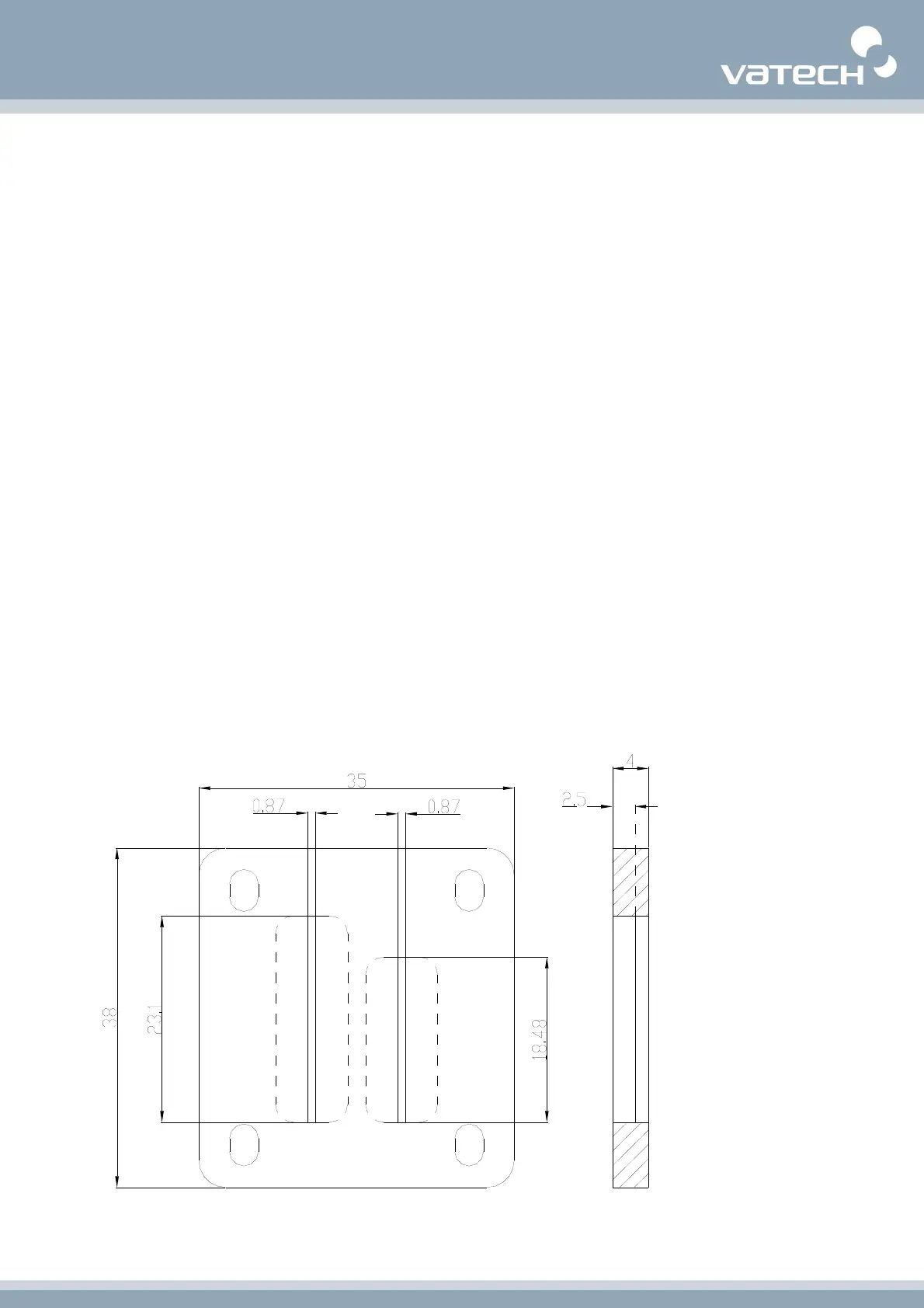

1.8. Collimator
