Appendix 2 Installation Instruction Of Battery Rack 23
NetSure 531 A41, NetSure 531 A91 Subrack Power system User Manual
Appendix 2 Installation Instruction Of Battery Rack
1. Installation Instruction Of Two-Layer And Four-Layer Battery Rack
Packing list
Accessory 1 Accessory 2 Accessory 3 Accessory 4 Accessory 5

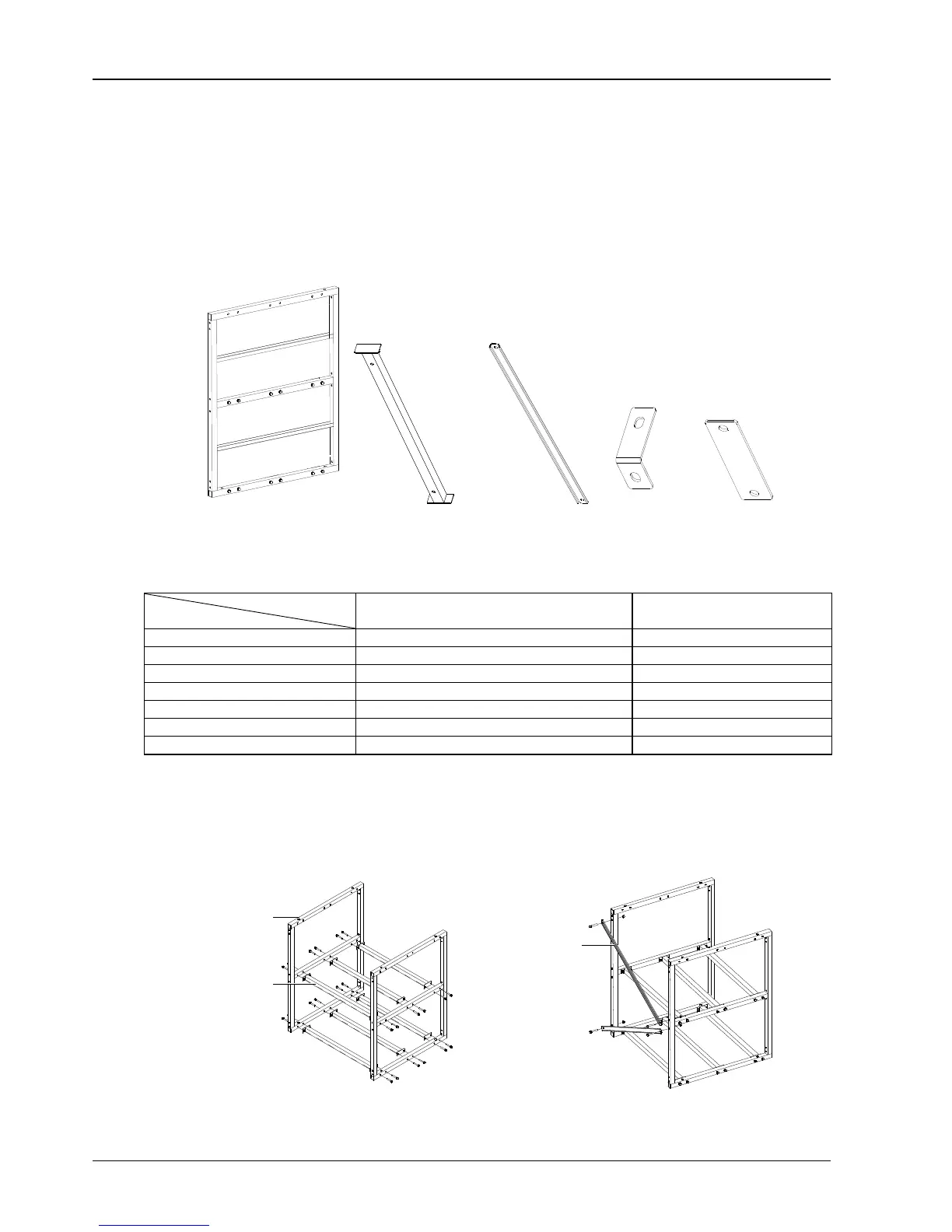

Figure 1 Accessory
Table 2 Packing list of the battery rack
Battery rack
Accessory
Two-layer battery rack
Four-layer battery rack
Accessory 1
2
4
Accessory 2
8
14
Accessory 3
2
4
Accessory 4
2
2
Accessory 5
0
2
Expansion bolt
4 pieces
4 pieces
Fastener
1 set
1 set
Installation procedures
1. Installation procedures of two-layer battery rack
1) Install accessory 1 and accessory 2 according to Figure 2 (a).
2) Install accessory 3 according to Figure 2 (b).
Accessory 1
Accessory 2
Accessory 3
(a) (b)
Figure 2 Installation procedure of accessory 1 ~ accessory 3
