ASSEMBLY
Stage
Blanking
Plate
Stage
Glass
1
Fa
n
Column
Securing Screws
Securing
Screw
Connector

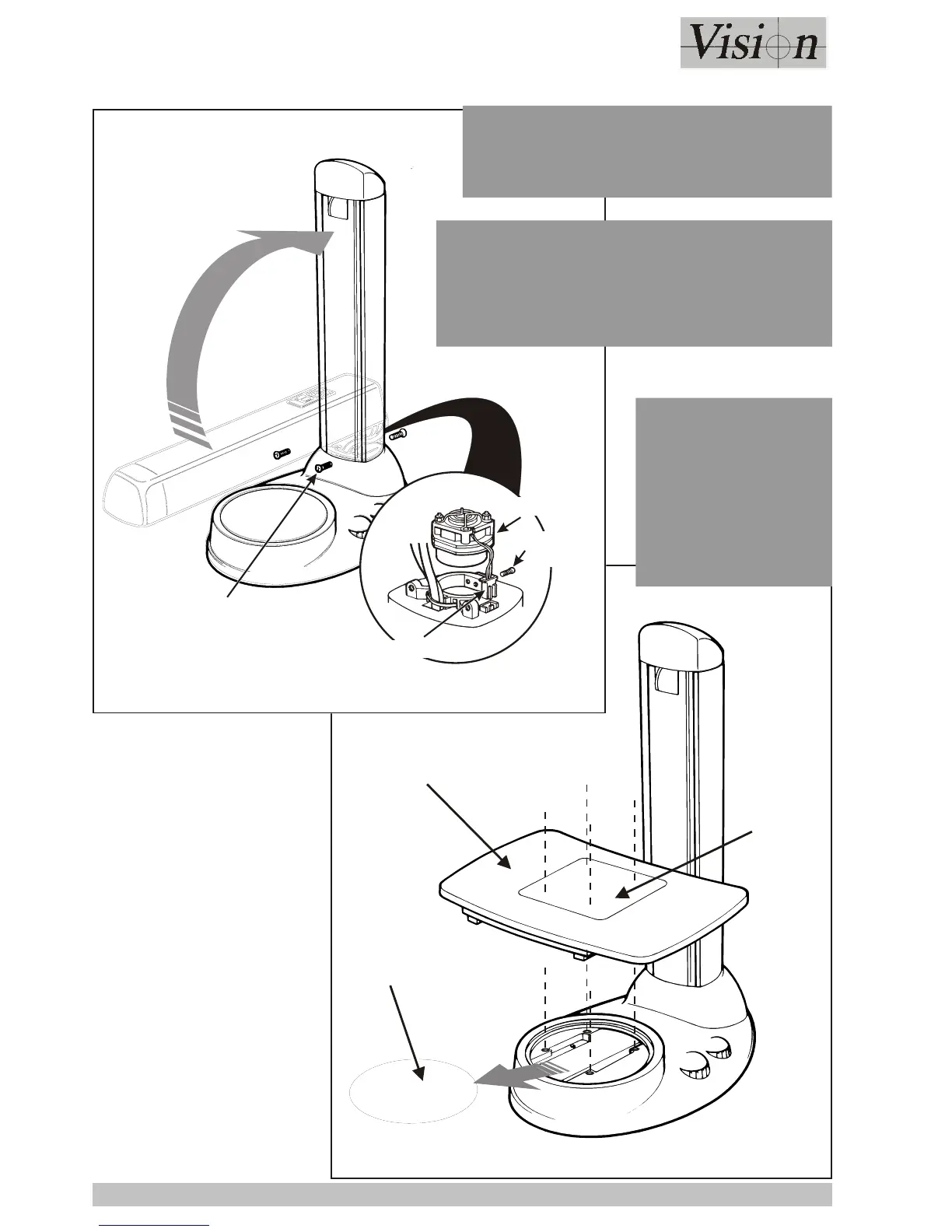

COLUMN TO STAND
ASSEMBLY
Insert the Fan, connect it and lock it in position
with its securing screw
(see inset 1).
Raise the column into the upright position and
secure it with the four colu
mn securing s
crews.
Remove the Blanking
Plate.
Remove the stage
glass and lower the
Stage onto the Stand.
Secure it with the 4
bolts supplied.
9
11
