ASSEMBLY
ASSEMBLY
Page 3
ASSEMBLY
3
4
Securing Bolts
& Pressure Cups
Bench Drilling Template
9mm Dia.
105mm Dia.
90.9mm
1

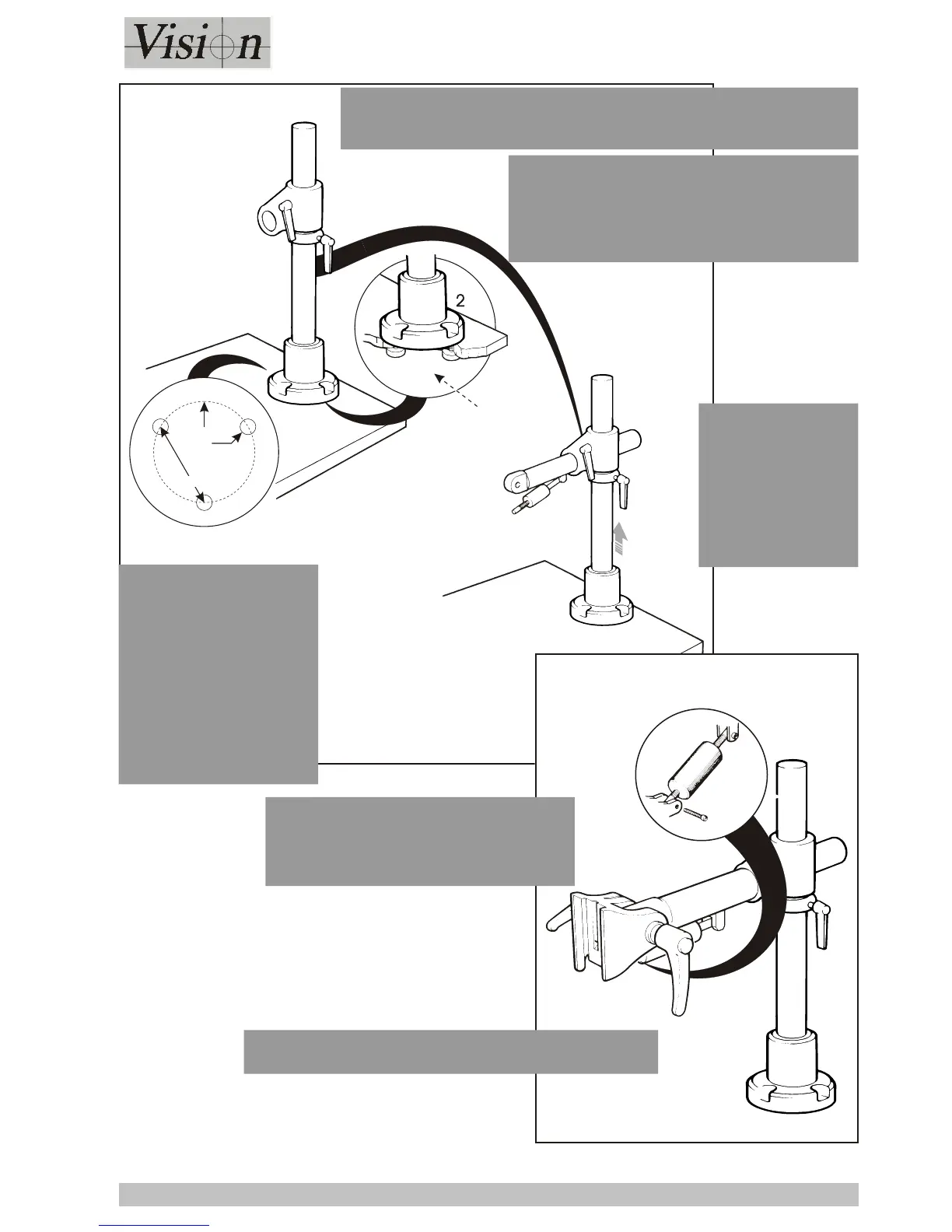

PLATFORM/BENCH ASSEMBLY
If bench mounting, drill holes in the
bench using the template shown 1 left.
Allow room for the horizontal support bar
to protrude behind the Lynx.
Feed the stand
securing bolts up
through the
pressure cups
and secure into
the stand base
(see 2 left).
Attach the horizontal
support bar to the
vertical bar as shown
in 3 above.
Slide the securing
collar up and lock it
into the desired
position (see 4
above).
HEAD TO TUBULAR
SUPPORT ASSEMBLY
Attach clamps to the horizontal post (see right).
