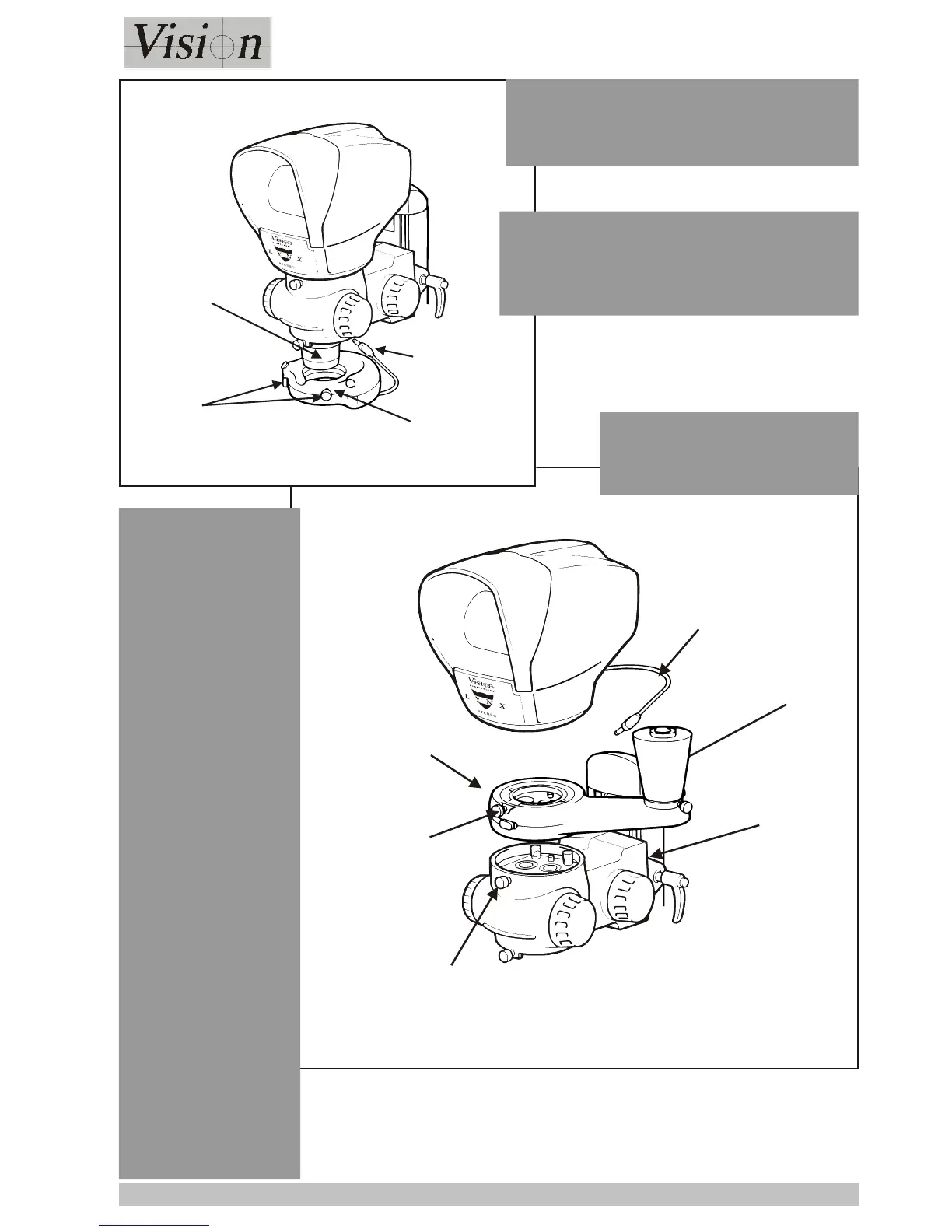

ASSEMBLY
Head
Connector
Photographic
Attachment
Camera
Interface
Head
Socket
Securing Screw
Head
Securing Screw
Remove the Head.
Place the
Photographic
Attachment
Assembly into
position and tighten
the securing screw.
Replace the head
on to the assembly
and tighten the
Head Securing
Screw.
Attach the
appropriate Camera
interface to the
Photographic
Attachment and
tighten the securing
screws.
NOTE
Adapters for the
Polaroid, 35mm
and CCTV/Digital
cameras are
different.
The camera
attaches to the
interface.
PHOTOGRAPHIC
ATTACHMENTS
Objective Lens
Spot Illuminator
Connector
Spot
Illuminator
Securing
Screws
Place the Spot Illuminator into position and
tighten the securing screws. Insert the
illuminator’s connector into the socket
underneath the Zoom/Focus Assembly.
ATTACHING
SPOT ILLUMINATOR
